Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 14 DFG-100/200
Ref. Part
No. No. Description
1 24434 Control, Intellitouch II
2 30857 Probe, Temperature RTD 500 OHM
3 19619 Rocker Switch, DPST, Black On/Off
4 19620 Rocker Switch, DPST, Black
Momentary, Lights
5 18587 Relay, 3PDT, 120V w/ Bracket Qty 2
24721 Wiring Harness front Intellitouch II
7 22787 Decal, Control Intellitouch II
24626 Cover, Control S/S
24461 Product Strip
8 20355 Transformer, 115V to 24V
3574 Terminal Block, (Power- 4 screws)
30503 Terminal Block, (1/4" spade con.)
9 20348 Spark Box, Nat & LP
21134 Axial Fan, Low Velocity, 115V, 60 HZ (Qty 2)
24474 Module Assy, Intellitouch II 33 Key
20009 Harness, Rear Connecting for Module 2 SP
NOTE: Modules include EVERYTHING pictured
above, except probe.
31703 Knob, Cntrl.
19621 Rocker Switch, DPDT, Black
5279 Thermostat Back-Up KX-38-36
22726 Decal, Thermostat/Switch for thermostat behind panel
6 31293 Decal, Intellitouch II logo for Back-Up Access

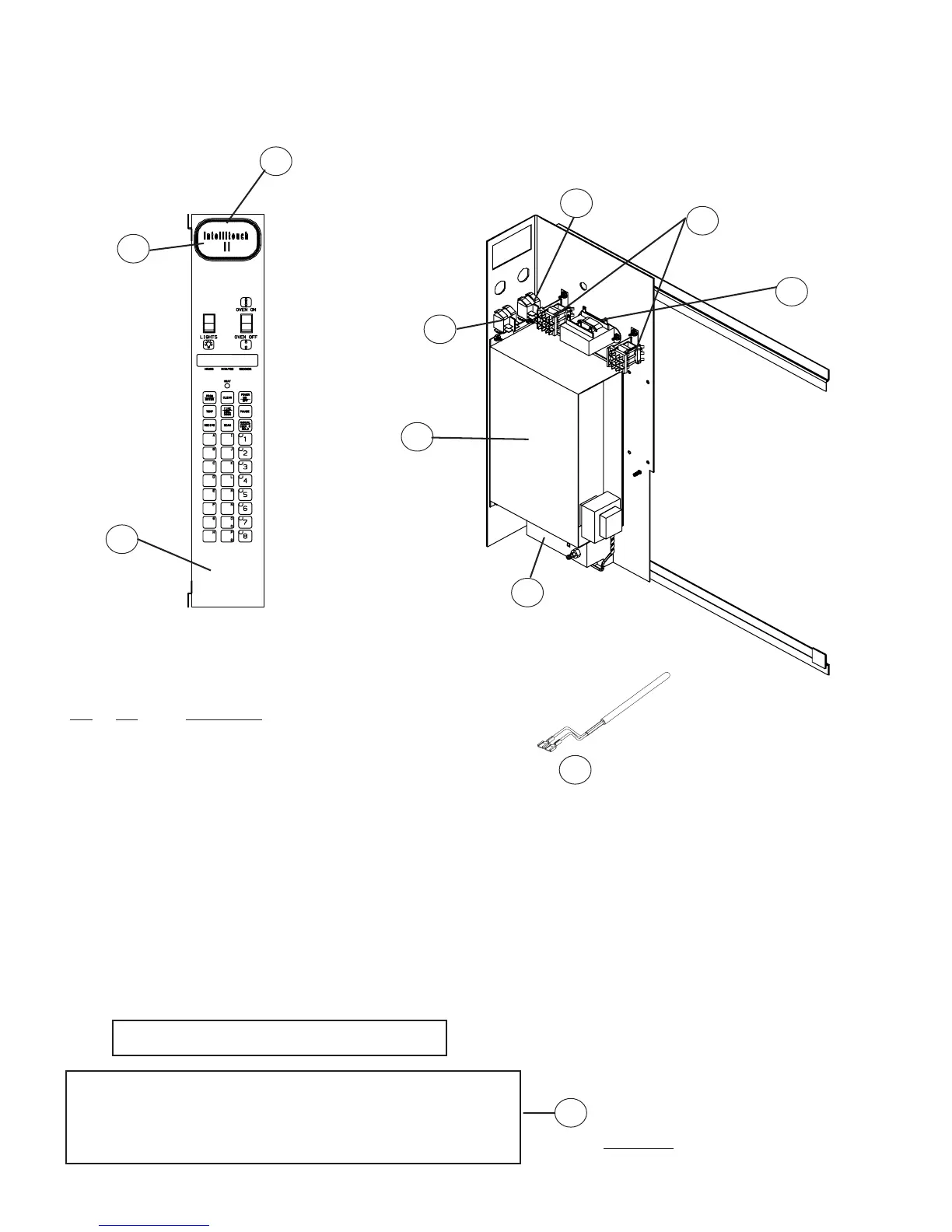

INTELLITOUCH II CONTROLS
33 KEYS
19619
Rocker Switch,
Black
3
19620
Rocker Switch,
Mom. Lights
4
18587
Relay, 3PDT,
120V
5
20355
Transformer
115V to 24V
8
24434
Control,
Intellitouch II
1
20348
Spark Box
Nat & LP
9
31293
Decal
Intellitouch II
for
"Back Up
Access"
6
22787
Decal
Intellitouch II
7
30857
Probe, RTD 500
Ohms
2
10
10
NOTE: ALL BACK UP
COMPONENTS ARE LOCATED
BEHIND THE DECAL #31293.
See NOTE
below.
