Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 15 DFG-100/200
IQ2 CONTROLS
21 KEYS
Ref. Part
No. No. Description
1 37035 Controller, IQ2
7 36403 Decal Only, IQ2 Control ( Before 07-20-2007)
50829 Decal Only, IQ2 Control ( After 07-20-2007)
33074 Probe
36295 Harness, Control
33072 Harness, Control 24V
2 19619 Switch Rocker
3 20355 Transformer, 115V to 24V
4 36297 Relay, 4PDT, 3A, 120V
5 33073 Board, Relay
20662 Plug Assy, quick disconnect
6 33922 Socket, Relay
20348 Spark Module
21134 Axial Fan, low velocity, 115V 60HZ (qty 2)
3574 Terminal Block, (Power- 4screws)
30503 Terminal Block, (1/4" spade con.)
36735 Module Assy (includes everything shown above, including probe)

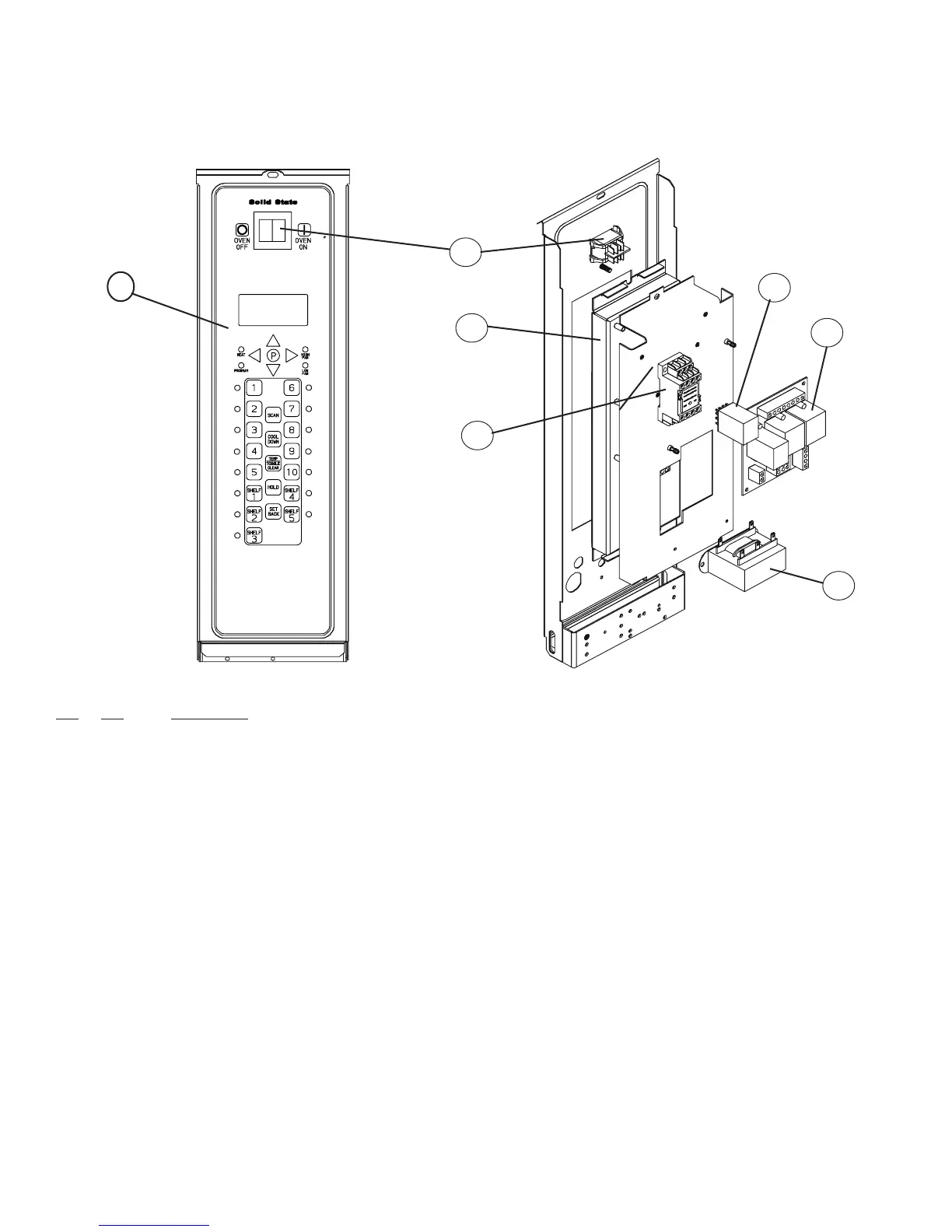

1
4
5
3
2
6
Controller, IQ2
Rocker Switch
Transformer
115V to 24V
Relay, 4PDT, 3A, 120V
Board, Relay
Socket, Relay
7
