Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 6 DFG-100/200

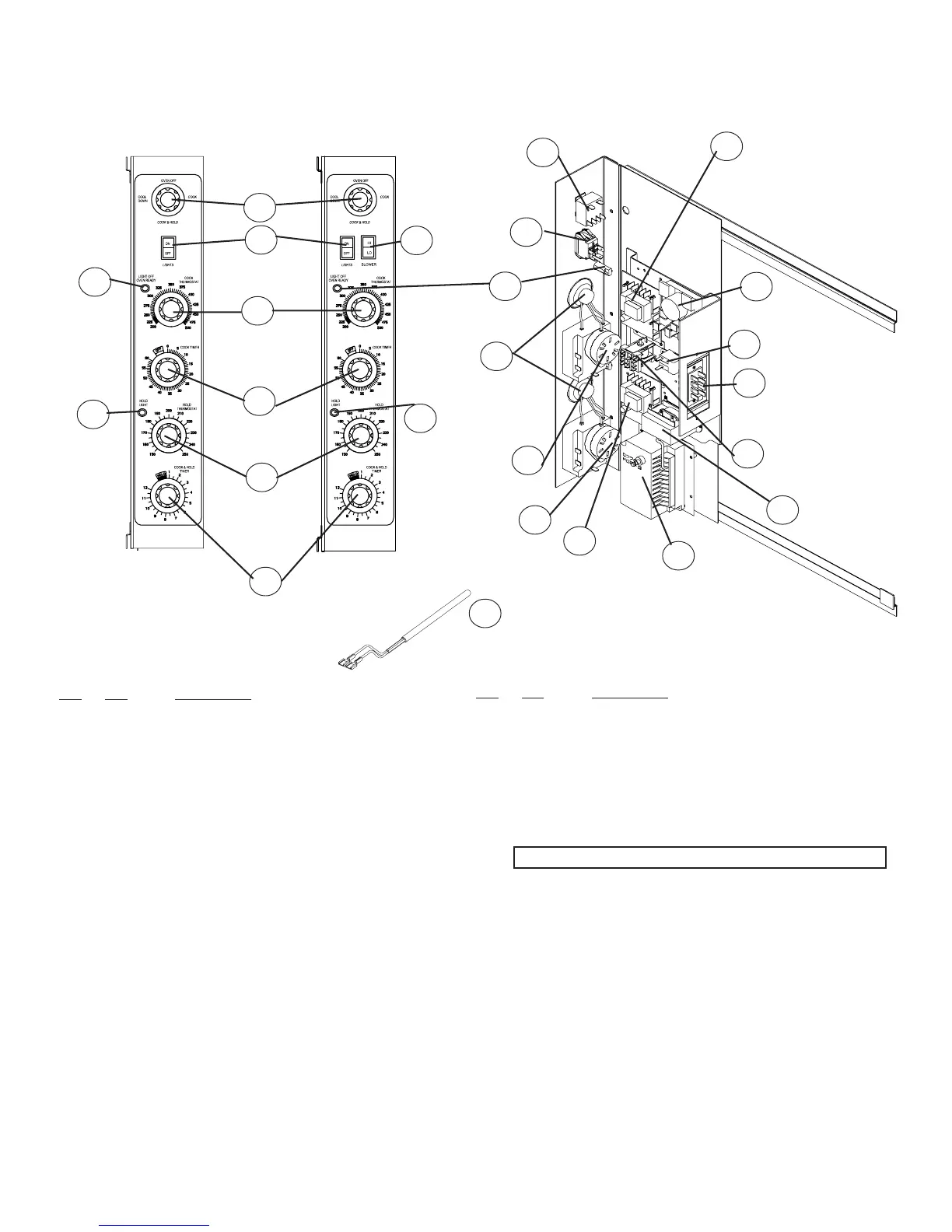

SOLID STATE INFINITE, COOK & HOLD CONTROLS - 1 & 2 SP
MANUFACTURED AFTER JULY 1986
Ref. Part
No. No. Description
12 20349 Buzzer, 120V
5 15709 Indicator Light, Amber, Round (Hold Only)
3 18265 Indicator Light, Red, Round (Cook Only)
4 16686 Knob, for timers
1 15934 Knob, for Potentiometers & Selector Switch
8 18225 Timer 60 min
9 17864 Timer, 12 Hour (After 4/19/85)
9 17988 Timer, Conversion, 12 hour w/Knob
(Before 4/19/85)
6 20347 Mode Selector Switch w/o Knob, 4 pos.
10 18578 Controller, Cook Temperature
17 20351 Controller, Hold Temperature (150-250°F)
7 18234 Potentiometer, Qty 2
2 6497 Rocker Switch, Lights SPST White
15 20355 Transformer, 115V to 24V
11 90043 Relay, Motor, DPDT, 120V, 30 Amp.
13 18587 Relay, 3PDT, 120V w/ Bracket
14 20662 Quick Disconnect, Plug Assy 1 SP only
90047 Socket, Quick Disconnect Plug Assy1 SP only
16326 Test Cord
16 20348 Spark Box, Nat & LP
3574 Terminal Block, (Power- 4 screws)
30503 Terminal Block, (1/4" spade con)
21134 Axial Fan, Low Velocity, 115V, 60 HZ Qty 2
18 20530 Rocker Switch, Blower 2 SP
23077 Capacitor, Electrolytic 2 SP only
19 18588 Probe, Temperature (for both controllers)
15934
Knob, Mode
Selector Switch
1
6497
Rocker Switch
2
18265
Indicator
Light
3
16686 Knob
60 min Timer
4
15709
Indicator
Light
5
15934 Knob
Potentiometer
1
15934 Knob
Potentiometer
Hold
1
16686
Knob, 12 hr Timer
4
20347
Mode Selector
Switch
6
6497
Switch, Rocker
2
18265
Indicator Light
3
18234
Potentiometer
7
18225
Timer, 60 min
8
17988
Timer, 12 hr
9
18578
Controller, S.S.
Manual
10
90043
Relay
11
20348
Spark Box
16
20351
Controller, Hold
17
20355
Transformer
115V to 24V
15
20662
Quick Disconnect
Plug Assy 1 SP only
14
20349
Buzzer
12
18587
Relay, 3PDT
13
Ref. Part
No. No. Description
18666 Wiring Harness, front 1 SP
20006 Wiring Harness, front 2 SP
18745 Control Panel, Porc. 1 SP
20007 Control Panel, Porc. 2 SP
NLA Module Assy, Cook & Hold S.S. Manual 1 SP
17482 Harness, Rear Connecting 1 SP
22056 Module Assy, Cook & Hold S.S. Manual 2 SP
21591 Harness, Rear Connecting 2 SP
NOTE: Modules include EVERYTHING pictured above
34689 Capacitor, snubber (attached to spark box)
15709
Indicator Light
5
20530
Switch
Rocker,
2 SP
18
1 SPEED
2 SPEED
18588
Probe, Temp.
19
Conversion From Hot Surface Ignition to Spark Ignition
18702 Natural
18703 LP
