Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 8 DFG-100/200

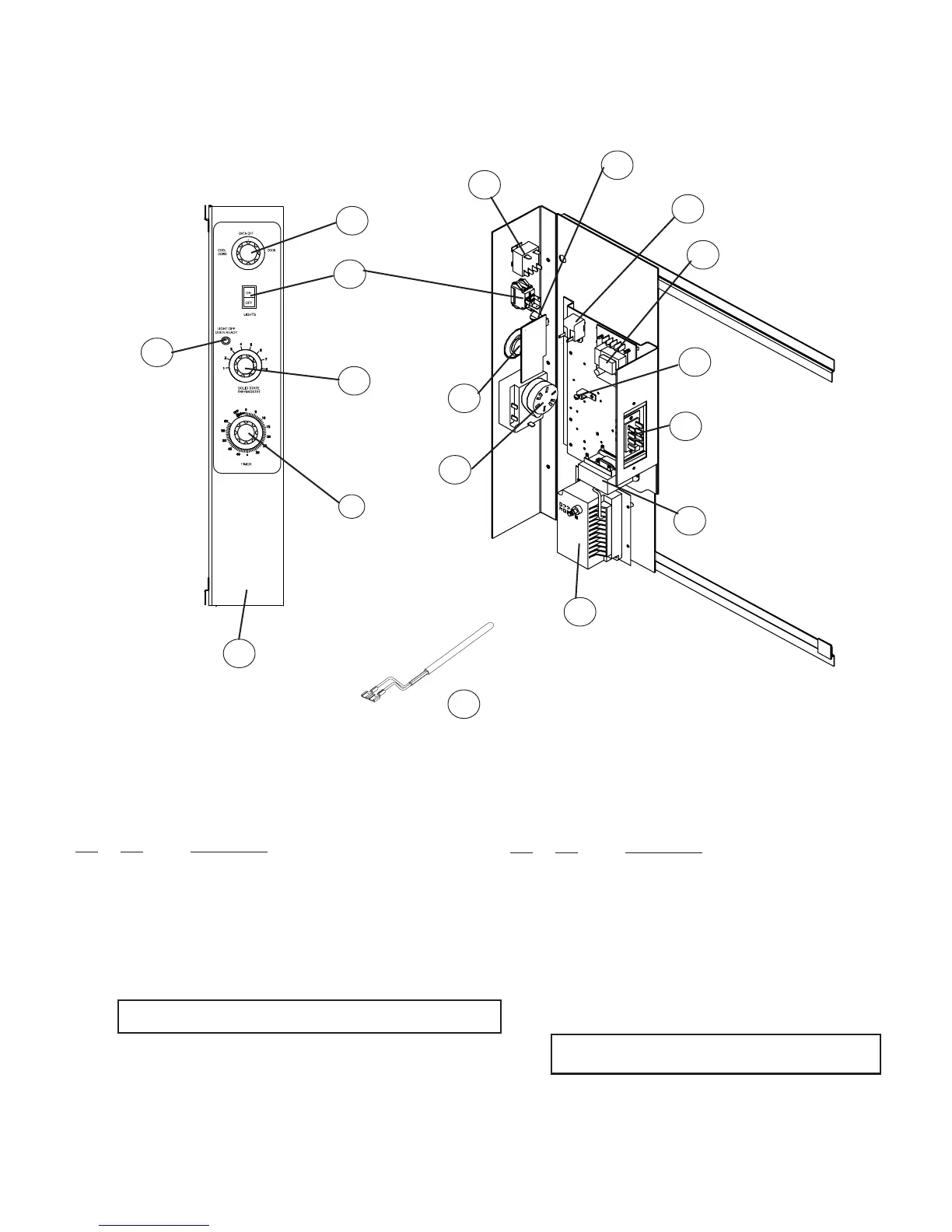

SOLID STATE 8 SET POINT CONTROLS 1 SP
Ref. Part
No. No. Description
1 15934 Knob, Replacement,
for 8 Pos Switch & Mode Selector Switch
2 6497 Rocker Switch, Lights
3 18265 Indicator Light, Red, Round 28V
4 16686 Knob, Timer
5 18286 Control Panel, Porcelain 1 SP
6 18868 Mode Selector Switch 1 SP
7 18577 Switch, 8 position potentiometer
NOTE: Specify 8 temps to program if other than standard.
STD: 275/300/325/350/375/400/425/450
8 18225 Timer, 60 Minute, 120V, 60 HZ
9 18578 Controller, Temperature, Solid State Board
15 18588 Probe, Temperature, Solid State
10 90034 Grounding Lug
3574 Terminal Block, (Power- 4 screws)
30503 Terminal Block, (1/4" spade con)
21134 Axial Fan, Low Velocity, 115V, 60 HZ Qty 2
1 SPEED
15934
Knob
Sel. Switch
1
18286
Control Panel,
1 SP
Porcelain
5
6497
Rocker Switch,
Lights
2
18868
Mode Selector
Switch
6
15934
Knob,
Potentiometer
1
16686
Knob,
Timer
4
18225
Timer,
Solid State
8
18577
8 pos. Switch
7
18265
Ind. Light
3
18265
Ind. Light
3
90034
Grounding Lug
10
20662
Quick Disconnect
Plug Assy
1 SP only
11
18578
Controller,
Temperature
9
20355
Transformer
115 to 24V
12
20348
Spark
Box
Nat & LP
13
Ref. Part
No. No. Description
11 20662 Quick Disconnect Plug Assy 1 SP only
90047 Socket, Quick Disconnect 1 SP only
16326 Test Cord
14 20349 Buzzer, 120V
12 20355 Transformer, 115 to 24V
13 20348 Spark Box Nat & LP
18357 Wiring Harness, front 8 Set Point & Inf. 1 SP
20018 Wiring Harness, front8 Set Point & Inf. 2 SP
18359 Module Assy, 8 Set Point, 1 SP
17482 Harness, Rear Connecting for Module 1SP
NOTE: Modules include EVERYTHING pictured
above, except probe.
15
20349
Buzzer,
120V
14
18588
Temperature
Probe
