Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 16 DFG-100/200
CH PRO 3
14 KEYS
Ref. Part
No. No. Description

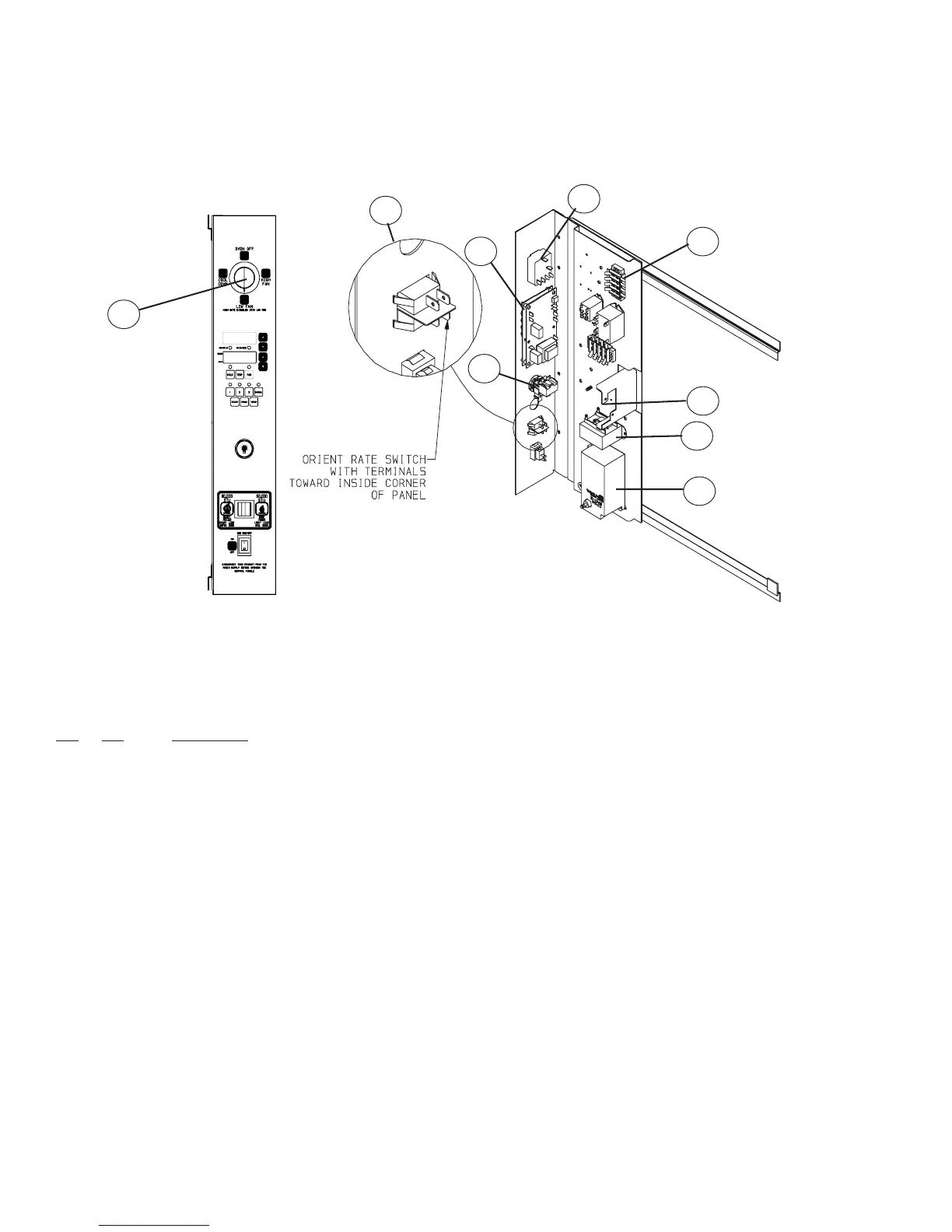

1 37087 Control, CH-102-BT
34473 Probe, RTD 1000 OHM 36"
2 20662 Plug Assy, quick disconnect (part not shown)
3 18868 Switch, Rotary 3 Position
3 20347 Switch, Rotary 4 Position
4 24684 Knob, mode
5 20355 Transformer, 115V to 24V
6 20348 Spark module, 24V
34405 Harness, wiring, 1sp
34408 Harness, wiring, 2sp
34512 Harness, fair-rite control
7 R8740 Rate Switch
8 18587 Relay and bracket assy, 3PDT 120 V
9 30662 Momentary Light Switch Kit
21134 Axial fax, Low Velocity, 115V 60HZ (qty 2)
3574 Terminal block, (Power- 4 screws)
30503 Terminal block, (1/4" spade con.)
34395 Module Assy, 1SP (includes everything shown, including probe)
34396 Module Assy, 2SP (includes everything shown, including probe)
1
3
4
5
6
7
8
2
9
Control, CH-102-BT
Plug Assy, quick disconnect
(part not shown)
Switch, Rotary
Knob, mode
Transformer, 115V to 24V
Spark module, 24V
Rate Switch
Relay and bracket assy, 3PDT 120 V
Momentary Light Switch Kit
