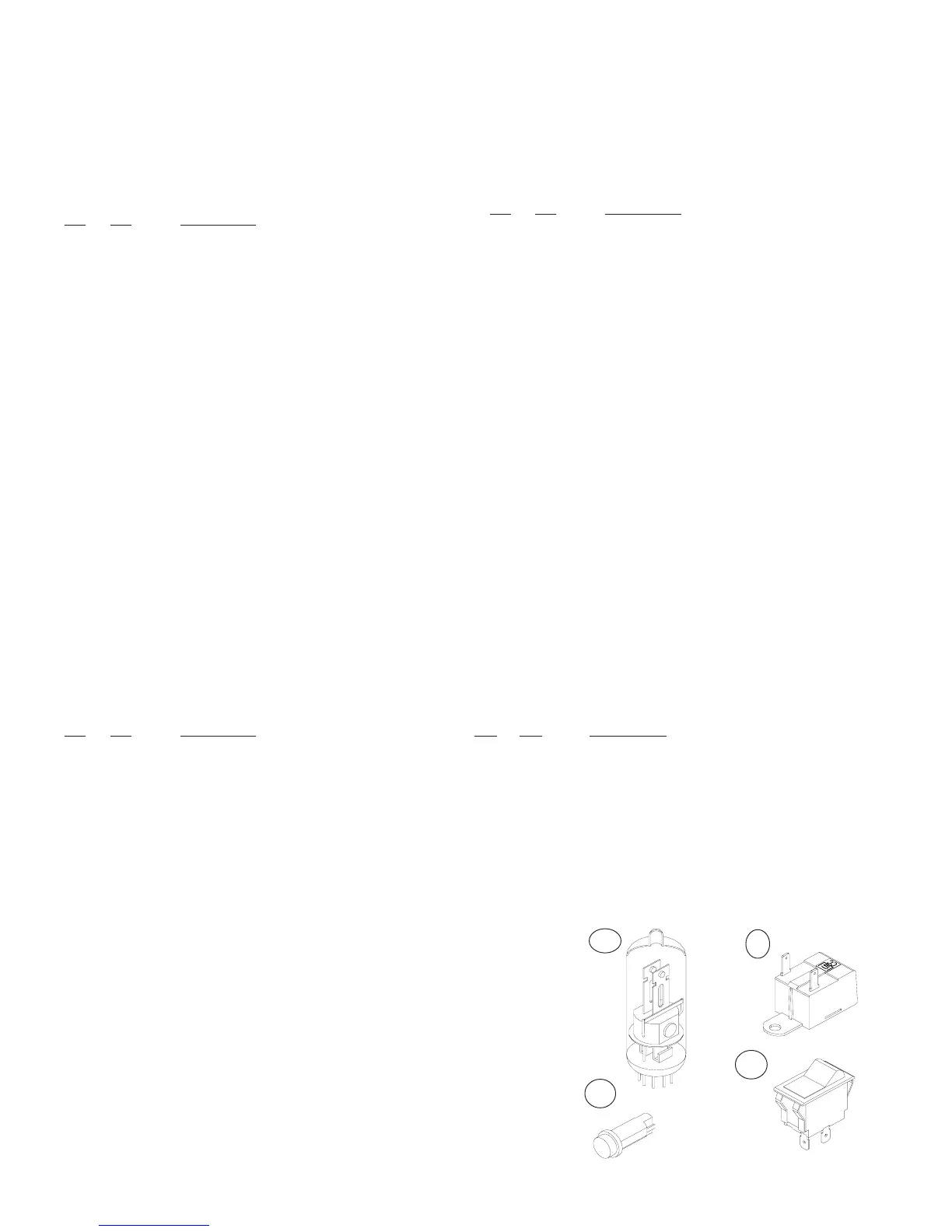

OCTOBER 16, 2007 17 DFG-100/200
1
2
4
3
Ref. Part
No. No. Description
11513 Thermostat, Cook Only
16393 Dial, Thermostat Cook
15365 Thermostat, Hold
16392 Dial, Fº, Thermostat Hold
3 15673 Indicator Light, Red, Round, Cook Only, 125V
15709 Indicator Light, Amber, Round, 125V
90043 Relay, DPDT
20662 Quick Disconnect Plug Assy 1 SP only
90047 Socket, Quick Disconnect 1 SP only
15934 Knob, Timers & Thermostat Qty 4
15956 Timer, 60 Minute, 120V 60hz
17864 Timer, 12 hour, 120V, 60hz
17988 Timer, Conversion, 12 hour w/Knob,
Units between 01/85 & 04/18/85
11427 Timer, 6 Hour, Mech. Switch
16498 Knob, 6 Hour Timer
90029 Terminal Block Units before 02/86
90062 Contactor, 35 AMP C & H Only, Units before 07/84
16372 Fuse 5 AMP
20658 Fuse Holder
1 16529 Thermal Delay Relay Tube, Only
21435 Base & Bracket, TDR Tube, C & H,
Ref. Part
No. No. Description
15934 Knob, Timers, Mode Selector
Switch & Thermostat Qty 3
15956 Timer, 60 Minute, 120V 60hz
16030 Knob, 60 Minute Timer
11427 Timer, 6 Hour, Mech. Switch
16498 Knob, 6 Hour Timer
18868 Mode Selector Switch, 3 position
16536 Thermostat, Cook KX-234-36, 140º-500º
16393 Dial, Thermostat
3 15673 Indicator Light, Red, Round, Cook Only, 125V
90029 Terminal Block Units before 02/86
17428 Wiring Harness, 115V, Cook Only
Units after 07/84
90048 Wiring Harness, 115V Units before 07/84
18357 Wiring Harness, front
90034 Grounding Lug
2 20349 Buzzer, 120V
5 6497 Rocker Switch, SPST White, Lights
6496 Rocker Switch, SPST, Blue, Blower
6498 Rocker Switch, SPDT, Red, Cool Down
20662 Quick Disconnect Plug Assy 1 SP
90047 Socket, Quick Disconnect 1 SP
16326 Test Cord
16372 Fuse 5 AMP
20658 Fuse Holder
Ref. Part
No. No. Description
17962 Base & Bracket, TDR Tube
Units between 07/84 & 02/86
16686 Knob, Mode Selector Switch Qty 1
20347 Mode Selector Switch, 4 position
17854 Wiring Harness, front C&H
90048 Wiring Harness, 115V Units before 7/84
17270 Control Panel, Porc. Units between 07/84 &
01/85
17904 Control Panel, Porc, C&H 1 SP
90034 Grounding Lug
2 20349 Buzzer, 120V
5 6497 Rocker Switch, SPST White, Lights
6496 Rocker Switch, SPST, Blue, Blower
6498 Rocker Switch, SPDT, Red, Cool Down
16476 Logo/Instruction Decal
Ref. Part
No. No. Description
1 16529 Thermal Delay Relay Tube, only
21437 Base & Bracket, TDR Tube, Cook
Units before 07/84
17962 Base & Bracket, TDR Tube
Units between 07/84 & 02/86
NLA Control Panel, Porc 1 SP
90006 Decal, Control Panel, Cook Units before 07/84
18424 Wiring Label
32265 Hot Surface Ignitor
MECHANICAL COOK & HOLD, HOT SURFACE IGNITION 1 SP
MANUFACTURED JANUARY 1985 - JULY 1986
MECHANICAL COOK ONLY, HOT SURFACE IGNITION 1 SP
MANUFACTURED JANUARY 1984 - FEBRUARY 1986
