SECTION 2
INSTALLATION
PARTS LIST FOR 1820S ELECTRIC OVEN
INSTALLATION KIT
Single and Double Stack Ovens
P/N 55311

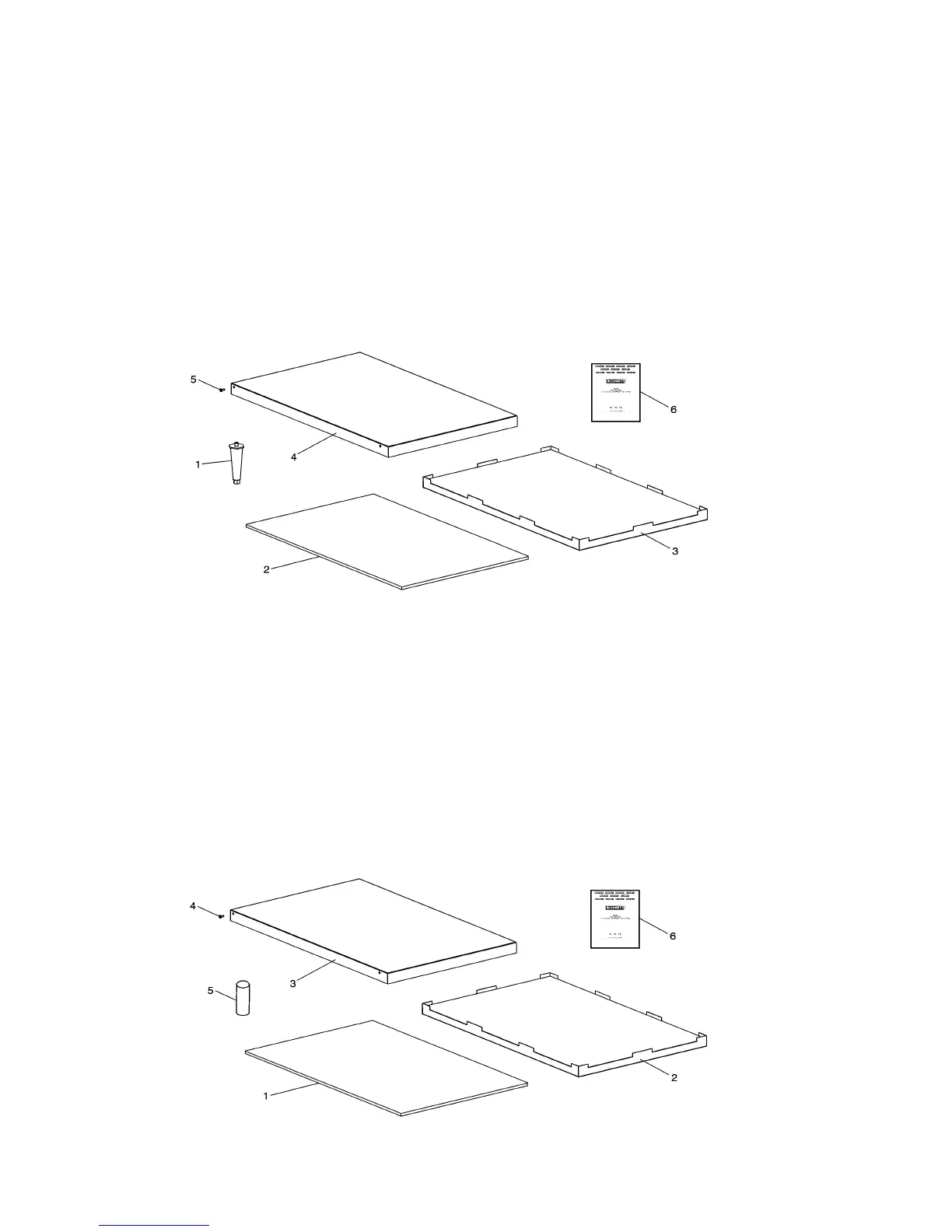

Figure 2-1. S1820 Electric Oven Installation Parts
ITEM
NO. QTY PART NO. DESCRIPTION
1 4 3101908 LEG 4″ AD FT
2 2 48392 INSULATION BOTTOM TRAY
3 1 48394 BOTTOM TRAY WELDMENT
4 1 48396 TOP COVER
5 4 51387 SCREW MSSLT THREAD 8-32 × 1/2, 18-8
6 1 55310 OWNER'S OPERATING & INSTALLATION MANUAL
ITEM
NO. QTY PART NO. DESCRIPTION
1 2 48392 INSULATION BOTTOM TRAY
2 1 48394 BOTTOM TRAY WELDMENT
3 1 48396 TOP COVER
4 4 51387 SCREW MSSLT THREAD 8-32 × 1/2, 18-8
5 4 M3828 PIN, ALIGNMENT
6 1 55310 OWNER'S OPERATING & INSTALLATION MANUAL
PARTS LIST FOR S1820 ELECTRIC OVEN
INSTALLATION KIT
Triple Stack Oven
P/N 55312
