SECTION 4
MAINTENANCE
D. Reinstall End Plugs
1. Reinstall lower end plug. Be sure to tighten the wing
screw on the end plug.
2. Reinstall conveyor.
3. Reinstall upper end plug. Be sure to tighten two wing
screws on the end plug.

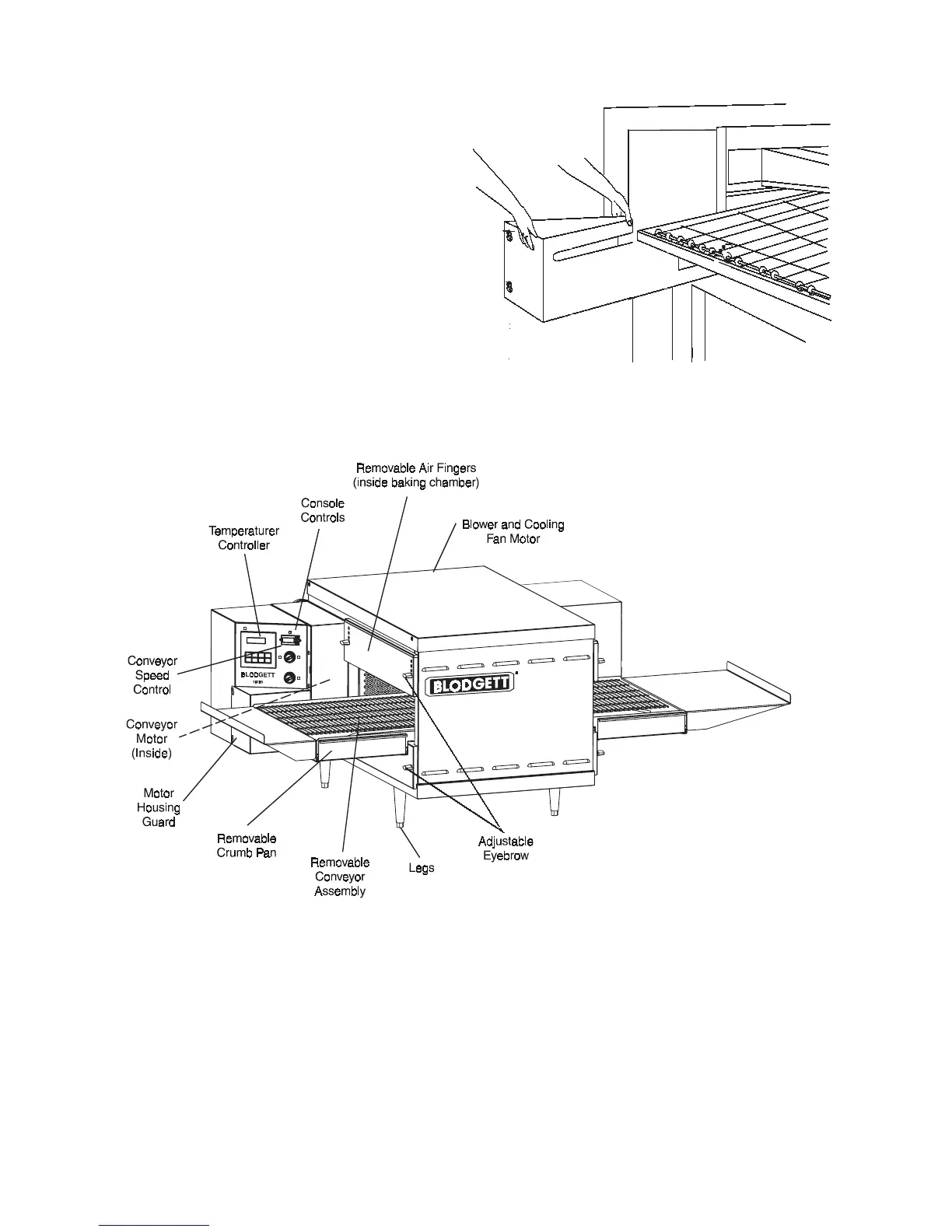

Figure 4-19.
Figure 4-20.
