SECTION 4
MAINTENANCE
4. Lift conveyor and remove chain.
5. Lift other side of conveyor and push toward other side.
6. Remove conveyor as shown.

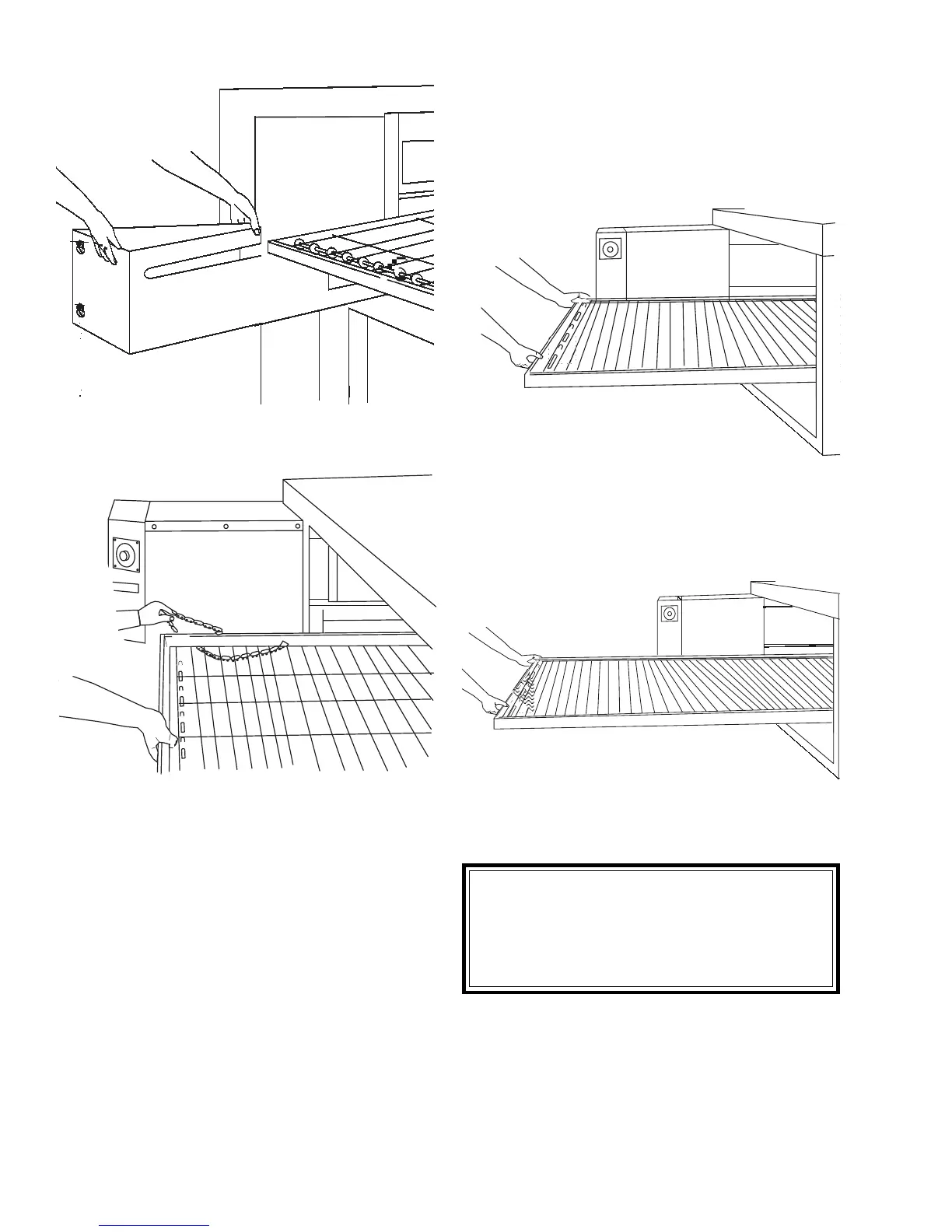

Figure 4-6.
Figure 4-7.
CAUTION
Be careful not to bump the drive sprocket while
handling the conveyor, to avoid damaging the
drive shaft.
Figure 4-4.
Figure 4-5.
