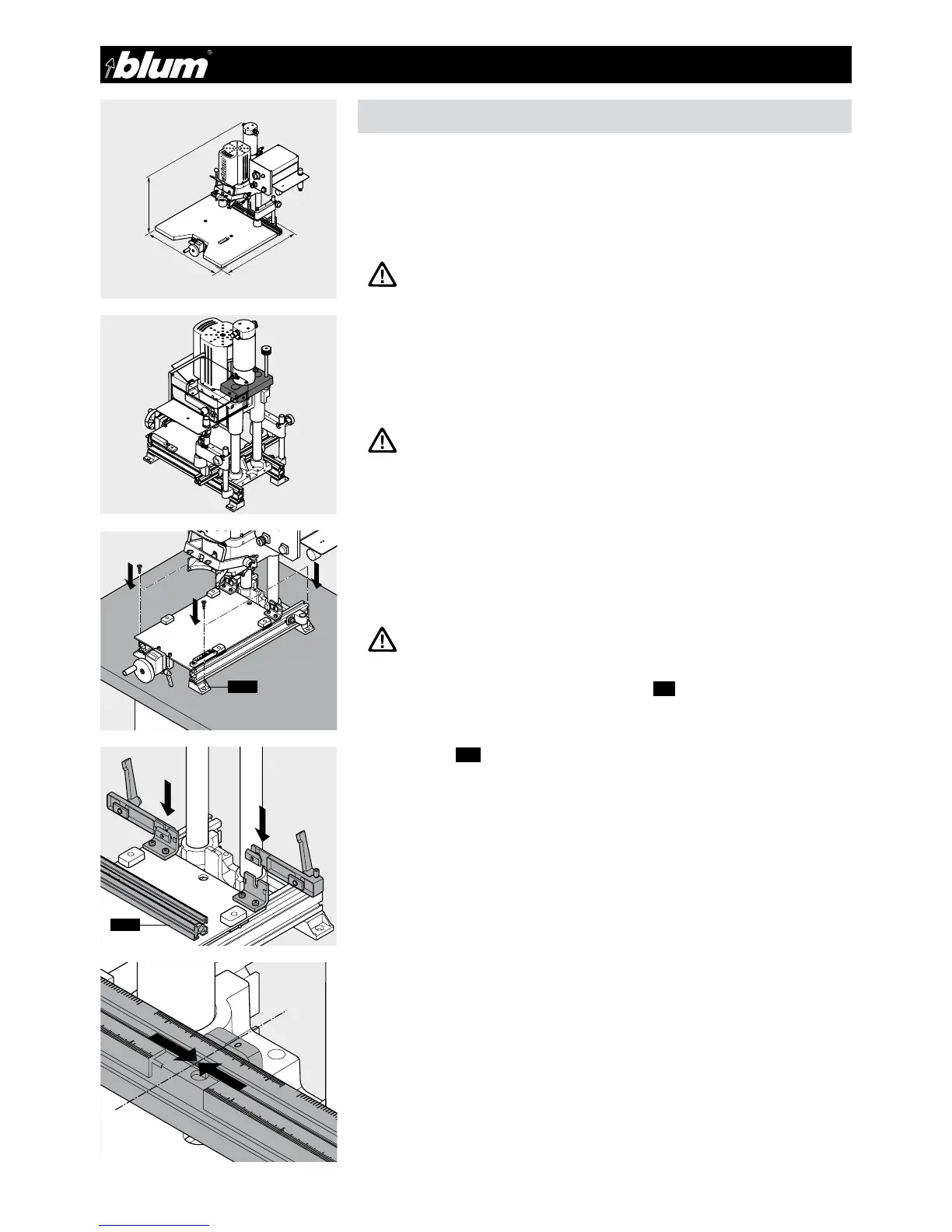

1.1 - Unpacking and assembly
1 - Assembly machine setup
1.1.1) Assembly machine space requirement
H= 771 mm
W= 684 mm
D= 690 mm
1.1.2) Unpacking assembly machine and attaching to a suitable table
• Open box
• Use two people to lift the assembly machine onto the table
1.1.3) Attaching (1.2) base ruler
• Attach the MZE.130M00 package as per
included MZE.1300 (BA-199) installation instructions
• Recommended table height 80 - 90 cm
• Pre-drill holes and then attach assembly machine (1.1) using the screws.
• Do not setup or store assembly machine in a moist environment. The
space should be dry.
ATTENTION:
The assembly machine weighs approx. 47 kg.
The table should have the proper dimensions
ATTENTION:
The centre of gravity for the assembly machine is in the back
ATTENTION:
To lift assembly machine only use hitch and load pick up device!
H
B
T
1.1
1.2
0
10
20
30
40
10
20
30
40
mm
