1.4 - Dust extraction
ATTENTION:
The machine must be connected to a dust extraction system!

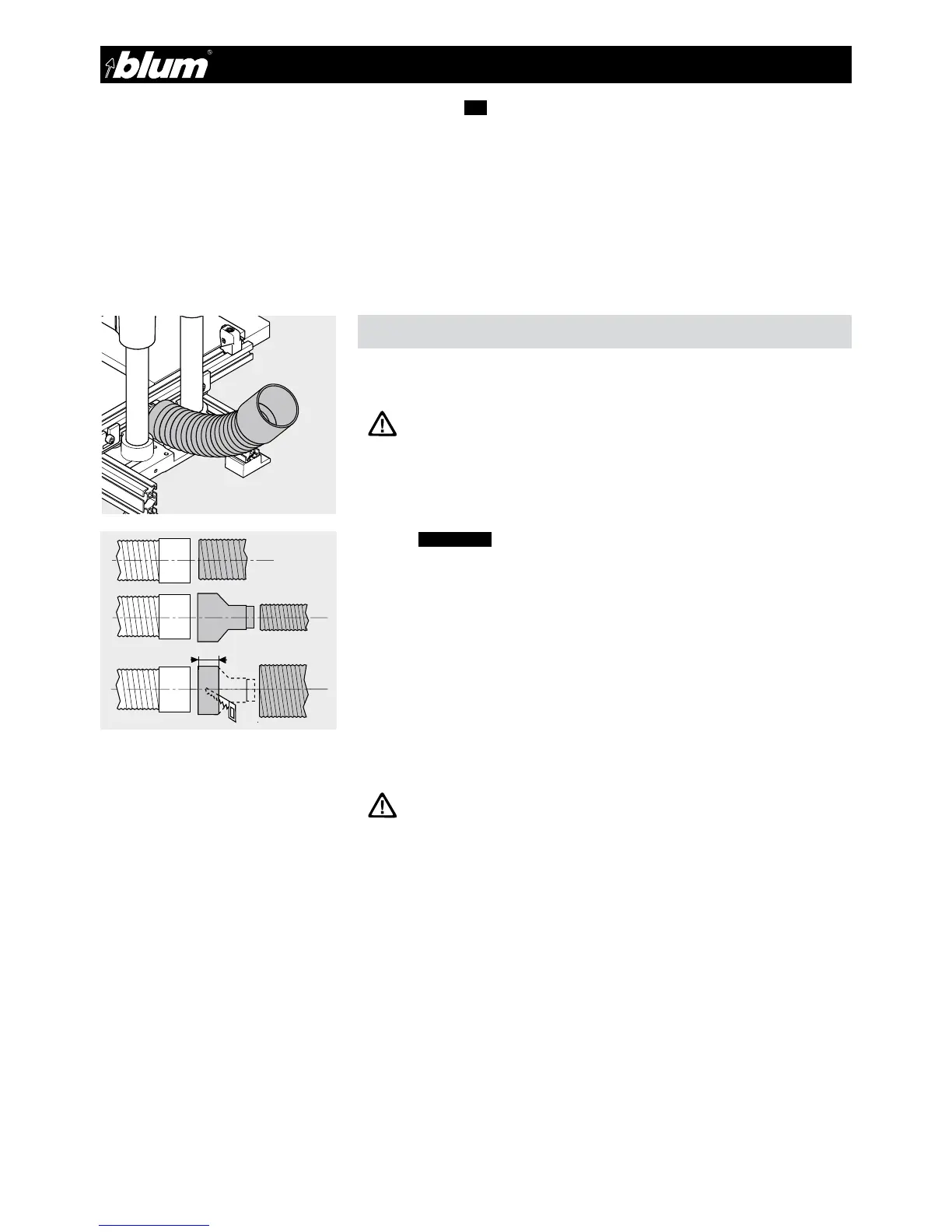

1.4.1) Connecting extraction system to the assembly machine
• Insert the spiral hose with an inside diameter of 100 mm into the receiving tube and
secure it.
• Make sure that the average air velocity for the extraction system is at least 20 m/sec.
• If there is no extraction system connector with a diameter of 100 mm, the supplied
adapter (image 1.4.2) can be used. For connection, make sure that a minimum air
velocity of 20 m/sec is provided at the cross-section of the 100 mm hose.
1.4.2) Attaching the extraction system with the controller
ATTENTION:
The electrical connection must be performed by a qualified electrician.
• The extraction system can be connected to contact S1 7/8 to enable the system to
turn on automatically using the main switch.
(See chapter 9 - Diagrams)
• Set main switch (2.1) to Pos.0
• The attached plug should correspond to national standards. Provide a 7 A mains
backup fuse (see Chapter 9 - Diagrams).
Important:
The assembly machine is designed for the voltage printed on the label
of the connection cable.
For use with other assembly machine operating voltages, see Chapter
9 - Diagrams
!
