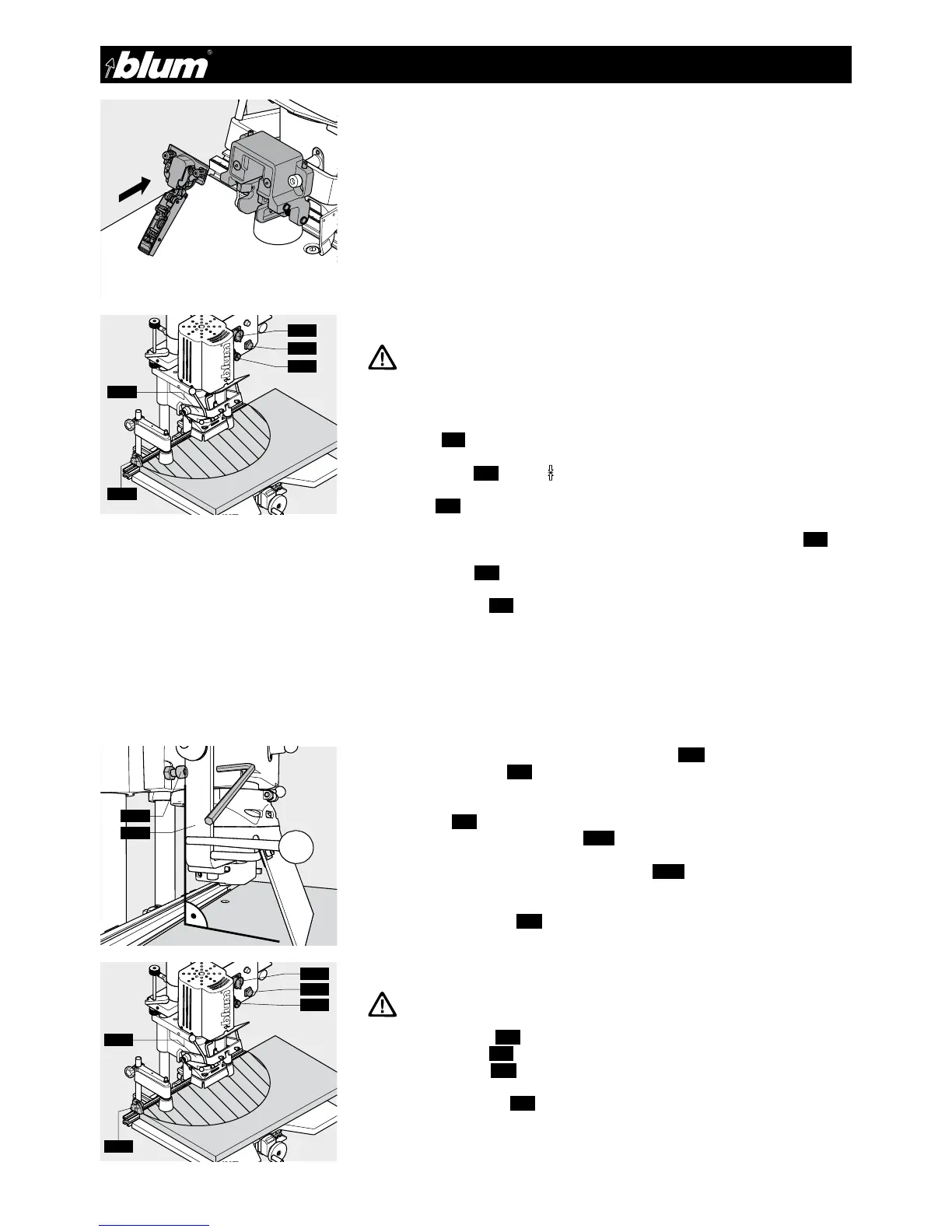

3 - Assembly
3.1.15) Clipping furniture hinge on to the insertion ram
3.1.16) Drilling
• Main switch (2.1) at Pos. 1
• Hold down clamp (2.3) at Pos.
• Swing arm (3.8) must be swivelled up.
• Hold down door outside of danger area (A) and press against the swivel stop (1.7)
• Press feed switch (2.2) until drilling depth is reached.
• Release feed switch (2.2).
ATTENTION:
All items except for the work piece should be removed from the work
area of the assembly machine. Keep your hands out of work area (A).
3.1.17) Checking the tilt adjustment of the swing arm (3.8)
• Swivel down swing arm (3.8) to the stop.
• Check whether or not the furniture hinge is aligned with the drilling.
• If it is misaligned, this can be caused by two things:
a) Swivel arm (3.8) is not set vertical.
- Use the screw to correct this setting (3.21)
b) Insertion ram is off-centre:
- Correct this setting using the adjustment screws (3.22) on the insertion ram.
IMPORTANT:
If the feed switch (2.2) is only lightly pressed a few millimetres, the drill
and insertion assembly moves downwards at creep speed.
3.1.18) Inserting the furniture hinge
• Press the feed switch (2.2) until the furniture hinge is inserted completely.
• Release feed switch (2.2).
• Swivel up swing arm (3.8)
• Loosen the hold down clamps by touching the
hold down clamp switch (2.3)
• Remove door from the work top or push to the next stop.
ATTENTION:
Keep your hands and other objects away from assembly machine work
area (A)
L
3.8
1.7
2.1
2.2
2.3
3.21
3.8
!
L
2.3
2.1
2.2
1.7
3.8
