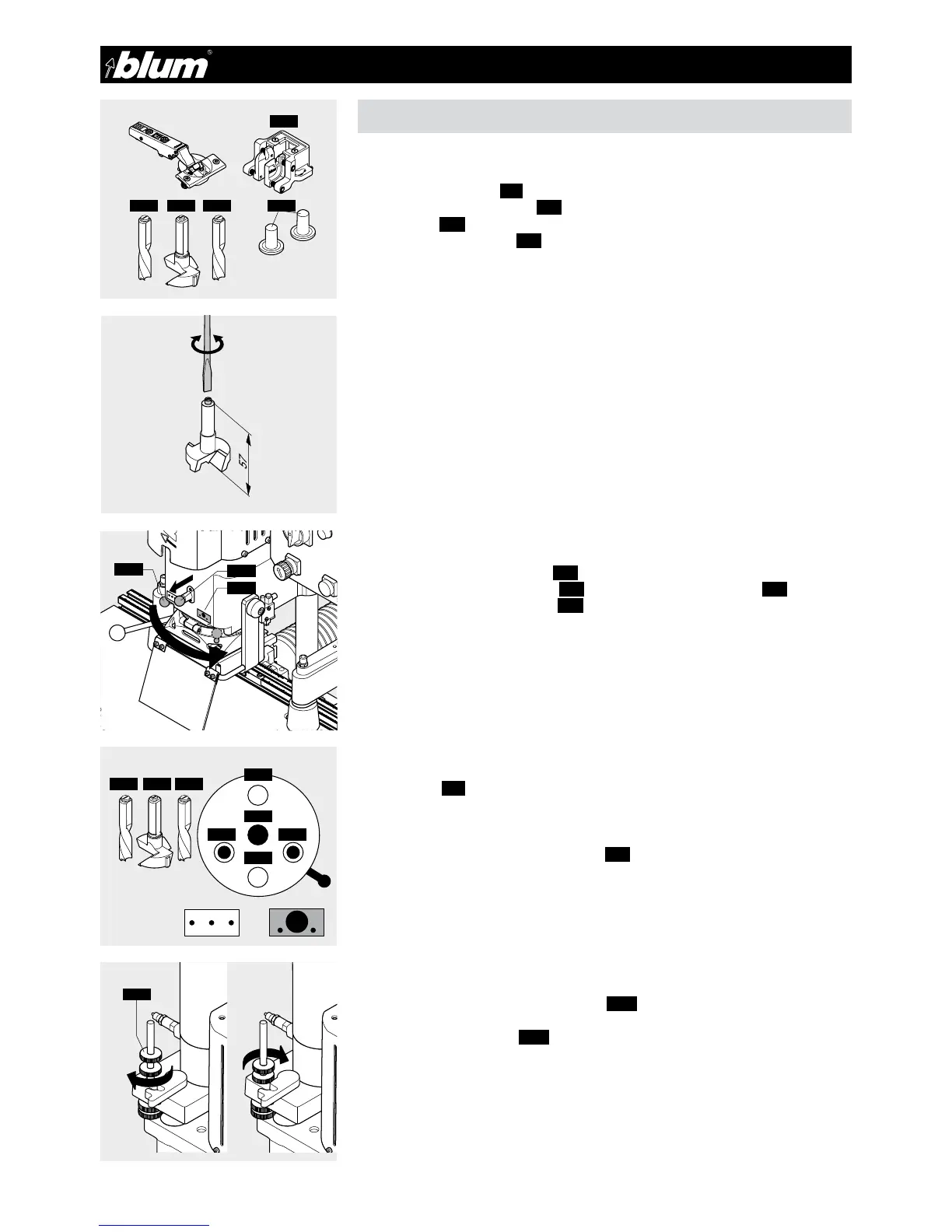

3.1 - Furniture hinge assembly
3 - Assembly
3.1.1) Required parts
• Drill bits:
1x ø 35 mm clockwise (3.1) (marked in black)
2x ø 8 mm counterclockwise (3.2) (marked in red)
• Cover caps (3.3)
• Insertion ram MZM.00XX (3.4) (see catalogue to determine the proper insertion ram
for the respective furniture hinge)
• Furniture hinge
Important:
All drill bits must be the same length
3.1.2) Setting drill bit length
• The total length of the drill bits (from bit-tip to adjustment screw)
should be 57 mm
• To correct drill bit length, adjust screw accordingly using a screwdriver
3.1.3) Setting drilling pattern
• Pull out drilling head fixing knob (3.5)
• At the same time, move the lever (3.6) to the “Furniture hinge” symbol (3.7)
• Release drilling head fixing knob (3.5)
3.1.4) Inserting drill bits
• Main switch (2.1) at Pos. 0
• Push drill bits all the way into the chuck (The surface of the drill shaft must be placed
in the direction of the fixing screw)
• Use a hex wrench to tighten the fixing screws
• Insert cover caps into the unused chucks (3.3). This will keep the chucks clean and
prevent the fixing screws from coming out on their own.
3.1.5) Setting drilling depth
• Set drilling depth using the knurled screw (3.10)
(One turn equals 1.5 mm)
• Secure the knurled screw (3.10) (lock)
Important:
Do not unscrew completely from the drill chuck.
Complete unscrewing could damage the chuck.
3.4
3.2 3.1 3.2
3.3
3.7
3.5
3.6
Ø 8 Ø 35 Ø 8
3.1 3.2
3.3
3.1
3.3
3.23.2
3.2
3.10
!
!
