4 - Assembly

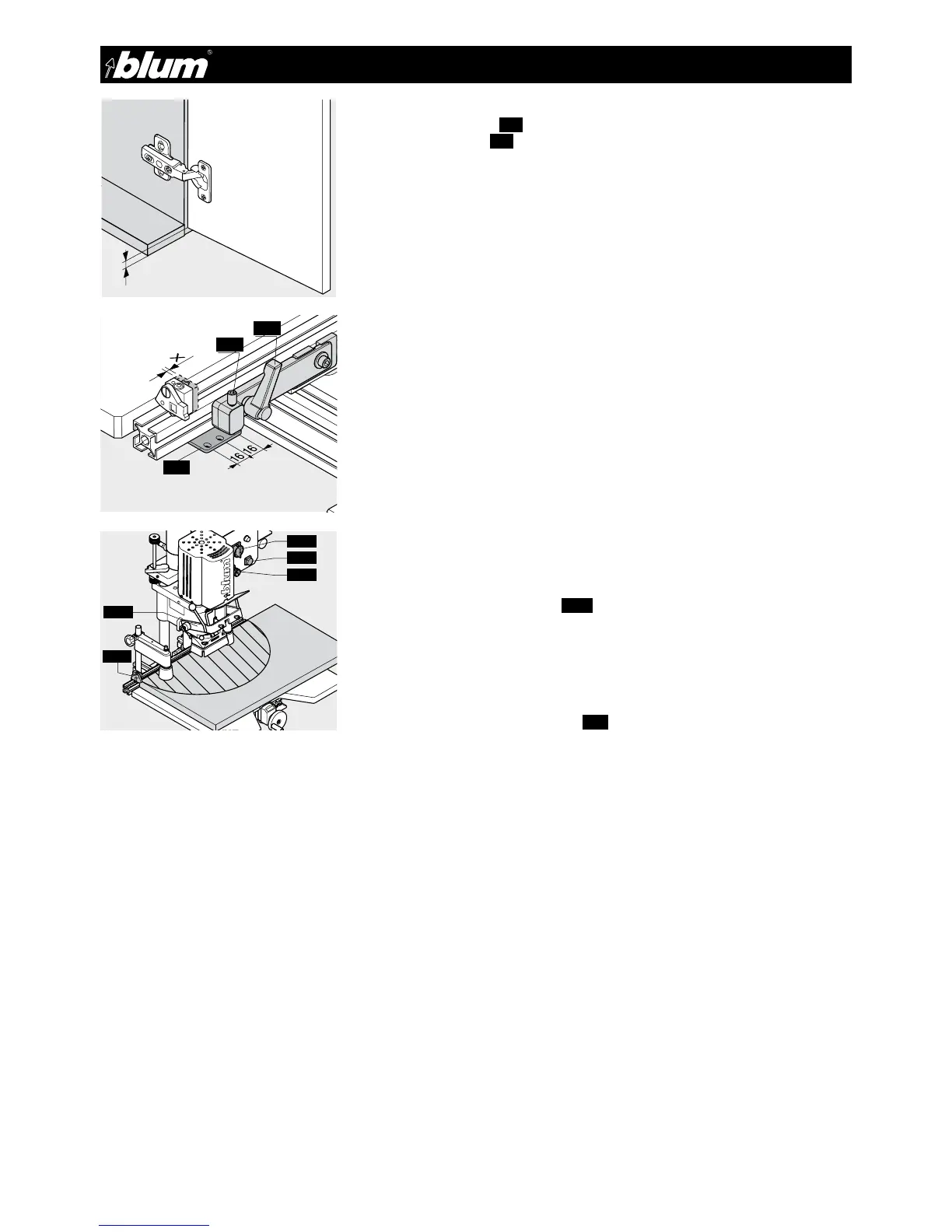

b) If the bottom edge of the door should be shorter or longer than the bottom edge of
the carcase, the stops (1.7) must be set according to the measured difference. In ad-
dition, the base ruler (1.2) must also be re-positioned.
Positioning stops and rulers:
• Shift stops by measurement (x)
• Loosen screws
• Move ruler 16 mm in the direction of the outside drill bit
• Secure screws
4.1.9) Placing cabinet side on the work top and pushing up against the stop
or marking line
(See point 3.1.12)
4.1.10) Setting hold down clamps (3.16) to the material thickness
(See point 3.1.13)
4.1.11) Drilling
(See point 3.1.16)
4.1.12) Releasing hold down clamps
• Briefly press hold down clamp switch (2.3)
• Push cabinet side to the next stop.
IMPORTANT:
This step will align the 0 point offset for the cruciform mounting plate.
(see figure 4.1.8)
