MFP112 USER MANUAL
11
contact support@blustream.co.uk / support@blustream.com.au
The Blustream range of matrix and switcher products include multiple options for control and routing of IR.
IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared solutions. When
using third party 12v IR control solutions please use supplied Blustream IRCAB cable for IR conversion.

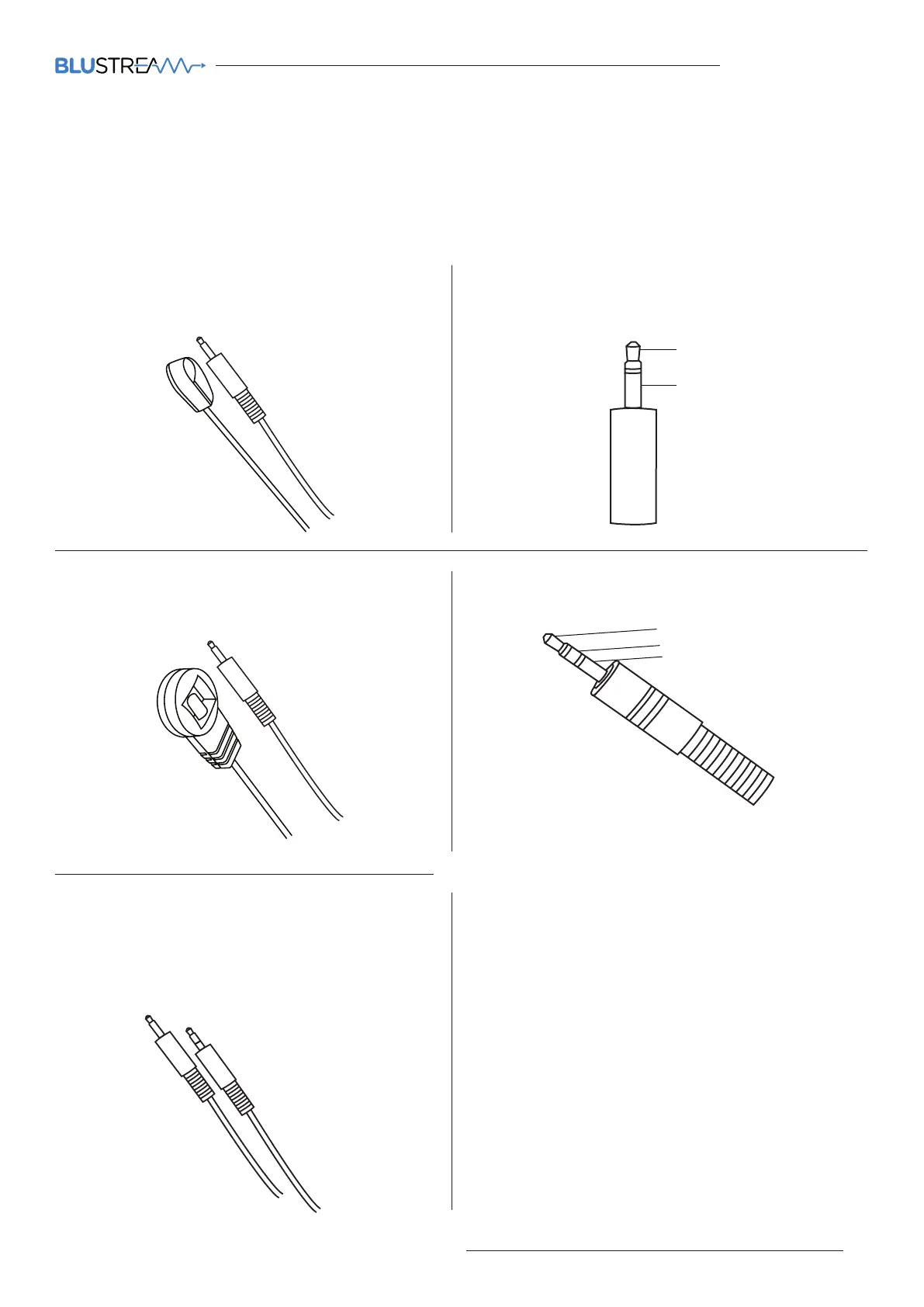

Each Blustream Matrix solution is supplied with all necessary IR hardware required and includes:
IR Emitter
Blustream IR Emitter designed for discrete IR control of
hardware
IR Receiver
Blustream IR receiver to receive IR signal and pass-through
Blustream products
IR Control Cable
Blustream IR Control cable 3.5mm Mono to 3.5mm Stereo for
linking third party control solutions to Blustream products.
Will work with 12v IR third party products.
Note: Cable is directional as indicated
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm
IR Receiver - Stereo 3.5mm
Infrared (IR) Distribution
Signal
Ground
Signal
5V
Ground
