HEX70ED-Tx
Transmitter
When it is a requirement that source equipment is to be located away from the central Blustream MFP112 switcher there are four
Blustream HDBaseT Transmitters that that can be partnered with the HDBaseT Input port and allow source equipment to be
located at distances of up to 100m*:-
HEX70B-TX
Basic HDBaset Transmitter with 2-way IR pass-through. Supports
display distances up to 70m @ 1080P.
HEX100ARC - TX
Premium HDBaseT Transmitter which features 2-way IR & RS-232
and distances up to 100m @ 1080P*.
HEX70ED - TX
HDBaseT Transmitter which features 2-way IR & RS-232, EDID man-
agement and display distances up to 70m @ 1080P.
HEX100HDVGA - TX
Premium HDBaseT Transmitter which features selectable HDMI or
VGA+audio inputs and 2-way IR & RS-232. Supports distances up to
100m @ 1080P.
• HDMI input/HDBaseT output
• IR output 3.5mm Mono jack
• IR input 3.5mm Stereo jack
• HDMI input/HDBaseT output
• 2-way RS-232 (9-pin serial)
• IR output 3.5mm Mono Jack
• IR input 3.5mm Stereo jack
*NOTE - When powering the transmitter from the MFP112
switcher the distance is limited to 30M due to dierence in
voltage. To acheive 100m extension you must power the
HEX100ARC-TX locally using Blustream 15V DC adaptor (sold
seperately)
• HDBaseT input/HDMI output
• 2-way RS-232 (9-pin serial)
• IR output 3.5mm Mono jack
• IR input 3.5mm Stereo jack
• HDMI & VGA+ audio input/ HDBaseT output
• 2-way RS-232 (9-pin serial)
• IR output 3.5mm Mono jack
• IR input 3.5mm Stereo jack
• Input select button (toggle between VGA+audio and HDMI
inputs
• Auto signal sensing switching between HDMI & VGA/audio
inputs

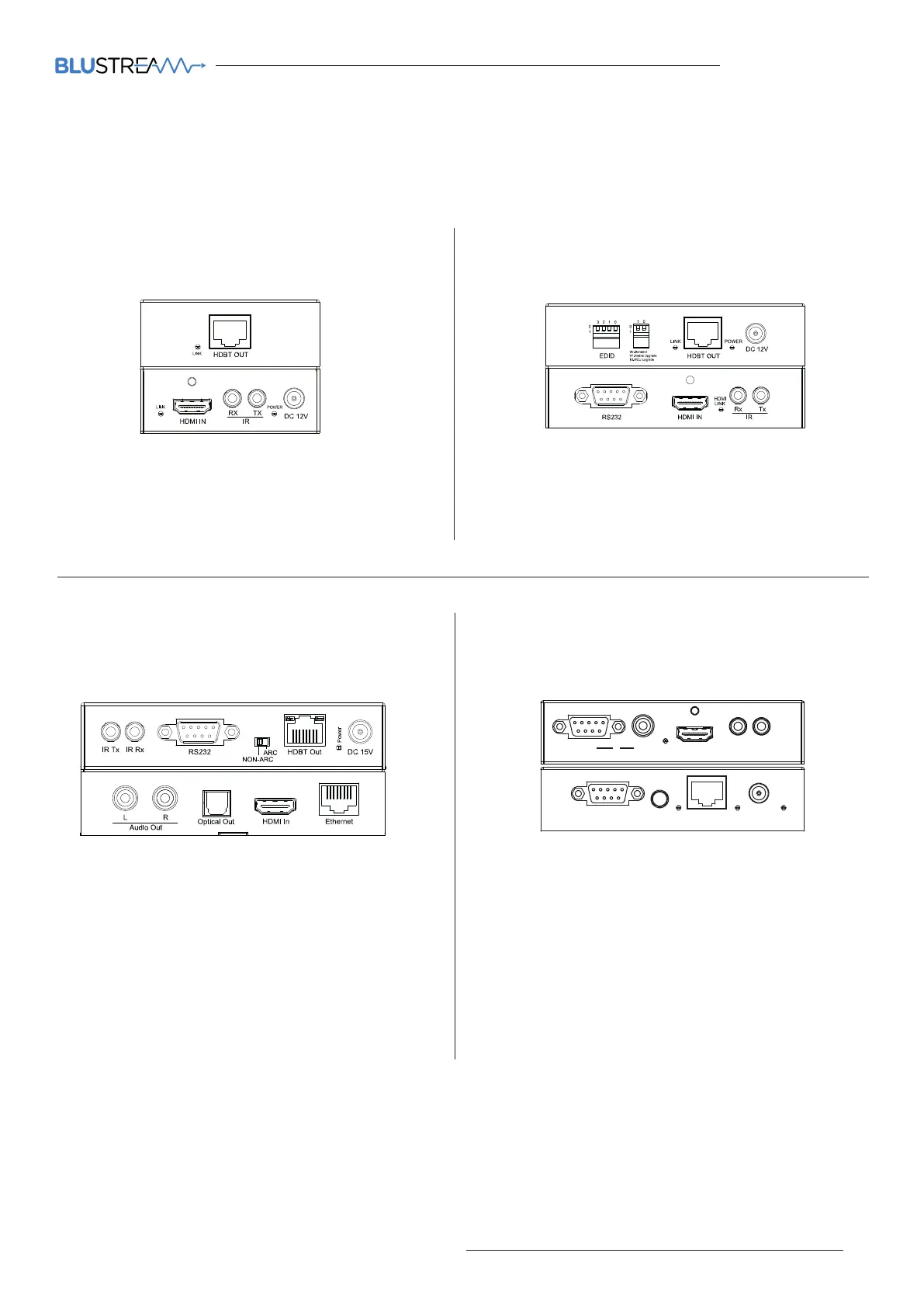

MFP112 HDBaseT Transmitter Options
HEX70B-Tx
Transmitter
HEX100ARC-Tx
Transmitter
HDBT Out
Input
Select
RS232 DC12V
LINK Power
HEX100HDVGA
HDMI
LINK
HDMI in
Audio
IR RX IR TX
VGA In
