MFP112 USER MANUAL
04
www.blustream.co.uk
12 13 14 16 18 19 20
1 LCD display - Shows the status of
input-output selection, EDID info etc.
2 IR receiver window.
3 Matrix Switcher LED indicator -
When the LED is lit, Matrix Switcher
mode is active and both HDMI
outputs switch independently.
When the LED is not lit the Matrix
switcher is in Splitter mode and
both HDMI outputs will display the
same selected video input.
4 Mode button - Press to switch
between Matrix Switcher and
Splitter modes.
5 HDBaseT input selection button
for HDMI output 1 when in Matrix
Switcher mode.
6 HDMI input selection buttons for
HDMI output 1 when in Matrix
Switcher mode.
7 Format set button - Press to change
the output resolution.
8 Menu button - Press to enter EDID
set mode, volume setting or F/W
information.
9 Up selection button - Press to
change segment’s value.
q Down selection button - Press to
change segment’s value.
w Enter button - Press to confirm the
settings.
e Power LED indicator - Indicate the
status of power.
r Embed LED indicator - When the
LED is lit, Audio embed mode
is active. When active the L/R
Analogue input will be embedded
onto the HDMI/HDBaseT outputs.
In Splitter mode analogue audio
is embedded to both of the HDMI/
HDBaseT outputs with the ability
to adjust the volume. In Matrix
Switcher mode Analogue audio
will only be embedded onto
HDBaseT output 2.
t L/R in selection button - Press to
embed the Analogue L/R audio
input to the HDMI/HDBaseT
outputs (as above).
y HDBaseT input selection button -
Press to select the HDBaseT input
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in Splitter mode.
u HDMI input selection buttons 1 to
4 - Press to select the HDMI input
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in Splitter mode.
i VGA input selection buttons 1 to 4
- Press to select the VGA input with
associated Analogue L/R audio
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in Splitter mode.
o YPbPr (Component video) input
selection button - Press to select
the YPbPr input with associated
Analogue L/R audio input.
p AV input selection button - Press
to select the Composite video AV
input with associated Analogue L/R
audio input.
a ESC-Press to exit the menu.

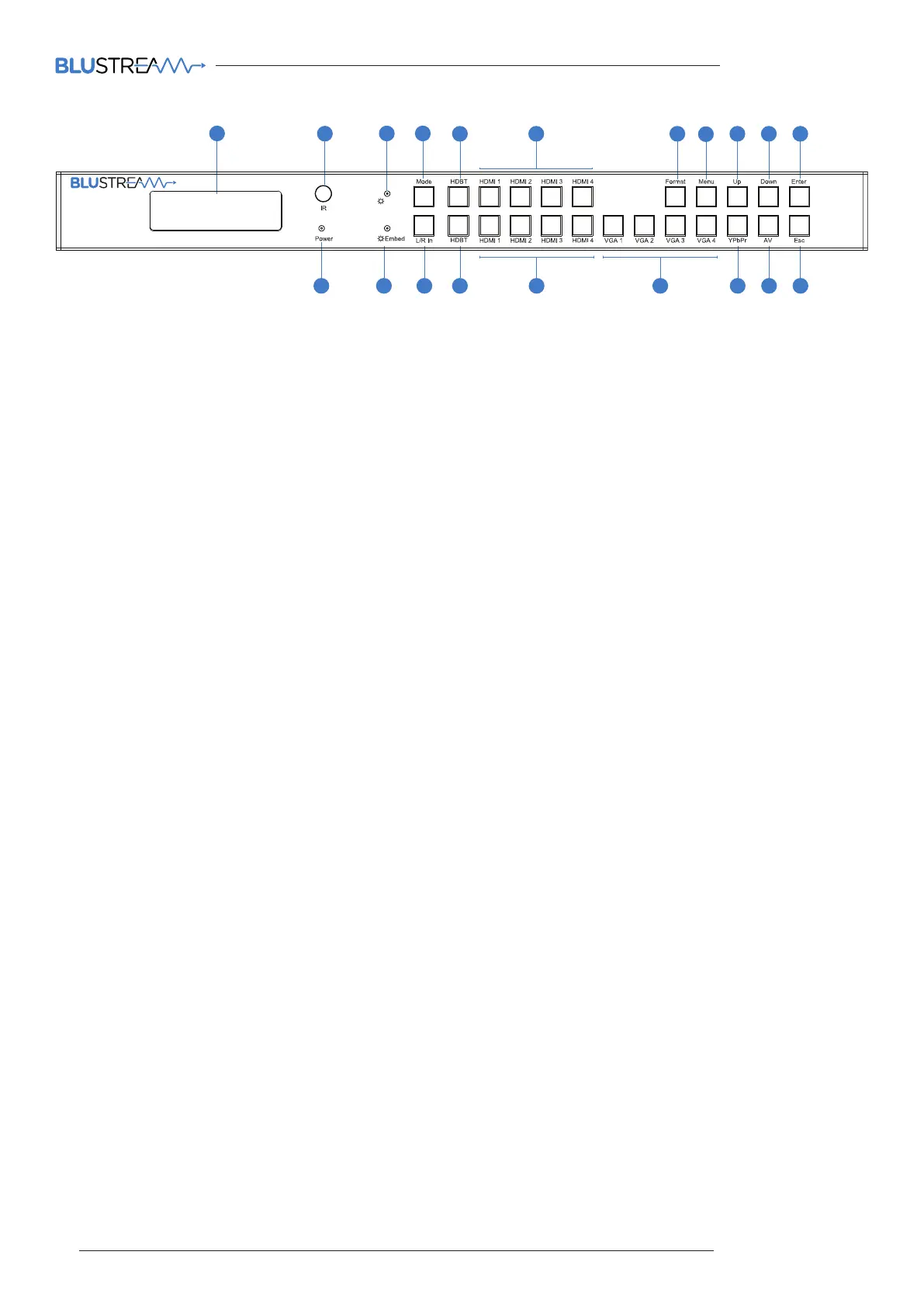

Front Panel
1
2
3 4
7 8 9 10
6
Notes:
• Volume can be changed using IR, TCP/IP & RS-232 control or from the front panel UP and DOWN buttons when in the volume
menu.
5 11
15 17
11 Input Multi-Format Presentation Switch
Matrix
Switcher
