There are four HDBaseT receiver options that are compatible with the HDBaseT output on the MFP112:-
HEX70B-RX
Basic HDBaset Receiver with 2-way IR pass-through. Supports
display distances up to 70m @ 1080P.
HEX100ARC-RX
Premium HDBaseT receiver which features 2-way IR & RS-232 and
Ethernet extension. Supports display distances up to 100m @
1080P*.
(*Note - ARC feature not supported on MFP112)
HEX70ED-RX
Mid-Level HDBaseT receiver which has the same features as the
HEX70B receiver but with added 2-way RS-232 control.
RX70AMP
The RX70AMP is a combination of HDBaseT receiver and Class D
digital audio amplifier (30W per channel). The unit has local HDMI
and Analogue audio inputs as well as supporting HDMI ARC (Audio
Return Channel) with compatible products (ARC to RX70AMP only).
Should you wish to use alternate power amplification the unit has
variable analogue outputs. Control of the unit is possible via front
panel or by bi-directional RS-232 or IR control. Supports display
distances up to 70m @ 1080P.
• HDBaseT input/HDMI output
• IR Output 3.5mm Mono jack
• IR Input 3.5mm Stereo jack
• HDBaseT input/HDMI Output
• Optical Audio input (Toslink)
• 2-way RS-232 (9-pin serial)
• IR Output 3.5mm Mono Jack
• IR Input 3.5mm Mono Jack
• 3x 10/100 Ethernet connections (RJ45)
*NOTE - When powering the receiver from the MFP112 switch-
er the distance is limited to 30M due to dierence in voltage.
To acheive 100m extension you must power the HEX100ARC-
RX locally using Blustream 15V DC adaptor (sold seperately)
• HDBaseT input/HDMI output
• 2-way RS-232 (9-pin serial)
• IR Output 3.5mm Mono jack
• IR Input 3.5mm Stereo jack
• HDBaseT input/HDMI output
• HDMI Local input for connection of local source
• 2.1 Stereo audio output @ 30W per channel (capable of drive
4, 6 & 8 Ohm speakers) & analogue Subwoofer output (RCA)
• Variable analogue line level outputs (RCA)
• Digital Coaxial S/PDIF output
• Local analogue L/R audio input 3.5mm Stereo Jack
• 2-way RS-232 (9-pin serial)
• IR Output 3.5mm Mono Jack
• IR Input 3.5mm Stereo Jack
• Built-in IR receiver on front panel of unit
Note - RX70AMP must be powered locally

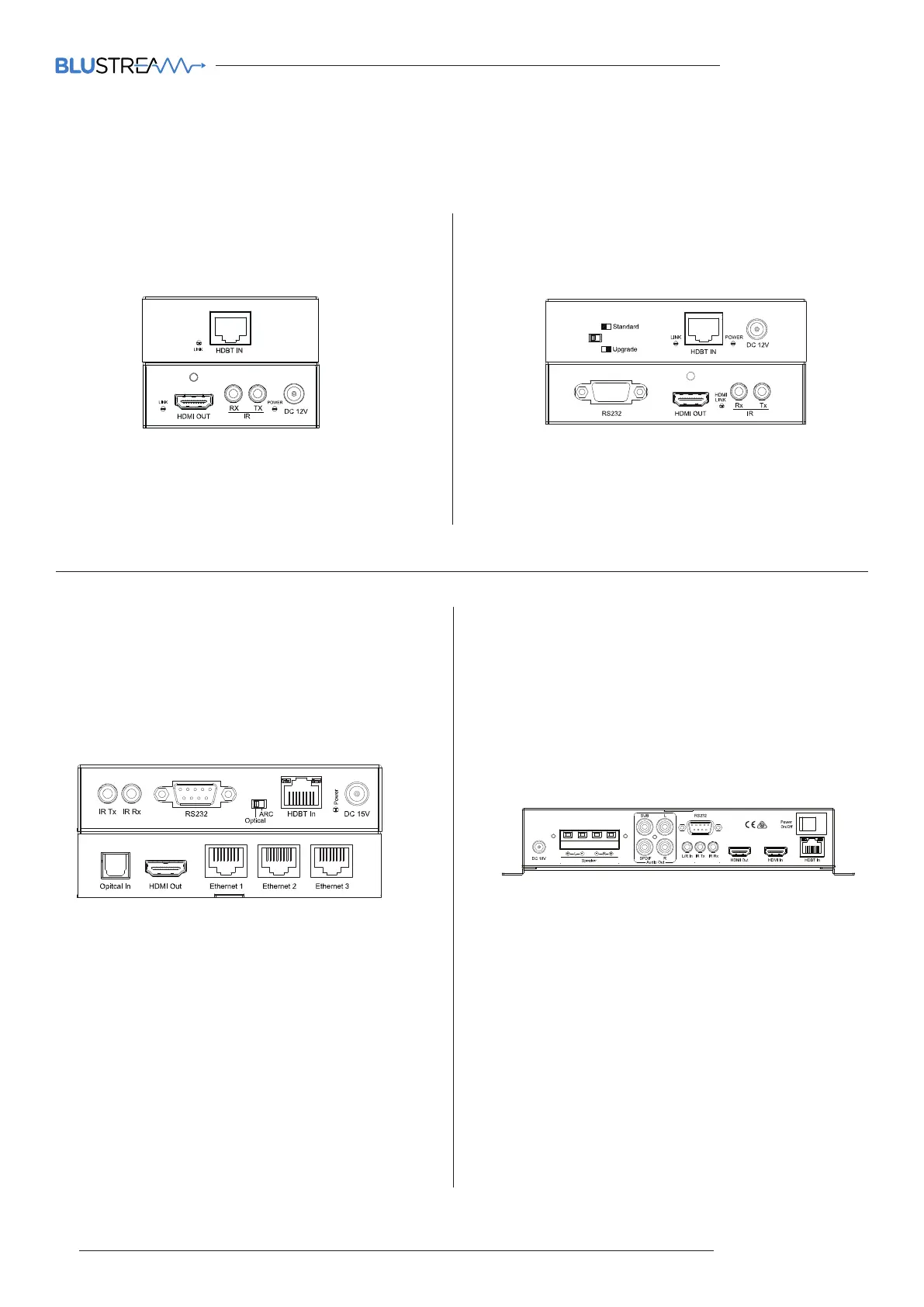

MFP112 HDBaseT Receiver Options
Receiver
HEX70B-Rx
HEX100ARC-Rx
Receiver
HEX70ED-Rx
Receiver
RX70AMP
