Front derailleur hanger installation
• Select the right model of hanger depending on your groupset, the chainring configuration, and the
front derailleur design.
You can chose between 3 front derailleur hangers:
• 1x single chainring no front derailleur flat plate
• 2x double chainrings with front derailleur Shimano 52/36, 50/35, 48/31
Sram 50/37, 48/35, 46/33
INFORMATION: Our Roadmachine 01 and Roadmachine frames are designed to accomodate
round chainrings of maximum 53 teeth and minimum 31 teeth.
WARNING: Chainrings not listed above can not be guaranteed compatible with our frame de-
sign. An assembly check is necessary to confirm a 4mm minimum clearance between the chainring,
chain and frame.
WARNING: Our Roadmachine 01 and Roadmachine are not compatible with Sram 2x Wide trans-
missions. Please select one of the standard road transmissions.
• Position the front derailleur hanger or the flat plate on the frame and bolt on the M5x12 bolts using
a hex 3mm.
• Apply threadlocker to the bolt threads
WARNING: Please select the right bolt type to match the shape of the hanger.

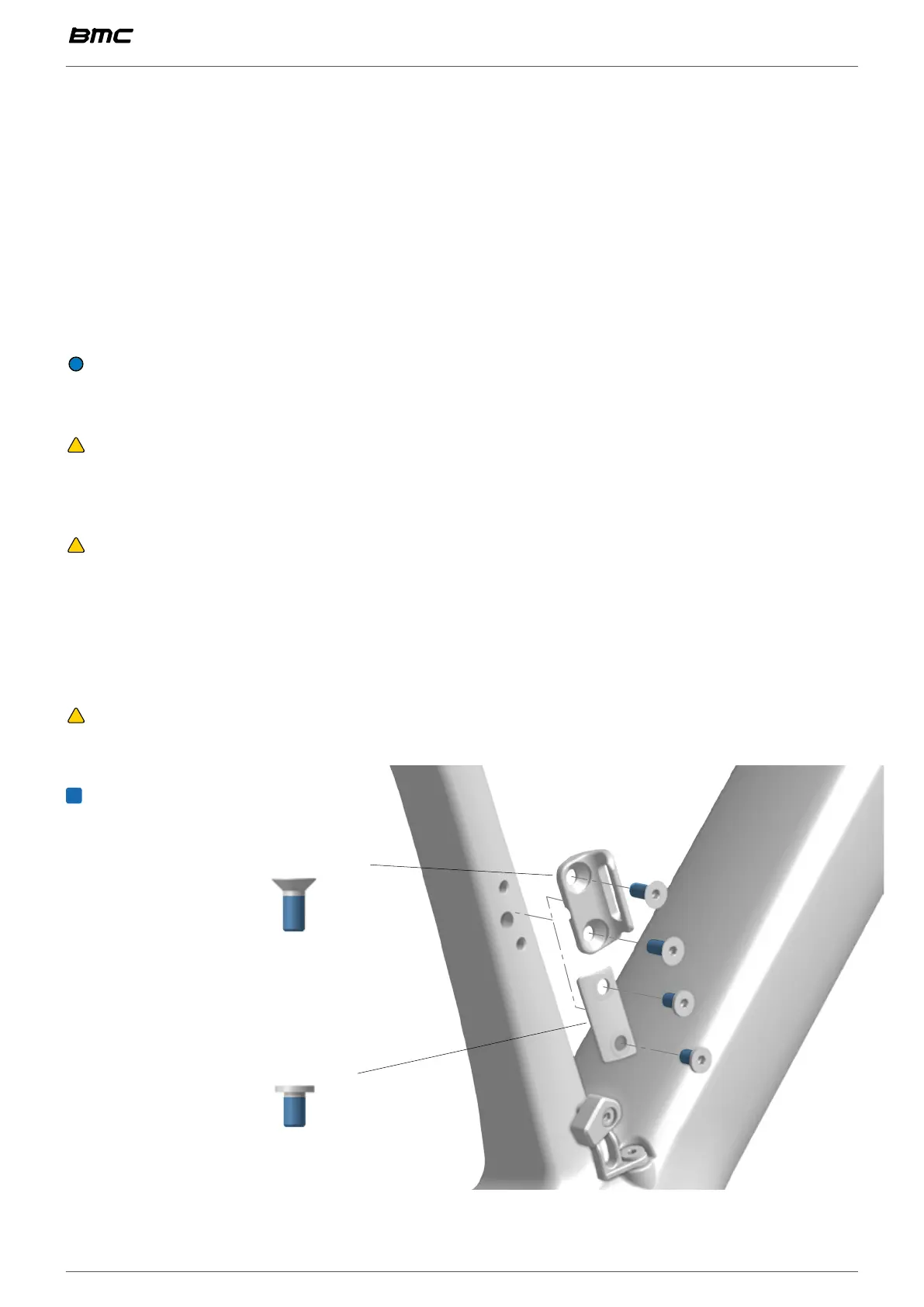

cover plate
single chainring
front derailleur hanger
double chainring
Threadlocker
