Detailed assembly instructions
29
Roadmachine Owners Manual
3 5 Nm 3 2 Nm
front derailleur hanger
double chainring
cover plate
single chainring

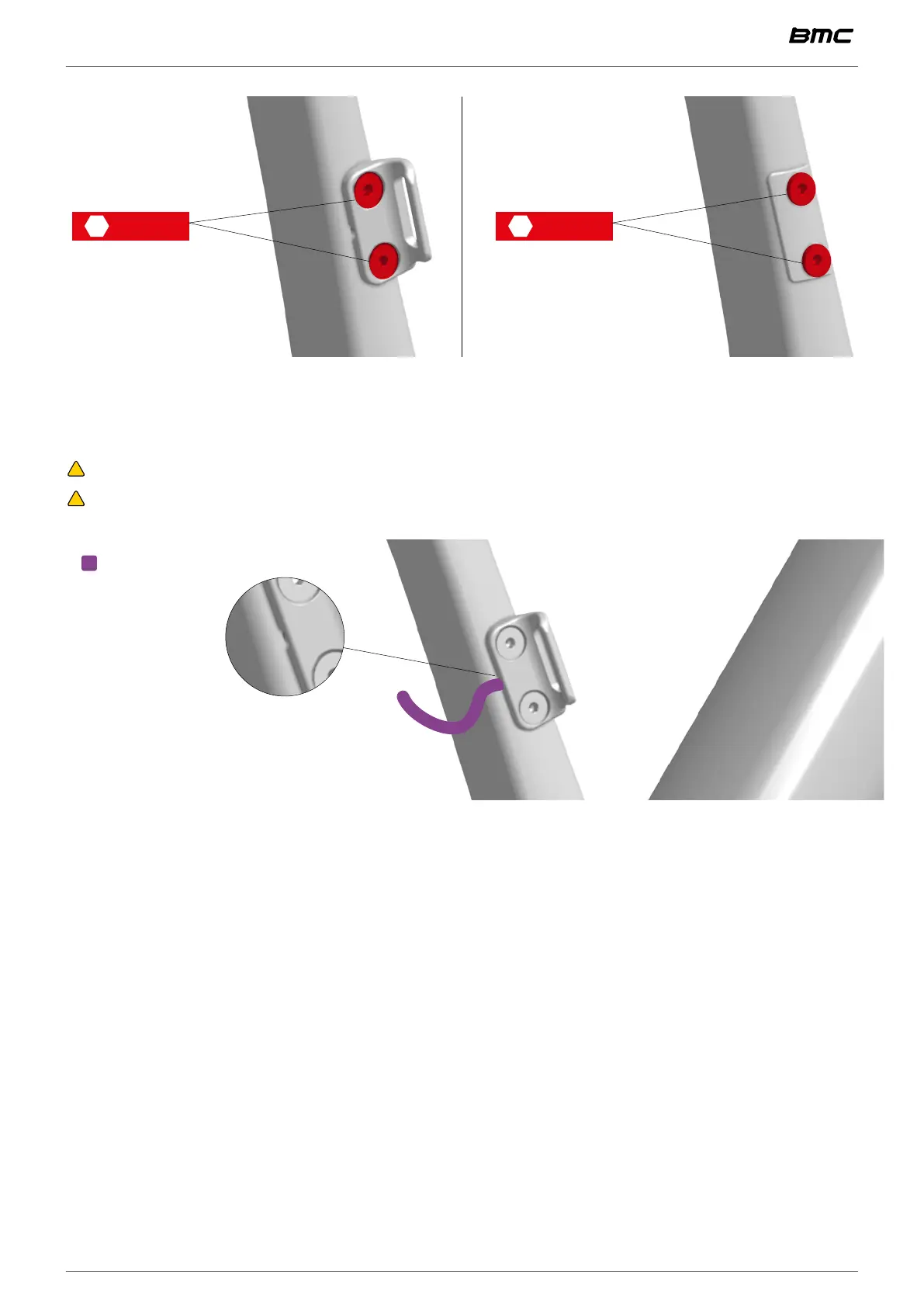

• If installing the front derailleur hanger: tighten to 5 Nm using a hex 3mm.
or
• If installing the cover: tighten to 2 Nm using a hex 3mm.
WARNING: Over tightening the cover will deform it and damage its aesthetic.
WARNING: When installing a Shimano Di2 drivetrain, install the front derailleur electronic wire
before installing the front derailleur hanger.
Route Di2 wire
