Detailed assembly instructions
40
Front brake
The front brake must be installed directly on the specific BMC front bracket adapter.
The Roadmachine is designed for 160mm front rotor only.
WARNING: There are multiple front brake adapter plate designs. Make sure you are using the
part provided with the Roadmachine.
• Install the front caliper adapter plate onto the front caliper.

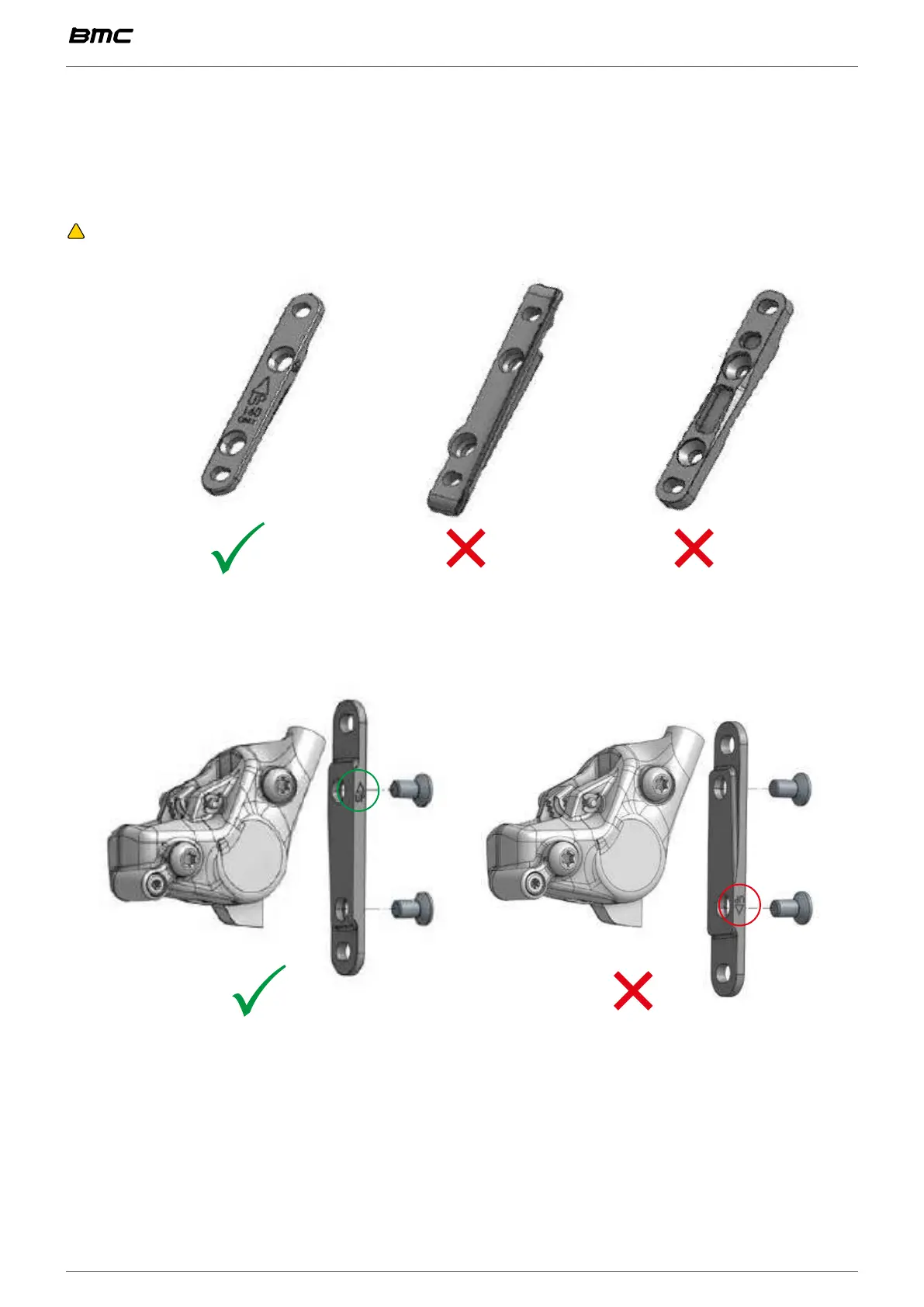

• Make sure the brake mount is in the correct position. The “UP” mark must face up and out, as
shown in the illustration below.
• Torque the countersunk bolts to the brake caliper manufacturer’s recommendation.
• Route the rear brake hose through the fork
• Install the front brake adapter to the fork mount using the 2 M5x14 bolts.
To Next Page
