Detailed assembly instructions
64
Full fender - Roadmachine only
Full fenders with stays have different designs and you may need to cut, bend, and adjust their com-
ponents to better fit your Roadmachine.
WARNING: The following illustrations are designed for information only and are not representa-
tive of the exact modifications you may need to apply.

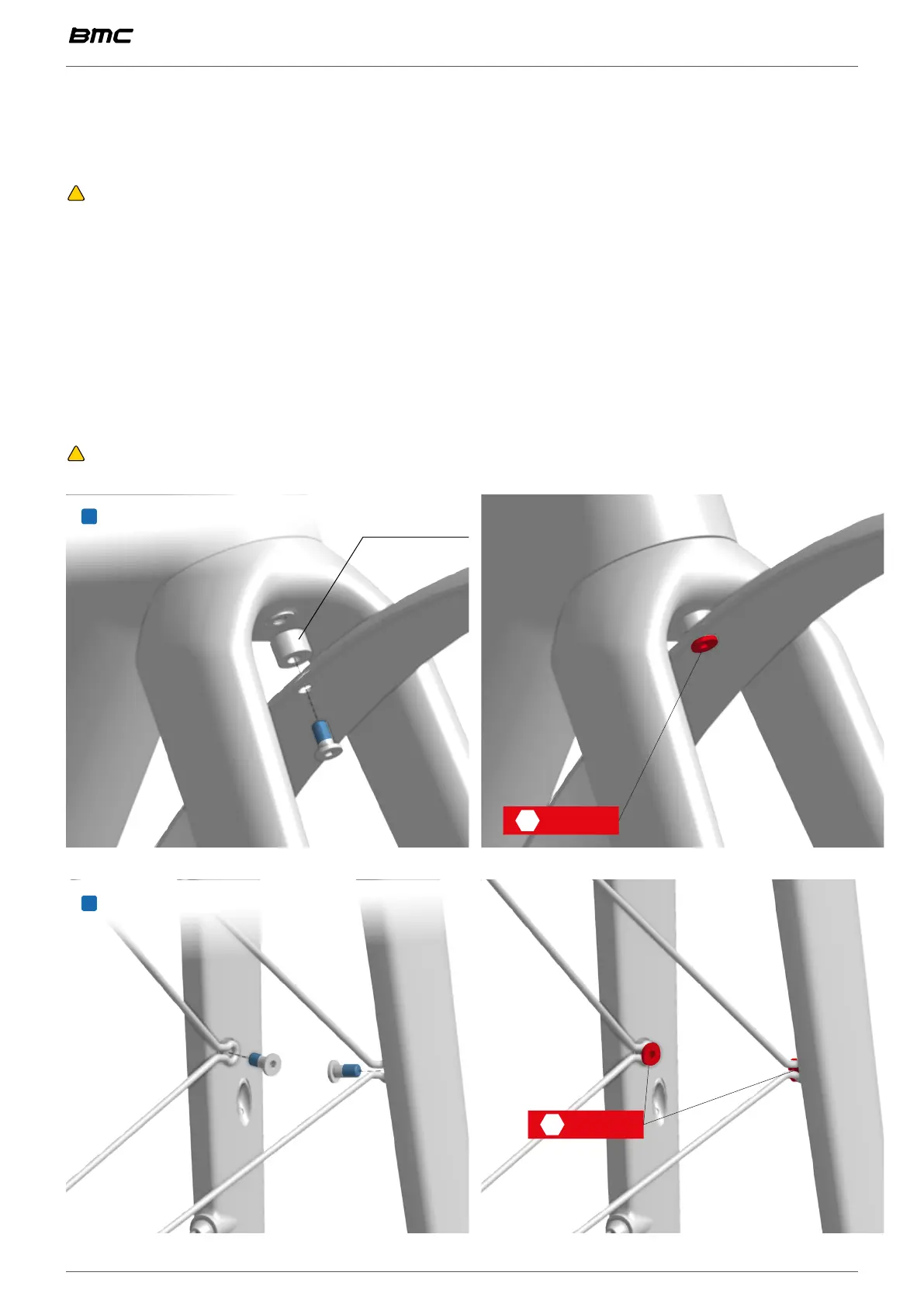

Front fender
• Remove the rubber plug from the inside of the front fork blades and fork crown.
• Position the front fender blade into the fork crown. Use a washer to push the fender away from the
fork if necessary.
• Position the front fender stays in front of the threads.
• Install the 3 M5x8 bolts to fix the stays and the fender blade.
• Tighten to 3 Nm using a hex 3mm wrench.
WARNING: Use longer bolts if necessary to guarantee at least 5mm of thread insertion into the
fork inserts.
3 3 Nm
Threadlocker
(not included)
3 3 Nm
Threadlocker
