Detailed assembly instructions
65
Roadmachine Owners Manual

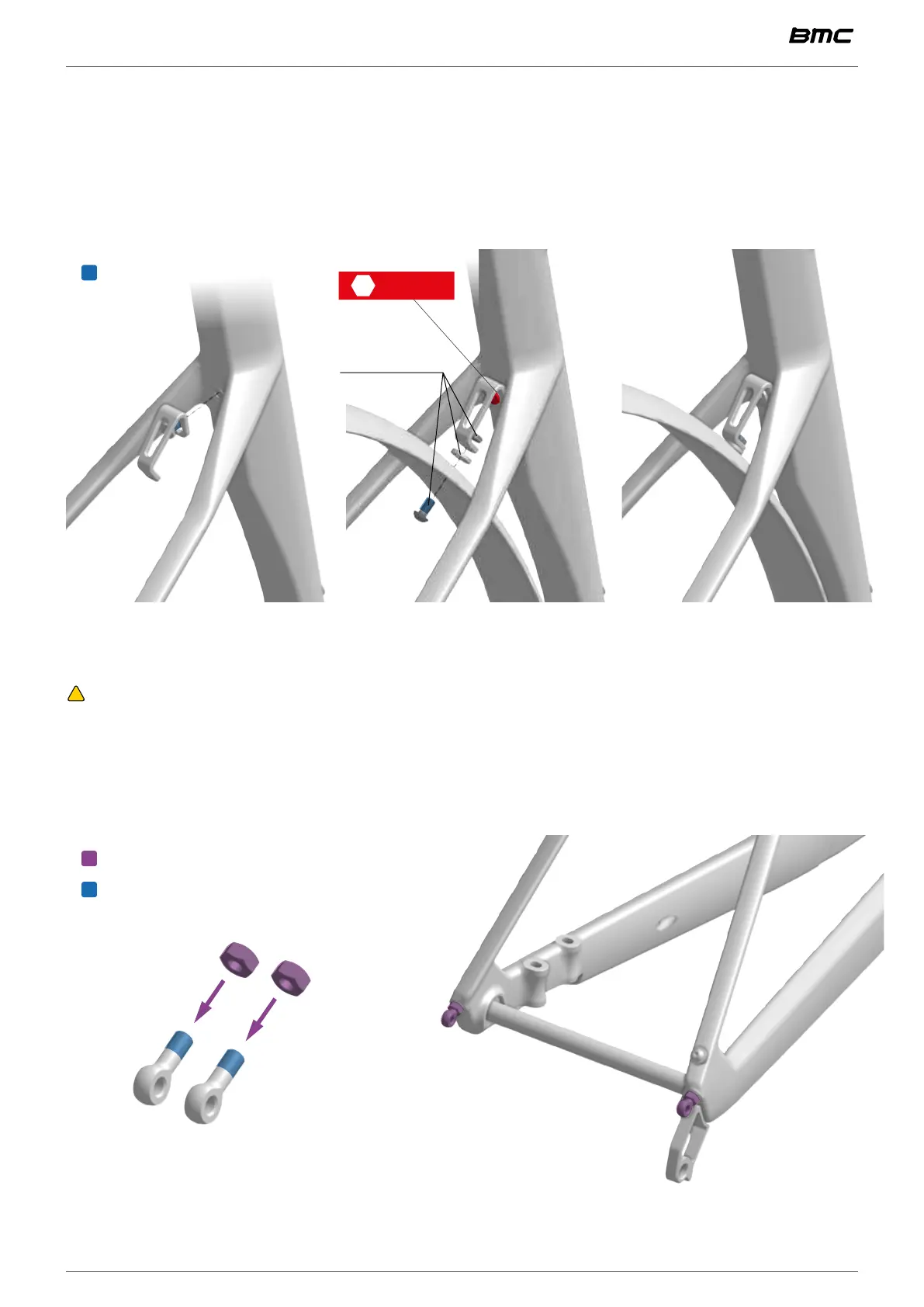

Rear fender
• Remove the rubber plug from the back of the seat tube.
• Install the rear fender spacer at the back of the seat tube between the seatstays with the M5x8
bolt.
• Tighten to 3 Nm using a hex 3mm wrench.
3 3 Nm
parts not
included
Threadlocker
• Install the M5 nut onto the M5 eye bolts thread.
• Install the M5 eye bolts into the frame rear dropouts as far as possible.
WARNING: Engage as much of the eye bolt thread into the frame so it could sustain the fenders
load correctly.
• Orient eye bolt heads to mach your stays orientation and torque the M5 nut against the frame to
2Nm.
Install the M5 eye bolts and M5 nuts
Threadlocker
