Detailed assembly instructions
66

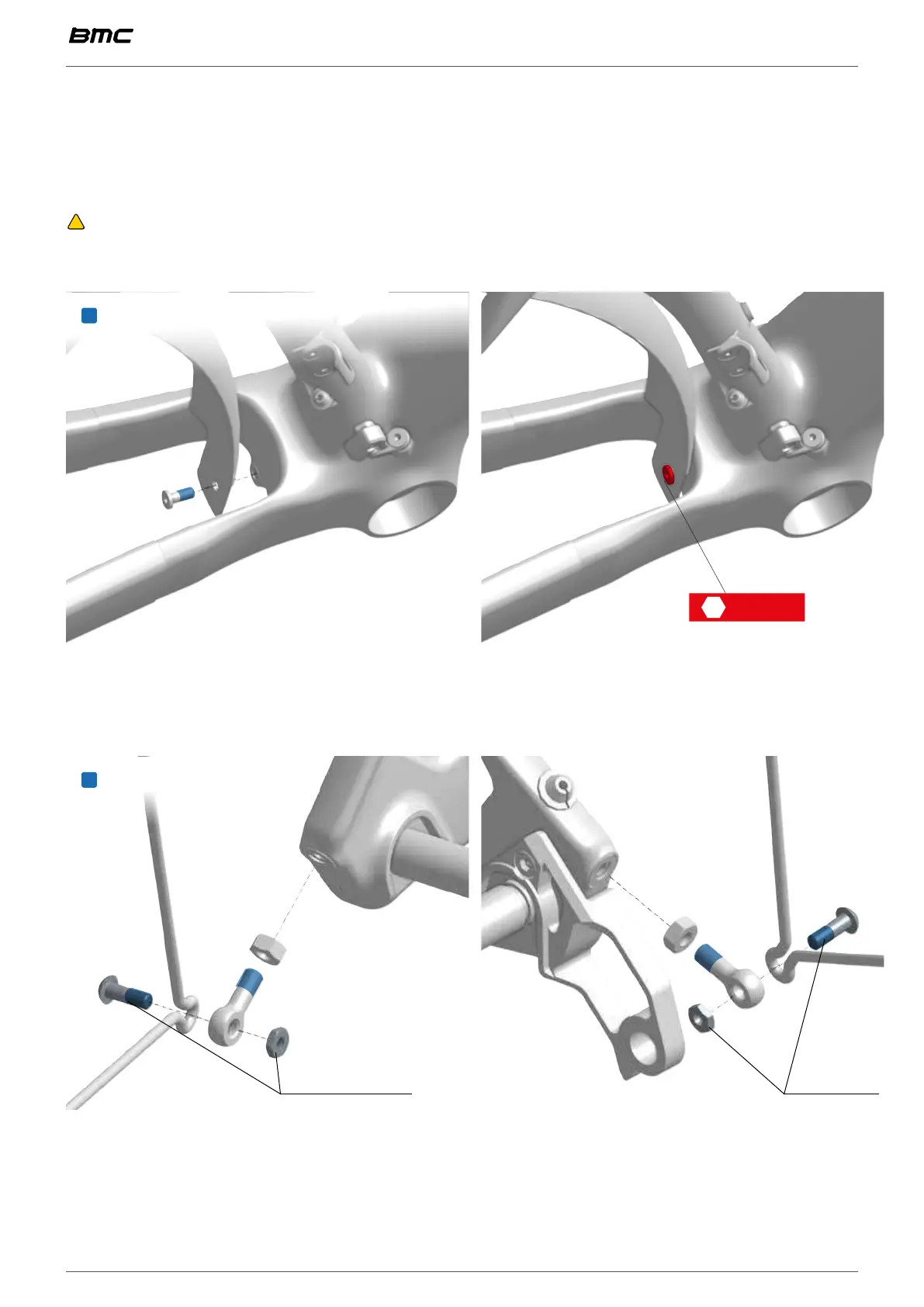

• Position the rear fender blade between the seatstays and chainstays. Use a washer to push the
fender away from the frame if necessary.
• Fix the rear fender blade between the chainstays with the M5x8 bolt.
• Tighten to 3 Nm using a hex 3mm wrench.
WARNING: Use longer bolts if necessary to guarantee at least 5mm of thread insertion into the
frame insert
3 3 Nm
Threadlocker
• Position the rear fender stays in front of the eye bolts.
• Install a set of M4 bolts and M4 nuts to fix the stays in the eye bolts (not included).
parts not
included
parts not
included
Threadlocker
To Next Page
