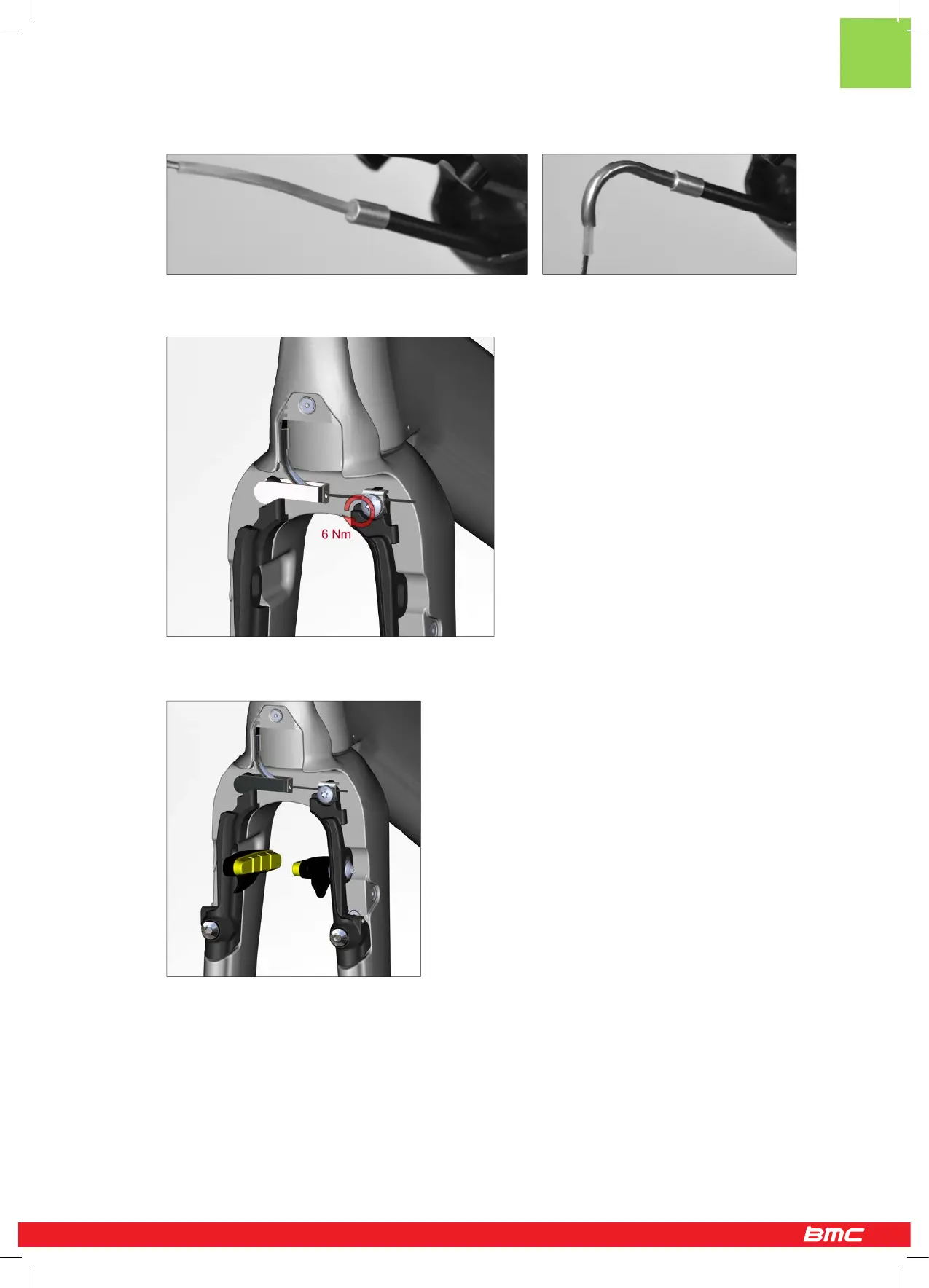

10. Slide the pipe noodle over the brake cable then slide the pipe over the brake cable and the noodle.
11. Install the pipe holder and clamp the brake cable on the left brake arm with the T25 anchor bolt. Tighten to 6Nm.
12. Install the brake pads: Refer to page 14 for pad and spacer specifications.
13. Install the brake cover.
