The Diagnostics page will display any faults detected on the Solar Controller.
The following types of faults will be displayed in the Diagnostics page if
detected:
• Battery Over Voltage
• Battery Under Voltage
• Battery Over Temperature
• Battery Under Temperature
• Solar Controller Over Temperature
• Solar Array Over Voltage
• Solar Array Short Circuit
NOTE: If Solar Controller information is set to be hidden in the Solar Controller
settings, no solar faults will display on the Diagnostics page.

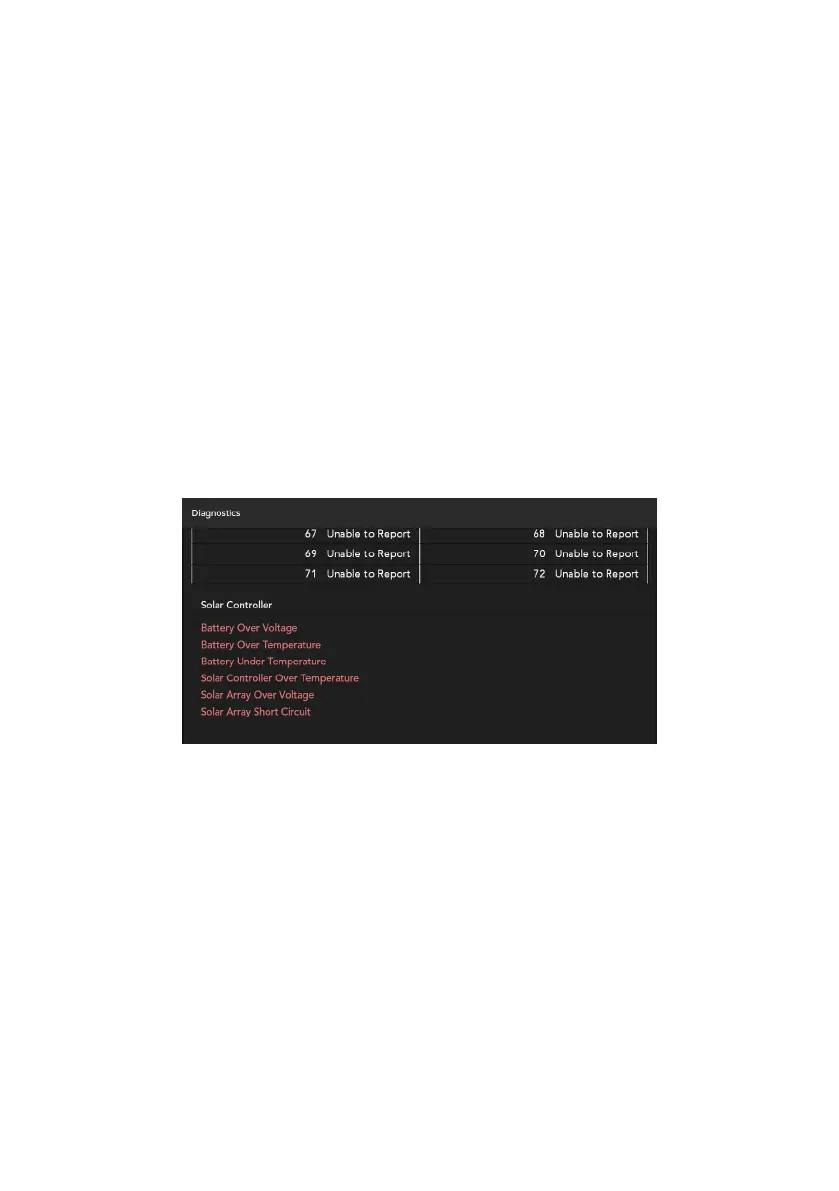

Figure 39: Solar Controller Diagnostics
41
