Mounting the Wallbox
The supplied mounting material is suitable for concrete, brick and wood (without rawl plugs). If the
surface is different, a suitable type of mounting must be selected.
Note
The fastening materials must be provided by the customer for different surfaces. Correct
installation is essential and is not the responsibility of the device manufacturer.
Assembly preparations
Drill holes
Note
Observe the installation height.
Upper edge of the drilling template =
1500 - 1700 mm.

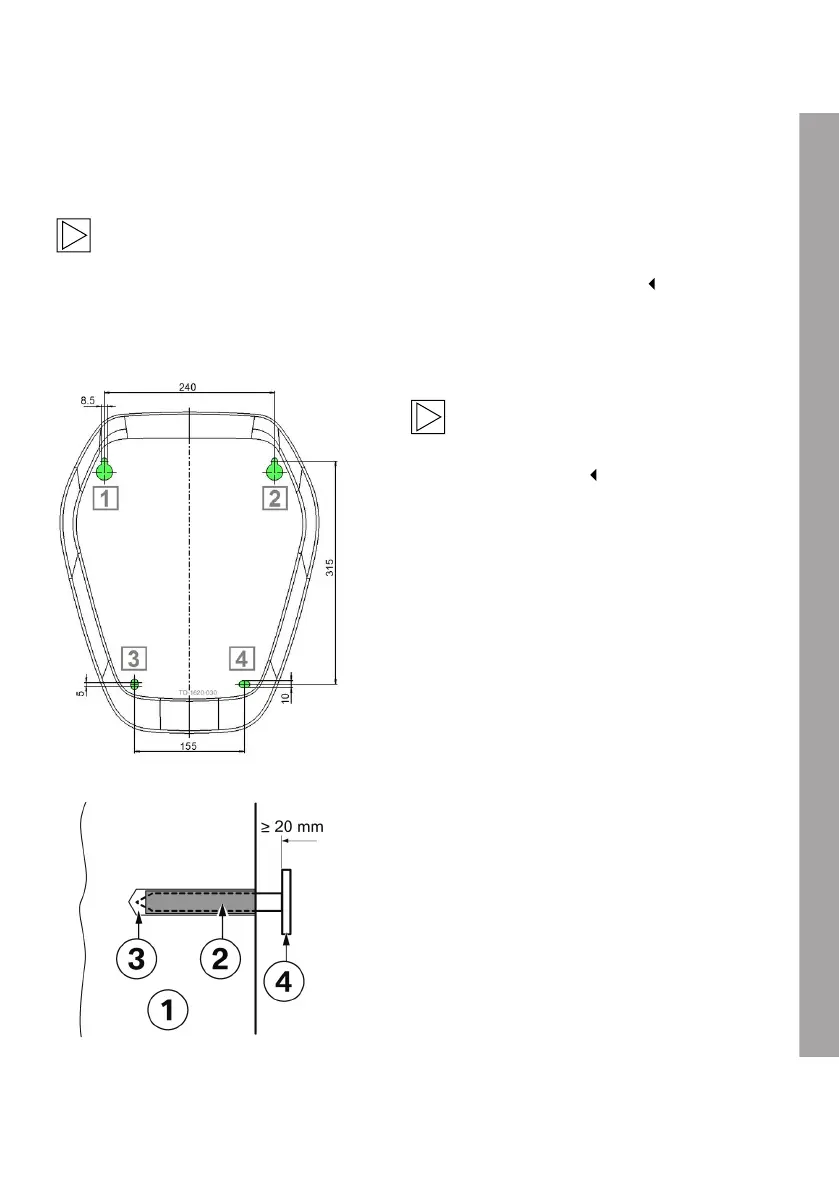

1. Draw the four drill holes 1 to 4 using the
enclosed drilling template and a spirit level.
2. Drill the mounting holes.
3. Insert the rawl plugs.
Upper fastening screws
1. Screw in the two top wafer-head screws, with a
distance to the wall ≥ 20 mm.
1 Wall
2 Rawl plug
3 Drill hole
4 Wafer-head screw
