Connecting the supply cable
1. Cut the connecting wires to the appropriate
length. They should be kept as short as
possible.
Note
The PE conductor must be longer than the
other conductors.
2. Strip approximately 12 mm of insulation of the
connecting wires. We recommend the use of
wire-end ferrules for fine connecting wires.

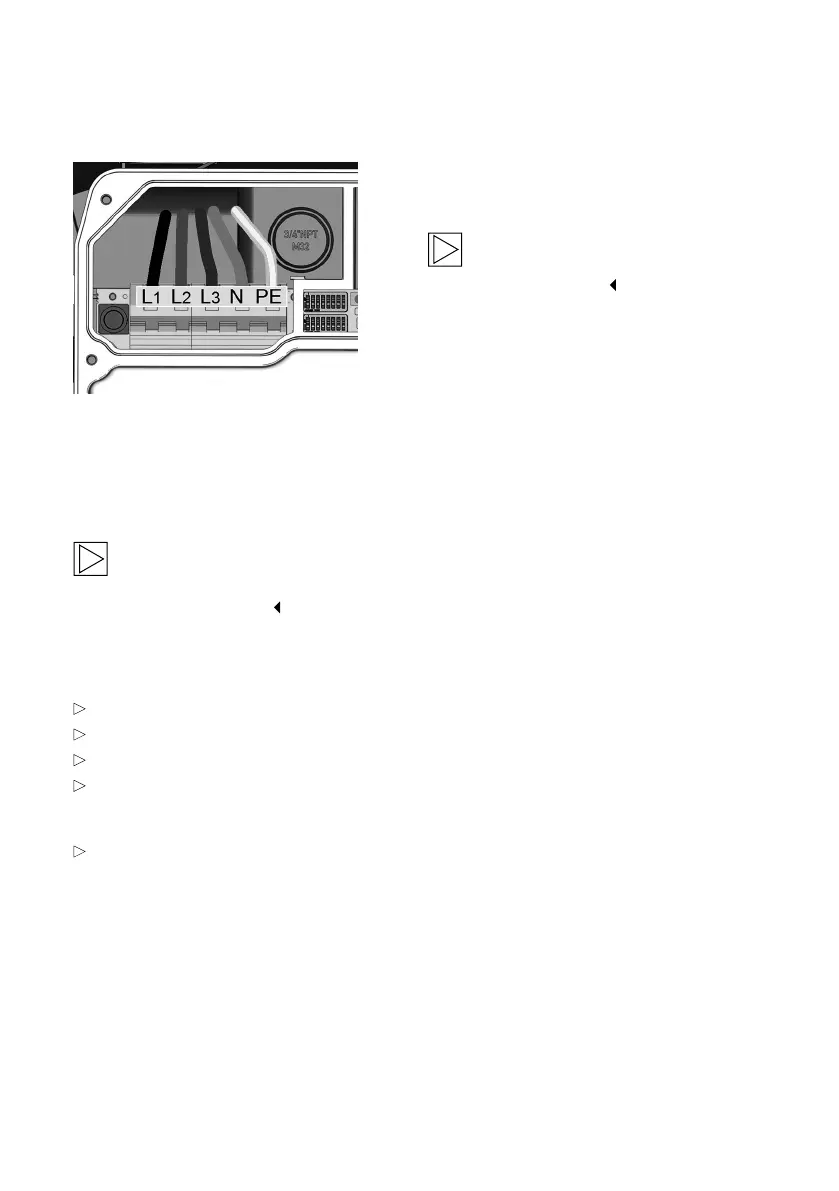

3. Connect the supply cable L1, L2, L3, N and
PE.
1-phase connection
It is also possible to connect the Wallbox on a
1-phase basis. Use terminals L1, N and PE for
this purpose.
Note
Make a note of which outer conductor you connect to terminal L1 if you are installing multiple
Wallboxes in a group.
Technical data of the connection terminal
Rigid (min.-max.): 0.2 – 16 mm²
Flexible (min.-max.): 0.2 – 16 mm²
AWG (min.-max.): 24 – 6
Flexible (min.-max.) with wire-end ferrule:
without/with plastic sleeve
0.25 – 10/0.25 – 10 mm²
Stripping length: 12 mm
32
