BMW R1200RT - Fuses

Fuses

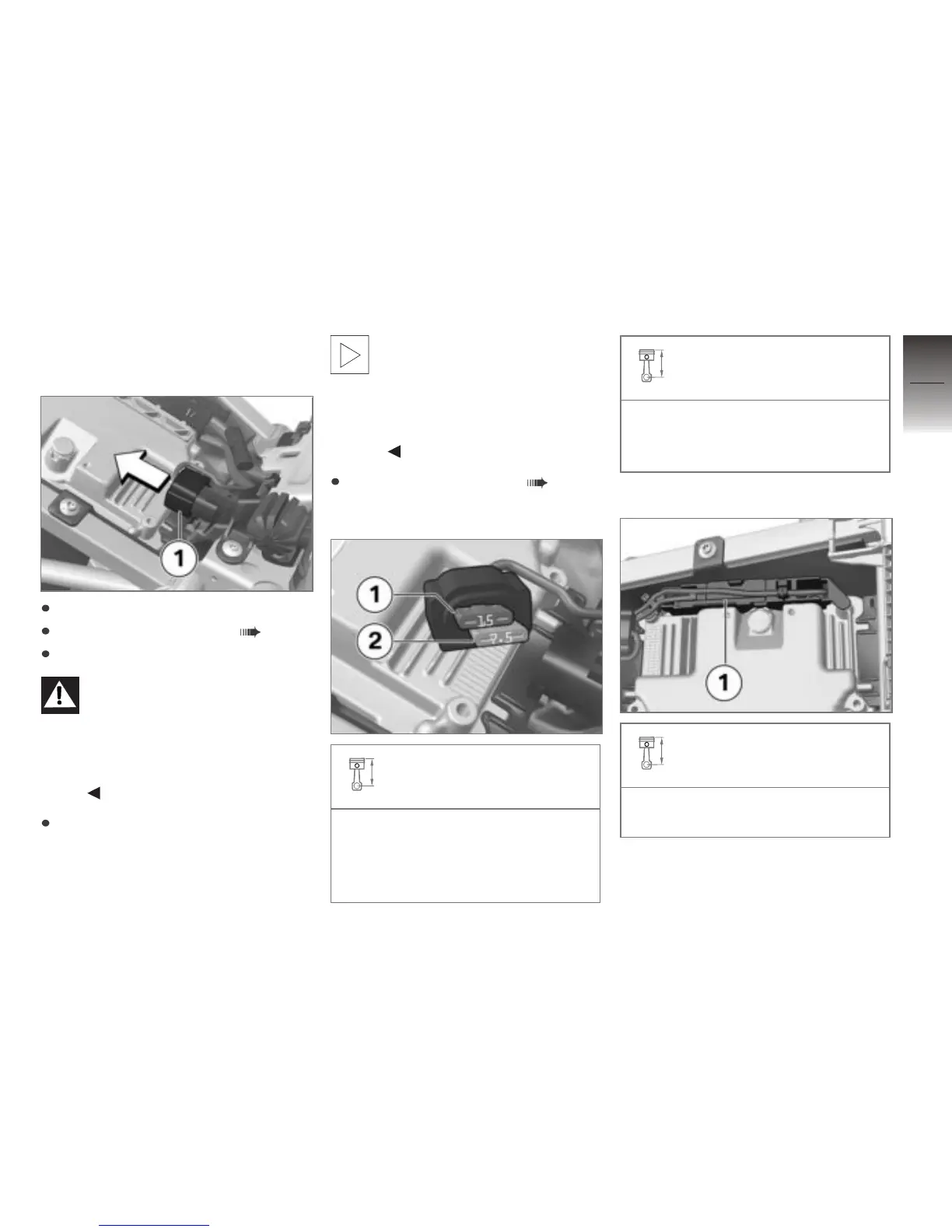

Replace fuses
Switch off ignition.
Removing rider's seat ( 84).
Disconnect plug 1.
If defective fuses are
bridged, this results in a
danger of short-circuit and thus a
danger of fire.
Replace defective fuses with new
fuses.
Consult the fuse assignment
diagram and replace the defec-
tive fuse.
If the fuses blow frequently,
have the electrical system
checked by an authorized spe-
cialized workshop, preferably
an authorized BMW Motorrad
retailer.
Installing driver's seat ( 84).
Fuse assignments
Fuse box
15 A (Slot 1: instrument clus-
ter, anti-theft alarm system
(DWA), ignition lock, diagnostic
socket, Topcase light)
Fuse box
7.5 A (Slot 2: left multifunction
switch, Tire Pressure Monitor
(TPM), audio system)
Fuse carrier
50 A (Fuse 1: alternator regu-
lator)
7
143
z Maintenance
