9

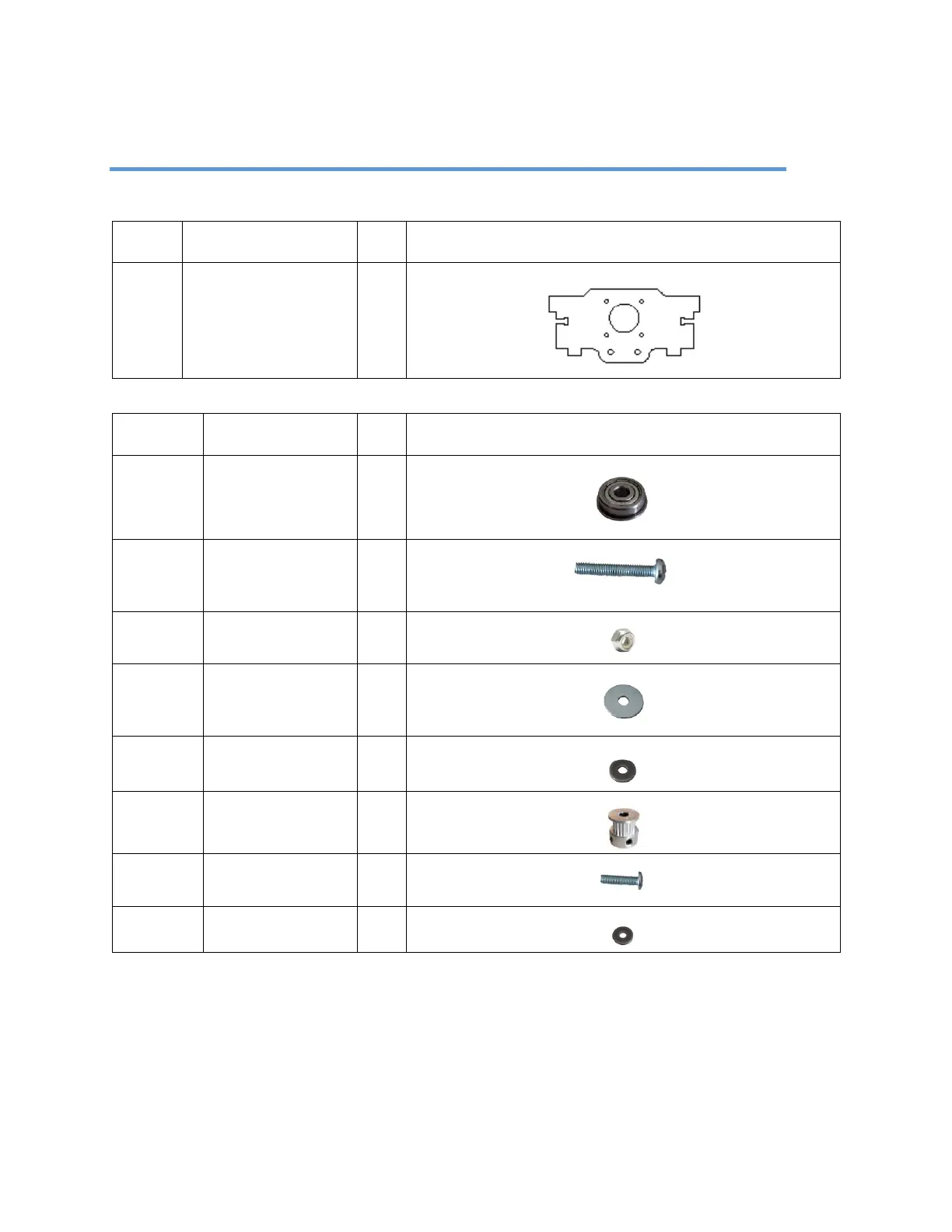

Belt Drive
Wood Components (Included with Kit)
Description
Qty
XY Stepper Motor
Mount
3
Required Hardware
Part #
Description
Qty
H86
Flanged Bearing
F635Z
12
H48
M5 x 30 Machine
Screw
6
H49
M5 Lock Nut
6
H50
Idler Fender
Washer
18
H89
Small Black
Washer
12
H84
GT2 Pulleys
3
H37
M3 x 10 Machine
Screw
12
H88
M3 Washer
12
