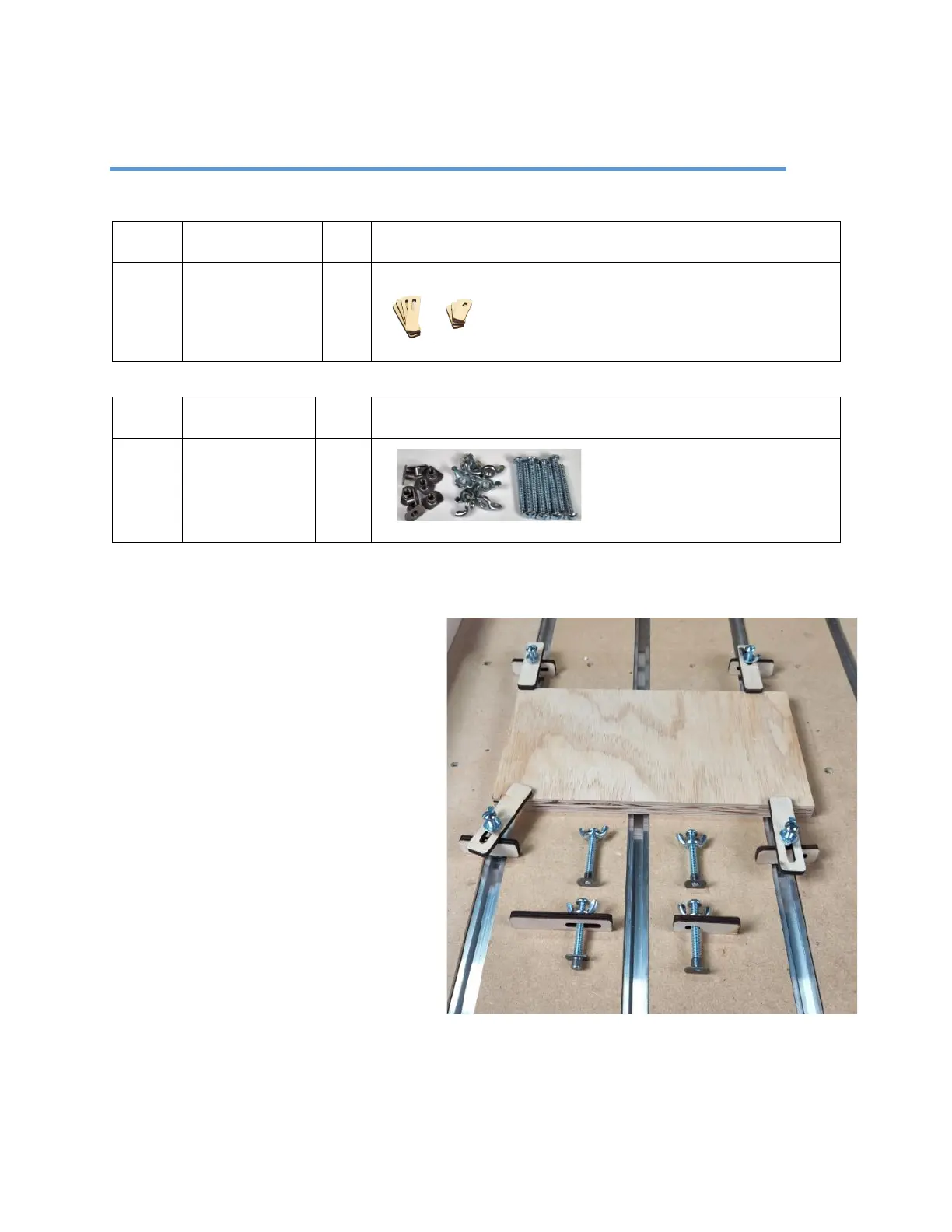

Clamping System
Wood Components (Included with Kit)
Description
Qty
Clamp (long)
Clamp (short)
4
4
Required Hardware
Description
Qty
1/4- 20, 2”
Screws,
Wingnuts,
T-Nuts
8 ea.
The BobsCNC supplies wooden
clamps that are secured to the
aluminum T-Slots using ¼ X 20
Machine Screws in conjunction
with T-Nuts and Wingnuts. The
T-Nuts slide into the aluminum
T-Slots and can be tighten within
the slot. The Wingnuts tighten
the wooden clamps against the
workpiece to hold it in position
during the cutting process.
