100

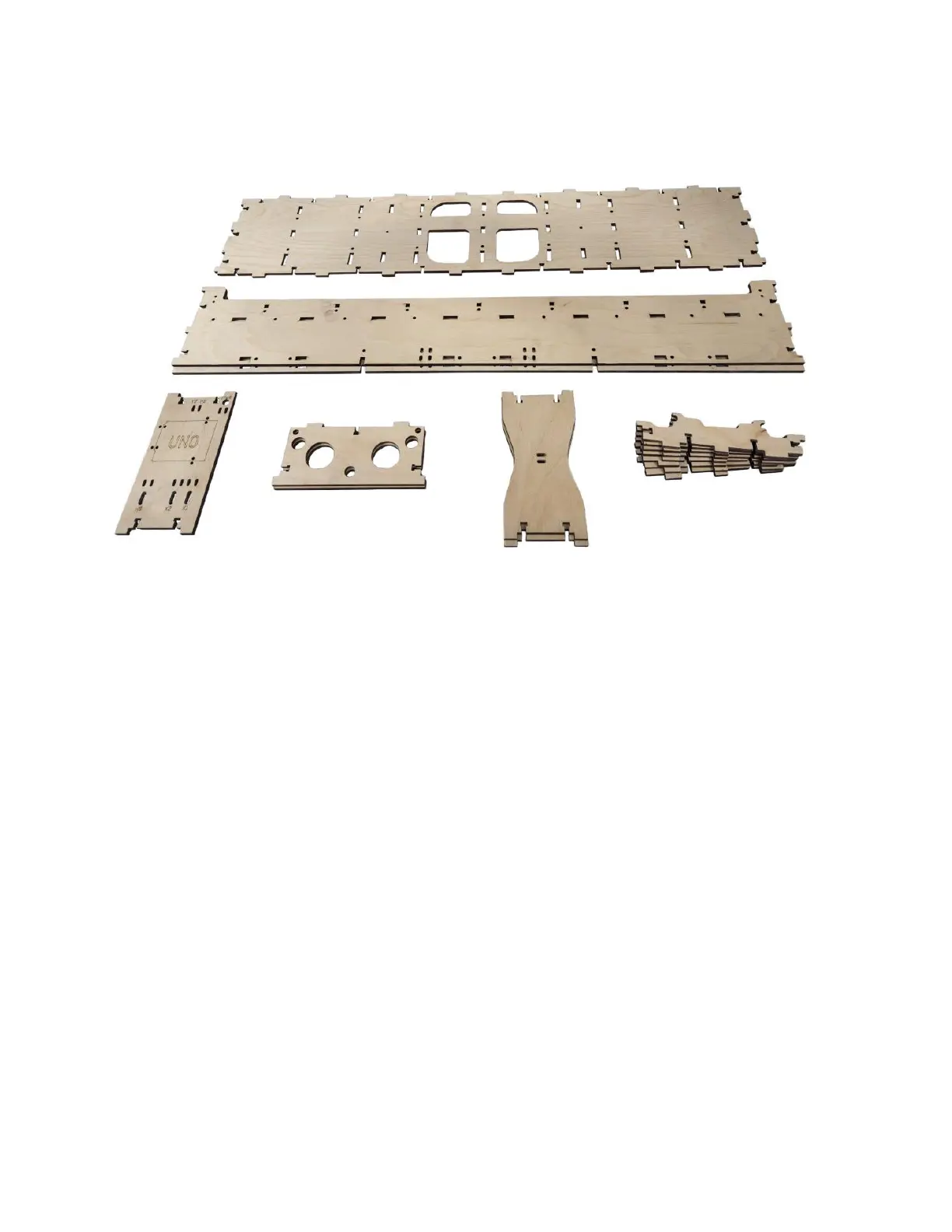

Step 2 Building the Gantry Back Assembly.
NOTE: The two small rectangular cutouts in the Gantry
Frame (QG1) indicate the top of the Gantry Frame.
