103

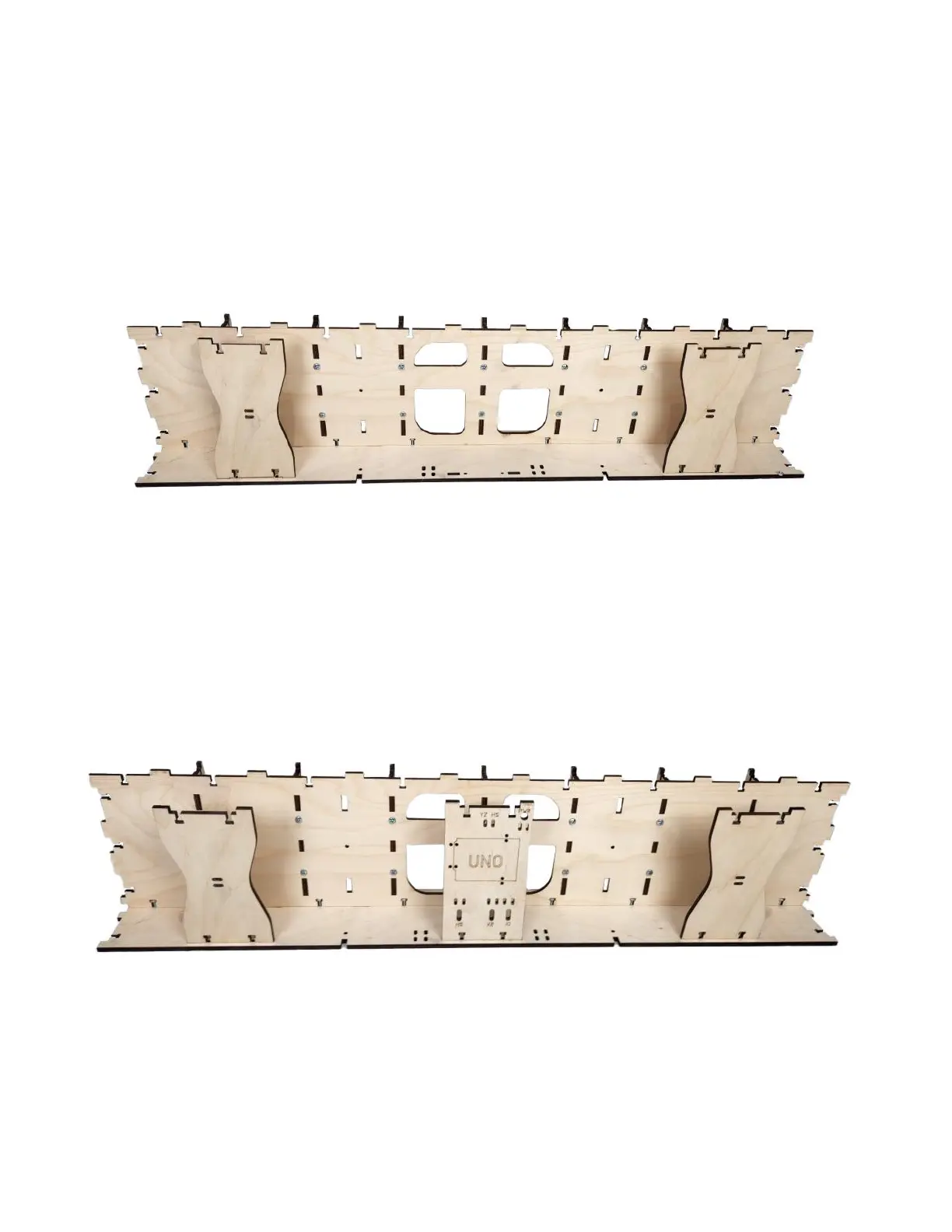

Step 2c Insert the tabs of the two Gantry Back

Supports (QG7) into the slots in the Gantry

Assembly as shown below. Secure each with

two M4 x 16 Machine Screws and Nuts.

Step 2d Insert the tabs of the Controller Mount (QG5)

into the slots in the Gantry Assembly as shown

below and secure in place with two M4 x 16

Machine Screws and Nuts
