BobsCNC QUANTUM MAX User Manual

154

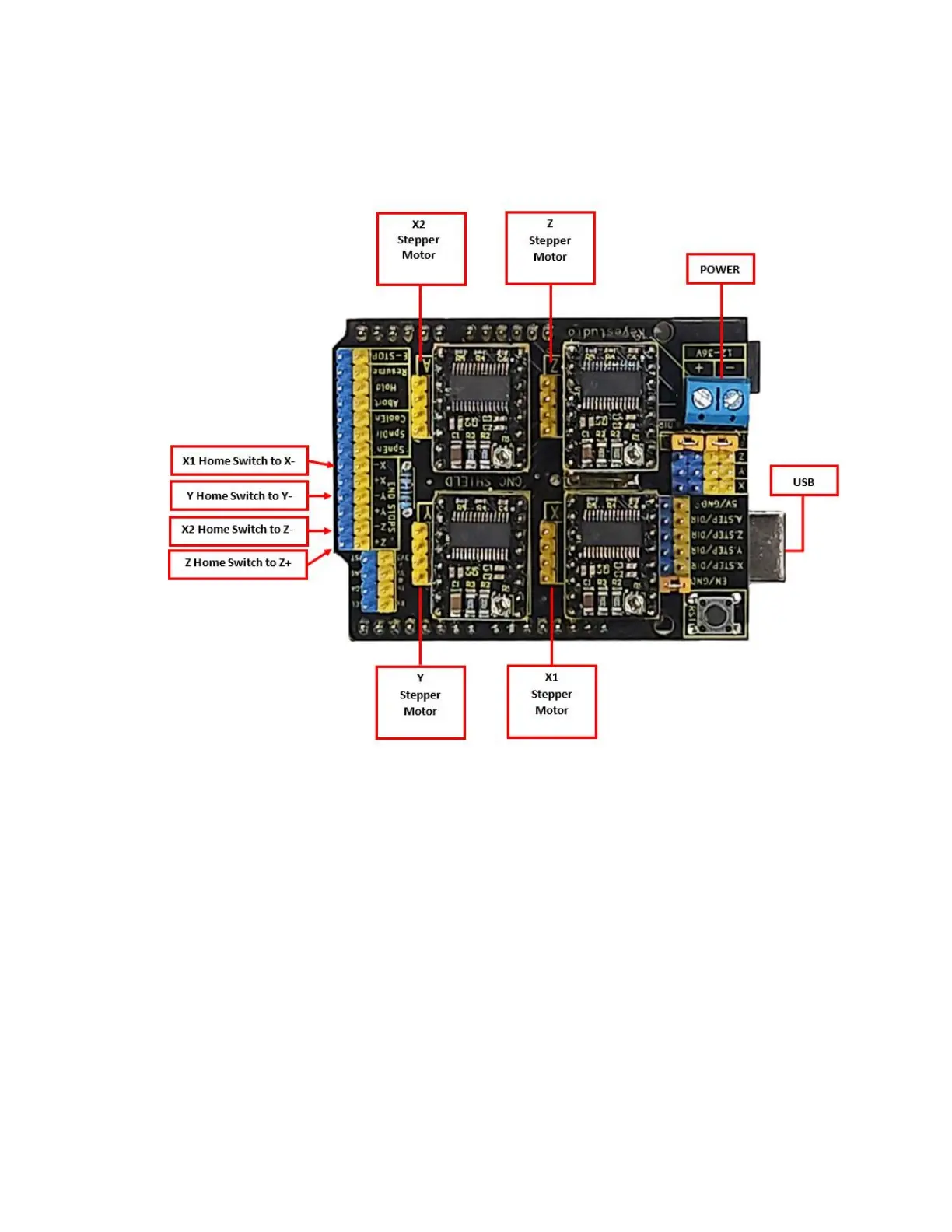

Step 10 Connecting the Home Switches to the Controller.
IMPORTANT. The Controller is mounted so that the PIN
Designations are upside down. It is very important to be certain
the Dupont Connectors at the end of the wires cover the proper
pins on the controller. Use the diagram above for reference
