BobsCNC QUANTUM MAX - Page 162

161

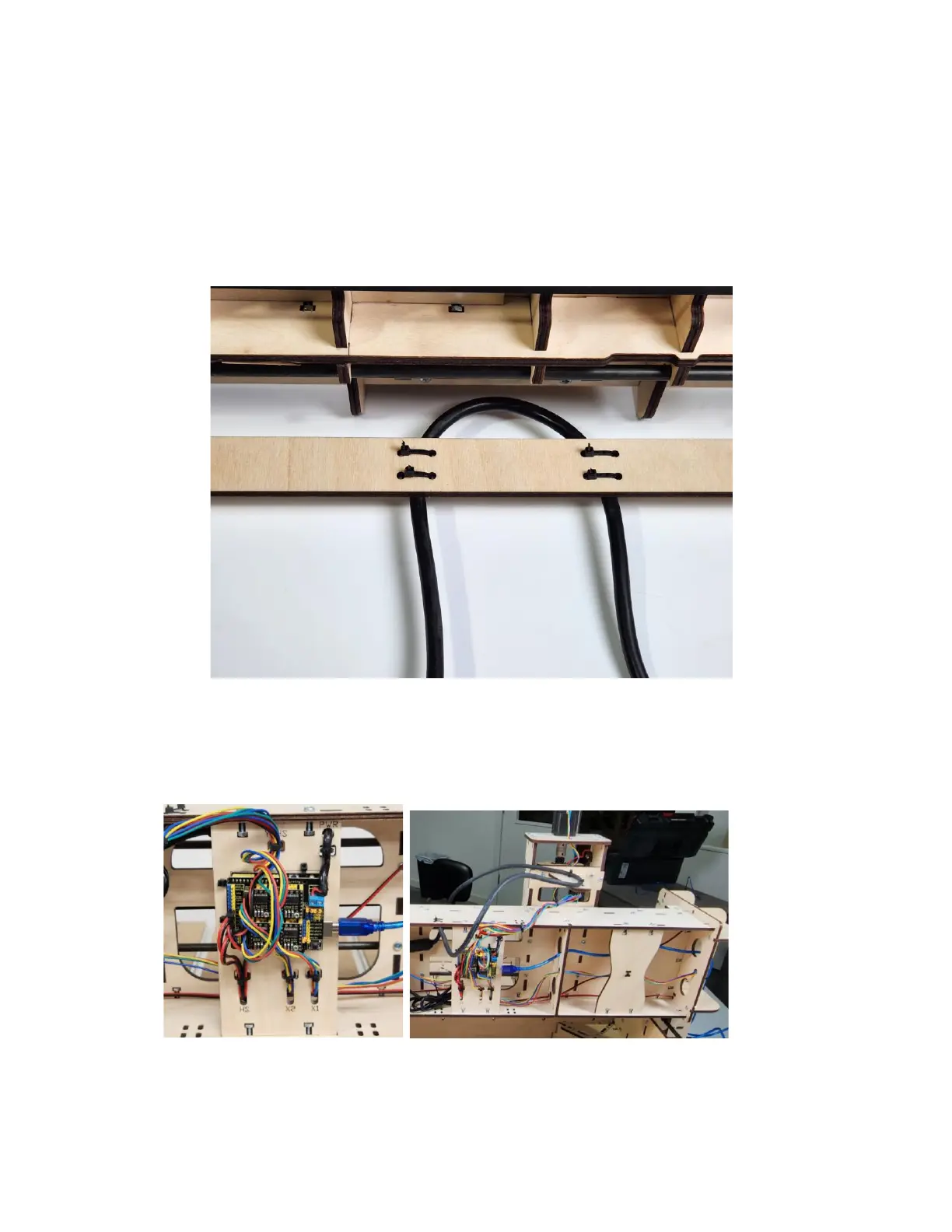

Step 3 Attach the Extension Cord to the Extension Wire
Harness with four Zip Ties so that the Extension
Cord has plenty of slack when the Gantry is at each
end of its travel range.
Step 4 Attach the USB Cable to the Controller and route it,
as shown.
