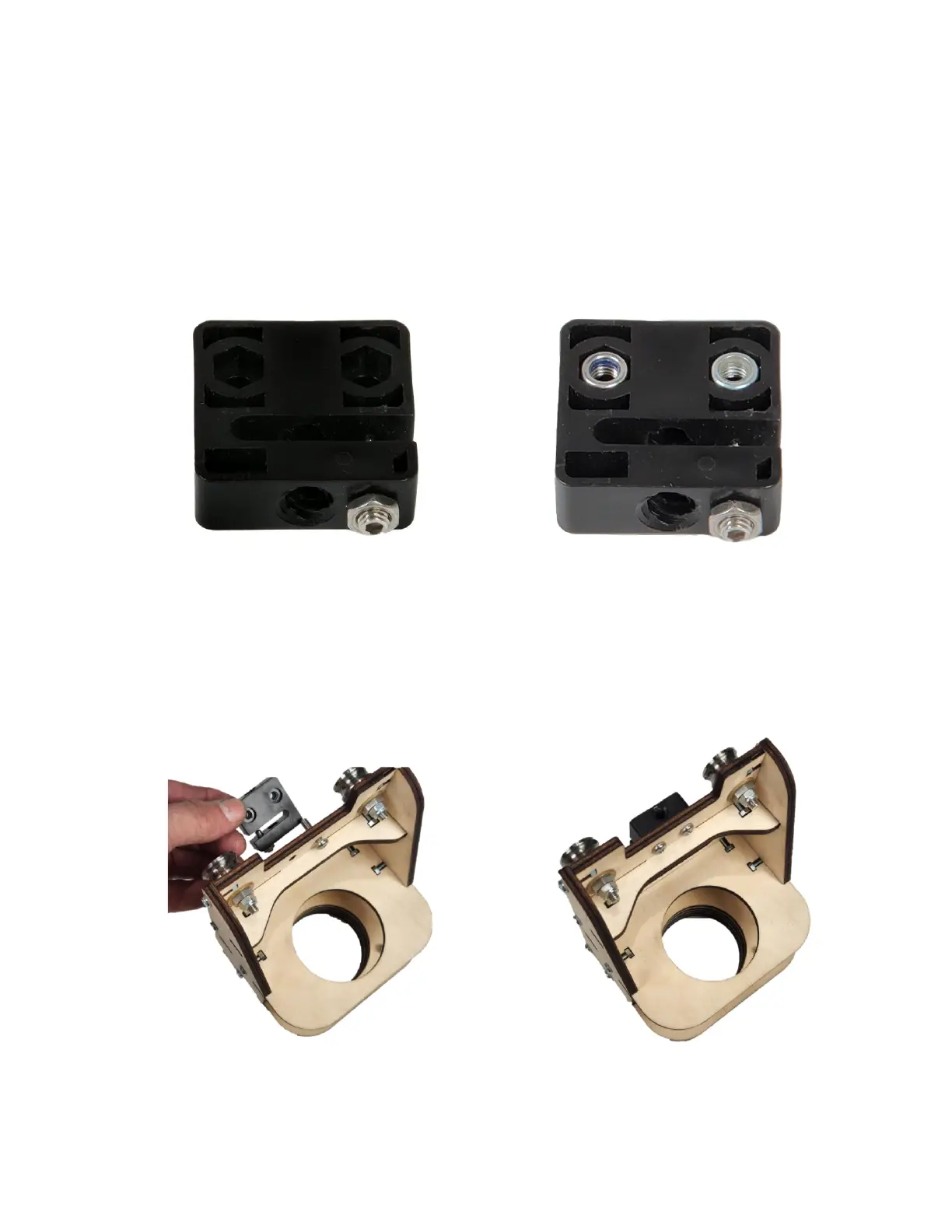

Step 2k Prepare the ACME Nut Assembly (ZD12) by
inserting two M5 Lock Nuts (H49) in the ACME
Block. Note: Make sure the nylon washer on
the top of the Lock Nut is visible after
inserting as shown.
Step 2l Insert two M5 x 18 Machine Screws (H97)
through the Router Mount Assembly as shown
and secure the ACME Nut Assembly in place
as shown.
