BobsCNC QUANTUM MAX - Installing the Acme Screw

82

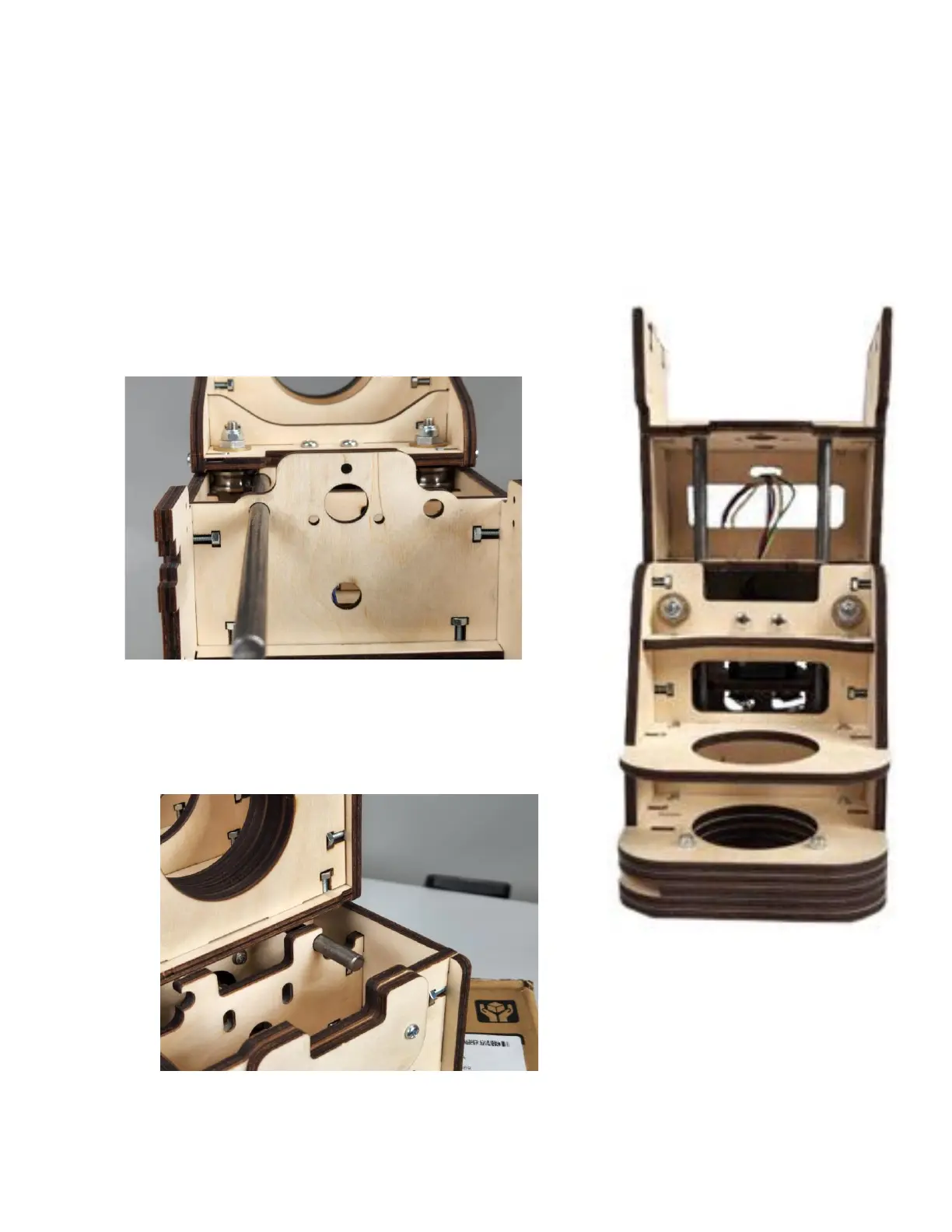

Step 3c Carefully slide the Z Rail (H54) through the
hole in Carriage Top Support (QY2), through
both Outer Rail Supports (QY8) and past the
Bearings until it is seated at the bottom of the
Y Carriage Assembly.
Top View
Bottom View
