Step 5b Route the Home Switch wire down

through the access hole and through

the elongated hole in the Carriage

Frame, as shown.

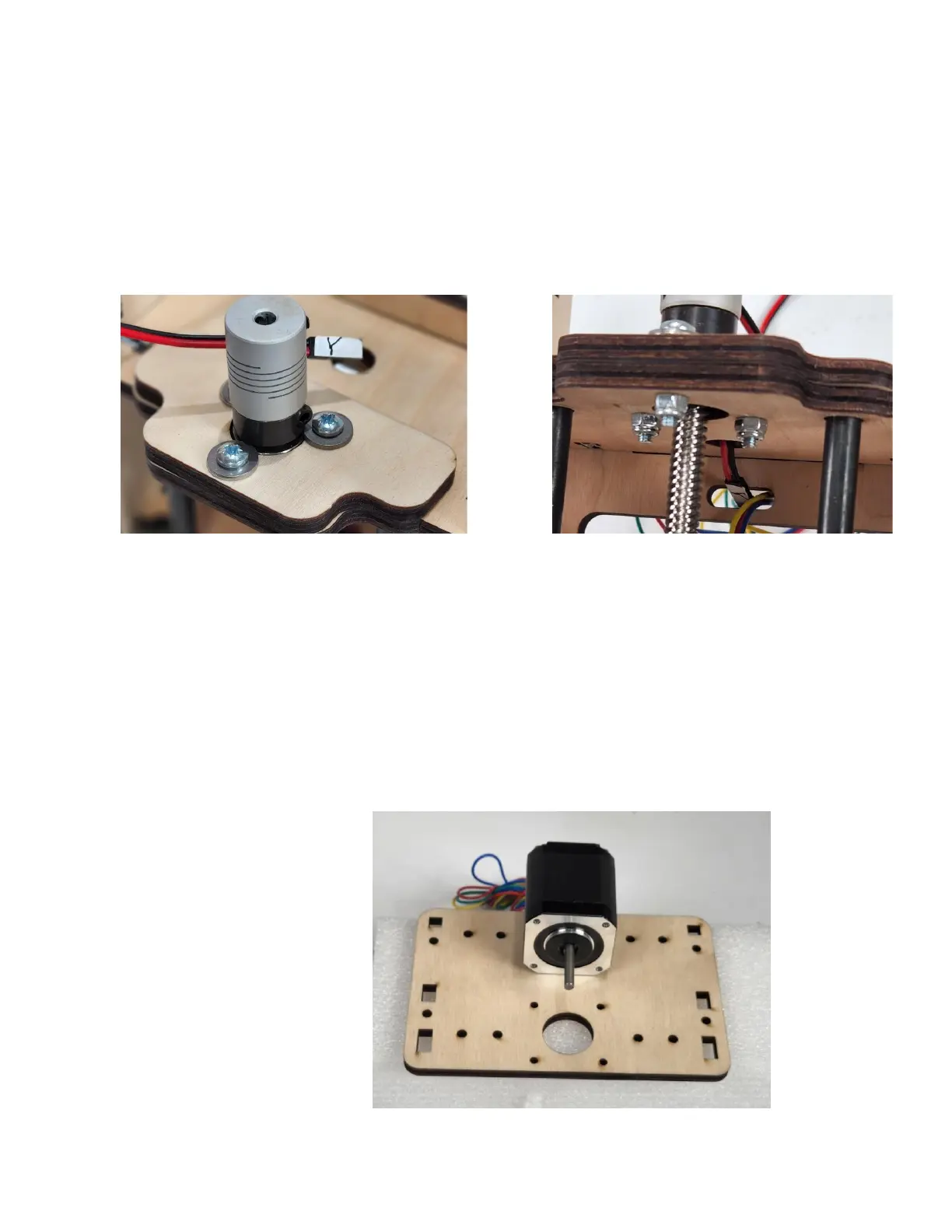

Step 6 Installing the Z Stepper Motor.

Step 6a Mount the Z Stepper Motor through the

large hole in the (QY1) Z Stepper Motor

Mount. Secure with four M3 x 10

Machine Screws (H37) and M3 Washers

(H88).
