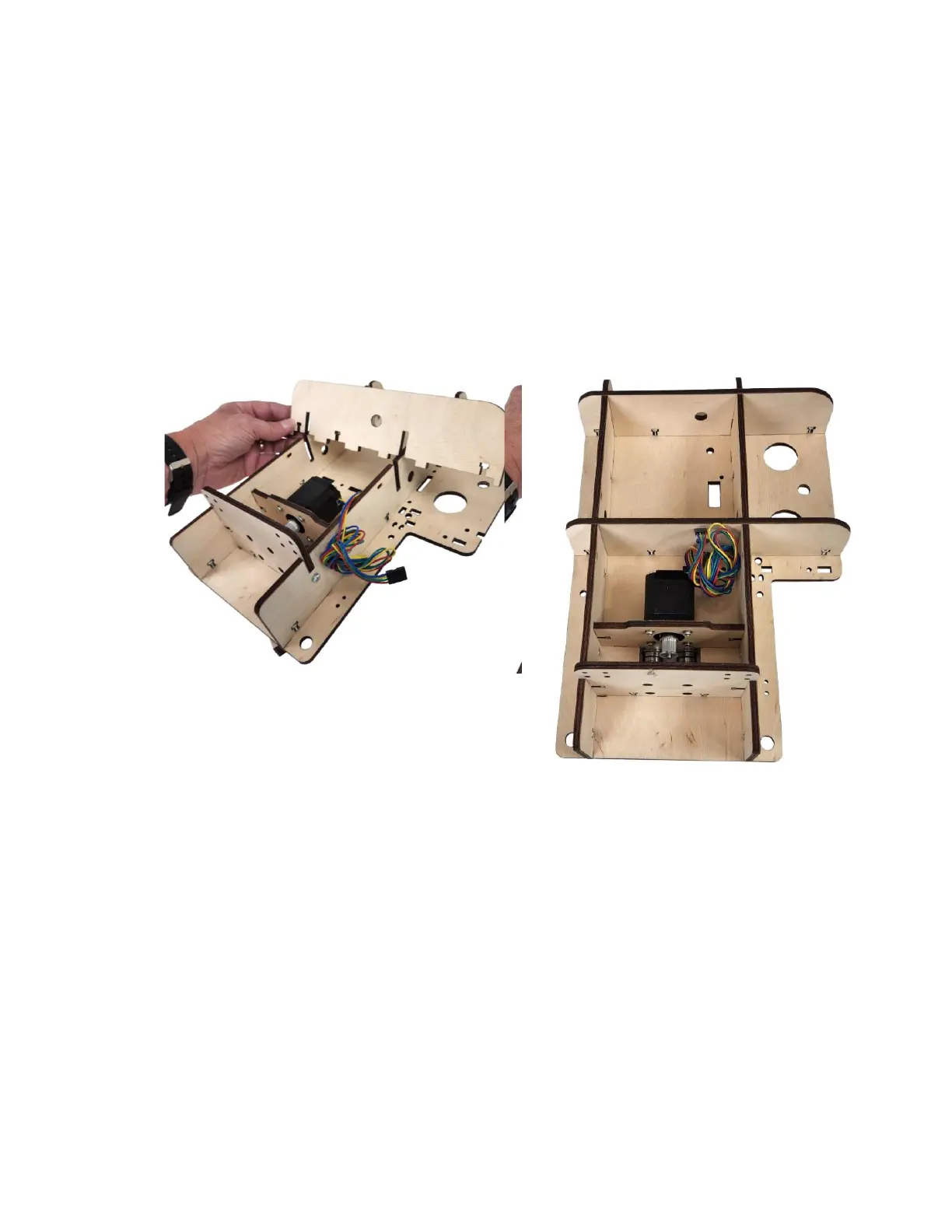

Step 1e Align the slots of the two Gantry Cross Braces
(QG3) with the slots in the Gantry Side
Assembly. Carefully insert the tabs in the
corresponding slots and secure each with
three M4 x 16 Machine Screws and Nuts.
Repeat these steps to complete the other Gantry
Side Support Assembly.
