Toplift / Toplift ECO
13 92023200095

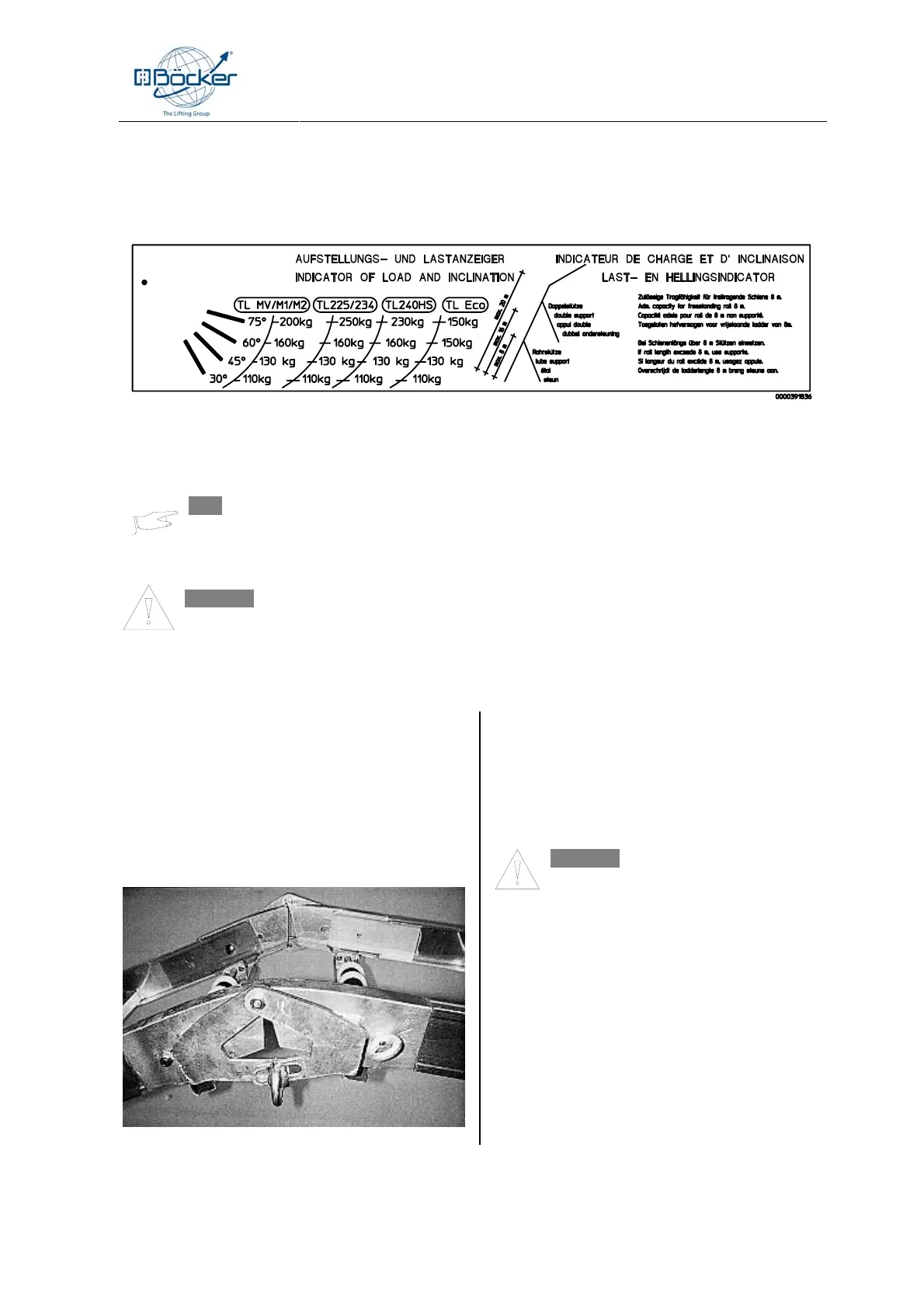

4.5 Load indicator
The capacity of the hoist depends on length and angle of inclination of the rail. Refer to the load indicator on the
foot section (picture 4-4).
picture 4-4
The load indicator is placed on the left side of the foot section. The indicator shows, to which height the rails
can be loaded in the current inclination. The maximum load is 250 kg.
Hint! See to it that the load indicator can always move freely so that the exact inclination can be
seen.
Attention! If, by assembling, the extensions with the old profile form (type TOPLIFT Standard, B or
C) and extensions with the new profile form (Type TOPLIFT standard 150, 200 or 200 HS) are com-
bined, then the total maximum capacity is 150 kg.
4.6 Mounting of bend section
1. Set up the rail with carriage fitted.
2. Place the bend section and tighten the screws.
3. Add further extensions (min. 1 meter).
4. Add the head section and attach it to the exten-
sions.
5. Adjust the bend section according to the inclina-
tion of the roof and tighten screws firmly.
picture 4-5
4.7 Support of the rail section
The rail should be supported by the adjustable tube
support if the rail is longer than 8 m or inclined more
than 75°.
Attention! When transporting long goods
the rail has always to be reinforced by the
tube support. It is important that the maxi-
mum unsupported length does not exceed 8 m. If the
rail length exceeds 13.30 m (without rail being sup-
ported by roof), use an additional tube support or the
Alu-support for window openings.
