5 Application of the hoisting de-
vices
Warning! The transportation of per-
sonnel and entering the platform is for-
bidden.
For the intended use of the Toplift the only hoisting
devices allowed to be used are those described
here.
All hoisting devices are fixed to the carriage by 4
pins. The upper pins are secured by spring lockers

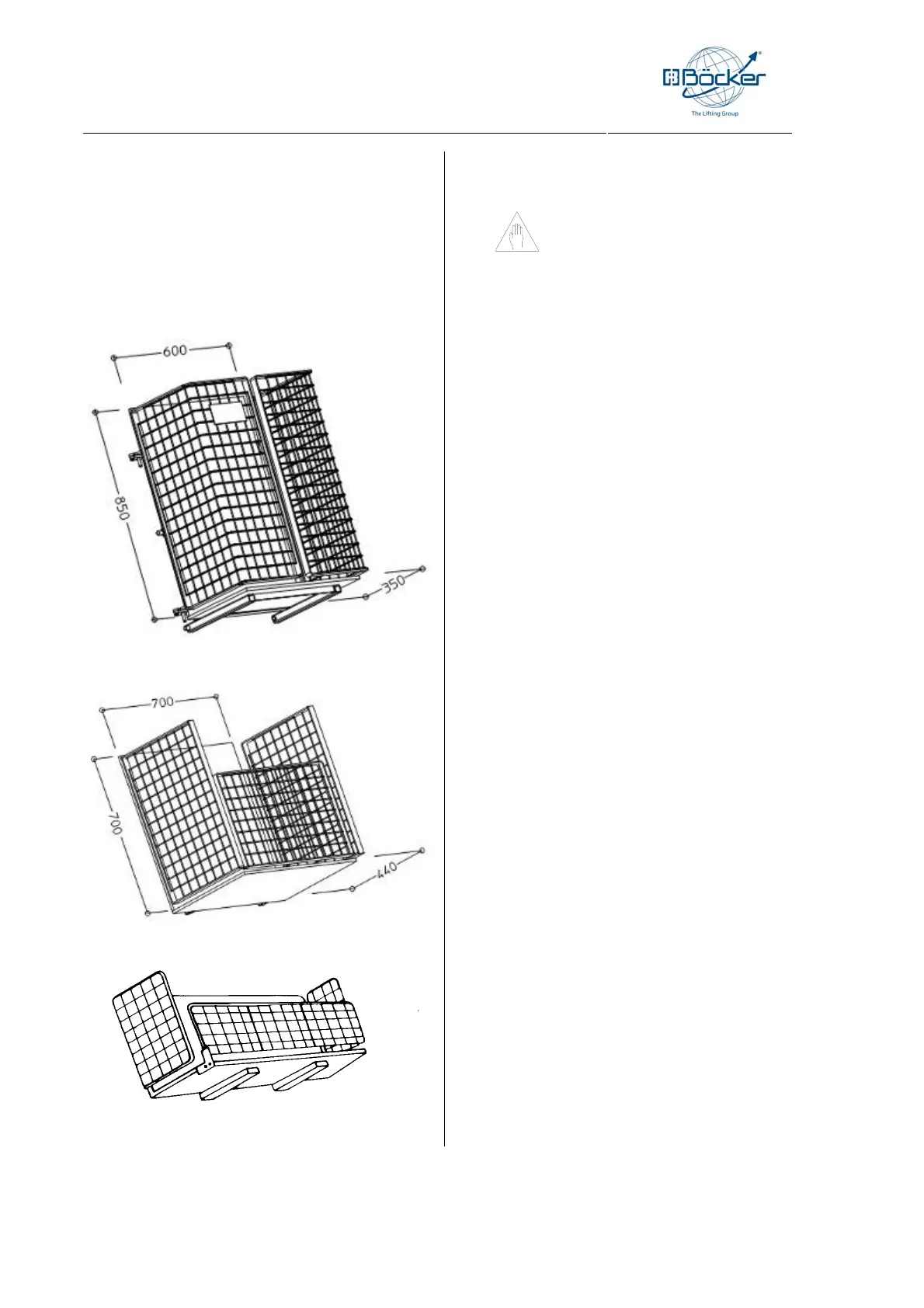

5.1 Standard universal platform
The dimensions of the platform are 60x35x85 cm.
The standard universal platform can be used with
the standard carriage as well as with the tilting car-
riage. For loading the universal platform the side
gratings can be lifted up and swung to the side at the
same time. The standard universal platform has a
load-bearing capacity of max. 250 kg, reduction
depending on type.
5.2 Uni-platform comfort
The Uni-platform comfort has a load-bearing ca-
pacity of max. 250 kg, reduction depending on
type. The dimensions of the uni – platform com-
fort are 70 x 44 x 70 cm.
The Uni-platform standard can be used with the
standard carriage as well as with the tilting car-
riage.
5.3 Long-goods-platform
The Long-goods-platform can be used in conjunction
with both carriages. The dimensions of the Longs-
good platform are 120x35x45 cm. For loading, the
gratings can be opened.
