Toplift / Toplift ECO
16 92023200095
picture 4-12
4.16 Electric supply
Warning! Electrical shock,
burning and injuries can result
from:
• Touching
• Damaged insulation
• Unsufficient maintenance
• Short circuit
The electrical connection has to be executed by a
skilled electrician and in accordance with the appli-
cable engineering rules. Electric supply must be
made by a distribution unit with an earth leakage
breaker.
Secure with a 16A time lag
Hint! The cable has be totally un-
wound. The use of the proper supply
cable is essential as otherwise there may be a loss
of voltage resulting in damage in the controls.
Type Toplift 225 / 234 / 240 / Eco/
Furniture (MV,M1,M2) :
Cross section of the cable: 3 x 2.5 mm²
Maximum length supply line: 40 m
Type Toplift 225 / 110 Volt/50 Hz:
Cross section of the cable: 3 x AWG10
”
(3x5.26 mm²)
Maximum length supply line: 40 m

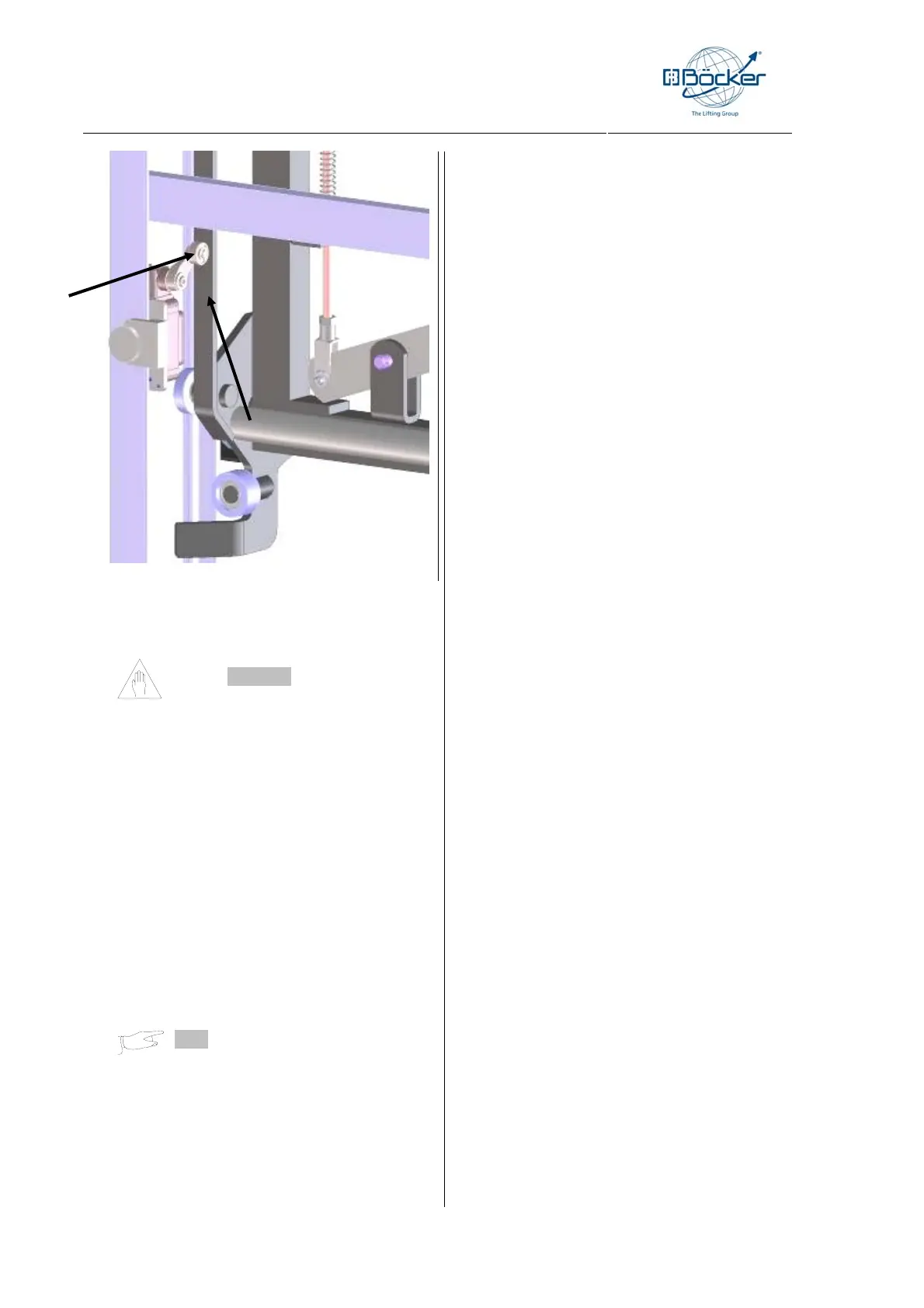

Furniture carriage
limit switch
roll
