4.17 Fixing the hoisting rope
Attention! Wear gloves to avoid injuries while fix-
ing the hoisting rope.
1. Take the end of the hoisting rope in one hand
and operate the hand control with the other
one. Push the button "DOWN".
See to it that the rope remains raught during
unwinding, to avoid that the slack rope device
stops the motor.
2. Take the rope up the righthand side to the head
section.

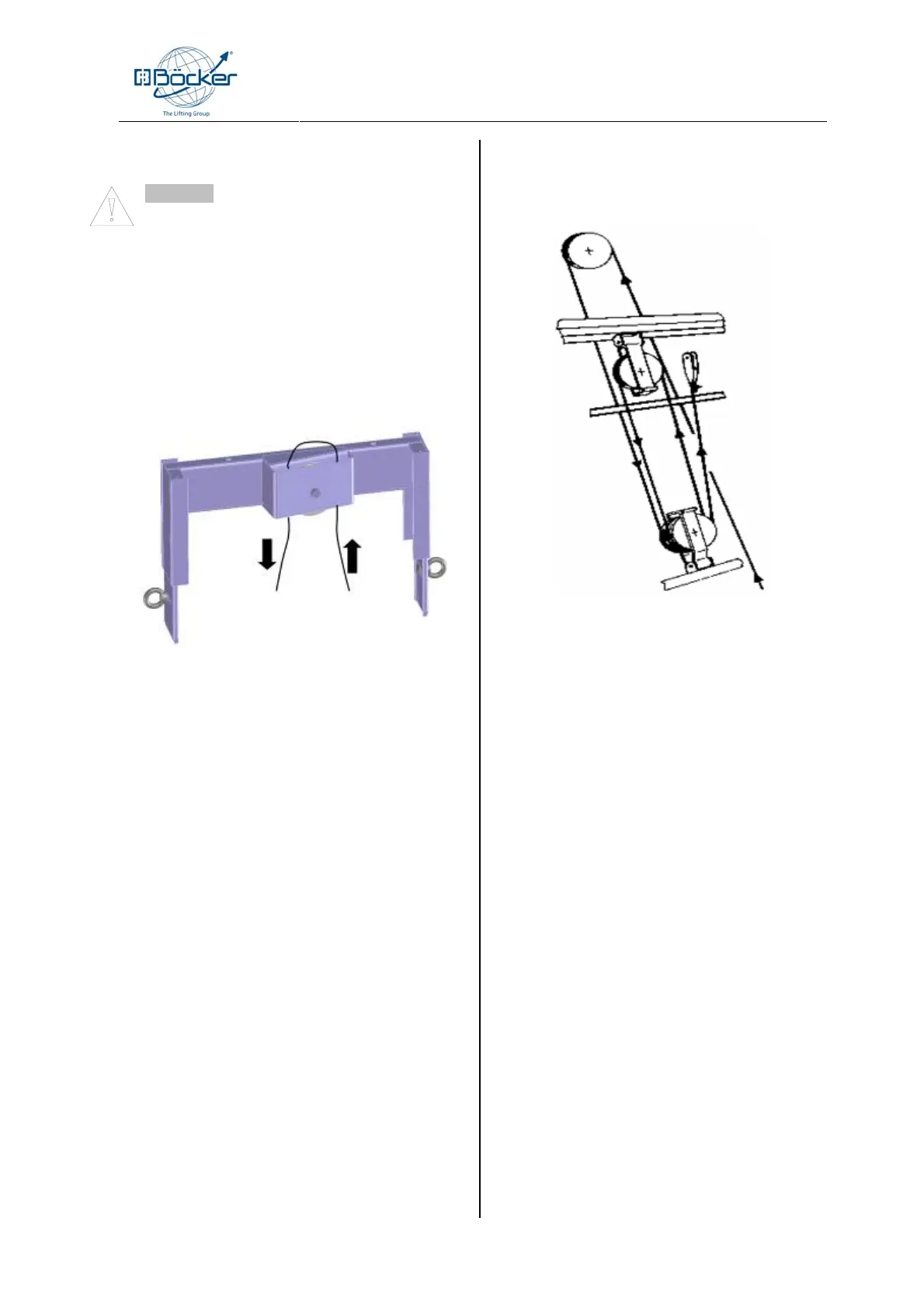

picture 4-13
3. Put the rope from the right to the left over the
rope pulley. ( see picture 4-13) .
Make sure that the cable is seated correctly
in the trail of the cable deflection pulley.
4. Lead the rope down at the lefthand side.
4.17.1 Attaching the rope to the stan-
dard carriage + furniture car-
riage
The rope locker at the end of the rope is to be at-
tached to the rope connection on the standard car-
riage (pins). At this point the broken rope device is
still on, push the button UP on the hand control to
tighten the rope.
4.17.2 Attaching the rope to the tilting
carriage
1. Open the lids of the rope pulleys.
2. Lead the rope from the left to the right on the
lower pulley at the rear. (The rope lies behind
the bar of the broken rope device)
3. Now lead the rope from the right to the left over
the pulley roller and switch back the lid. ( The
rope lies now in front of the bar of the broken
rope device)
4. Lead the rope from the left to the right over the
the upper pulley in the front and close the lid.
(The rope lays in front of the bar of the broken
rope device)
5. Attach the rope locker to the carriage.
6. Check the moving direction of the rope. Seen
from above the rope goes two times behind the
bar of the broken rope device and three times in
front of it.
4.18 Test run
Before the initial operation of the TOPLIFT check
whether:
• All safety devices are in working order,
• The limit switches at the top and at the bottom
are in order,
• The broken rope device on the carriage is in or-
der,
• The loading area is secured,
• When using the bend section, the bend section
and the extensions are properly supported on
the roof,
• The inclination of an extension on the roof is at
least 25°,
• The hoist is supported,
• The voltage is sufficient, when the TOPLIFT is
operated carrying the rated load.
