14

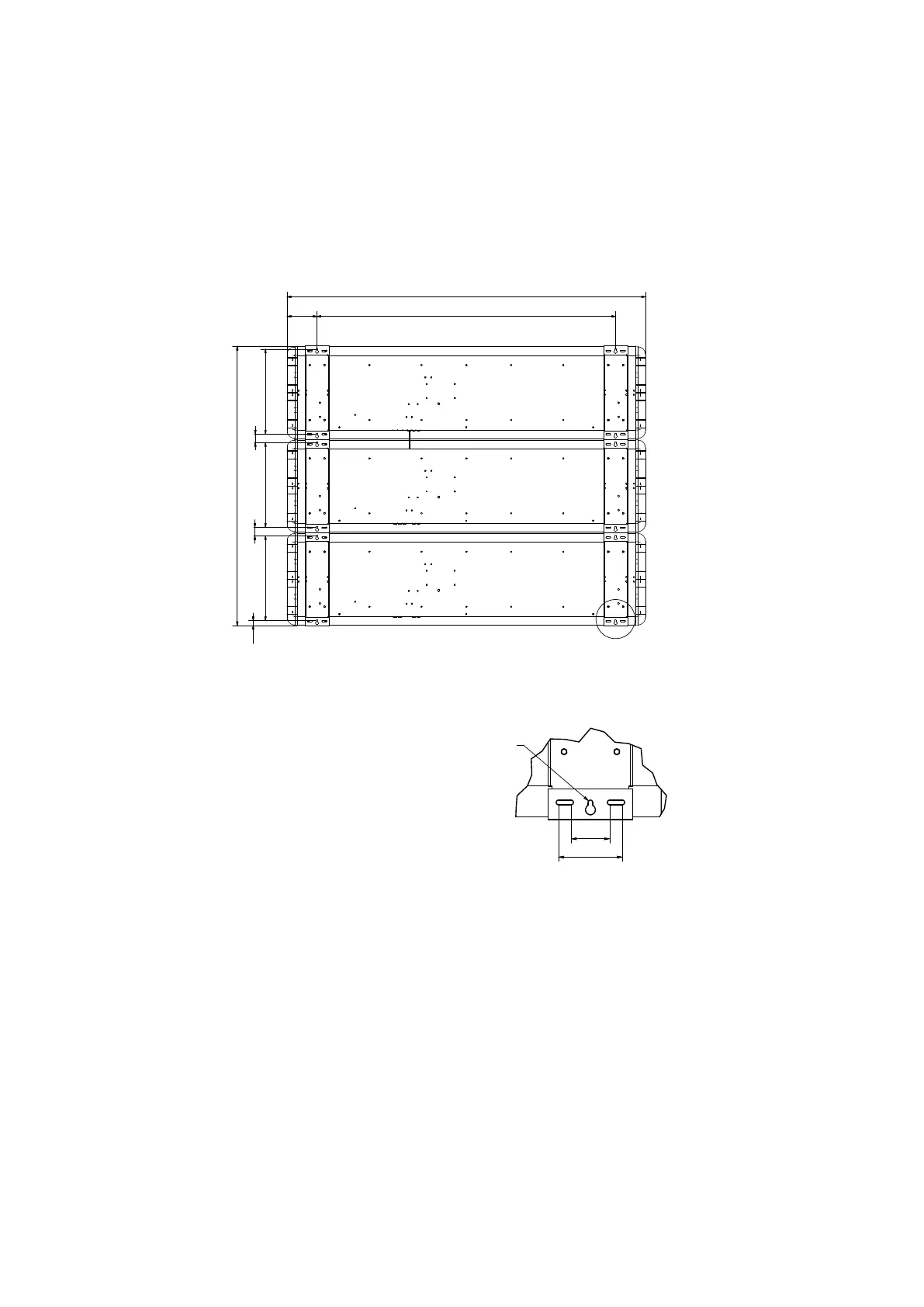

• MOUNTING TO A WALL
• Fix the MASTER casing to the wall, respecting the measurements below.
• Fix the SCORE LOC casing to the wall, respecting the measurements below.
• Fix the CHRONO casing to the wall, respecting the measurements below.
NOTE: Do not x the rear cable slot.
NOTE 2: Do not x the casings to each other.
C
Pear-shaped hole for wall mounting
with screws and plugs Ø8
R4.50
73
121
C
567 567 567
33 58 58
1870
2000
2400
200
MASTER panel
TIMER panel
HOME SCORE panel
