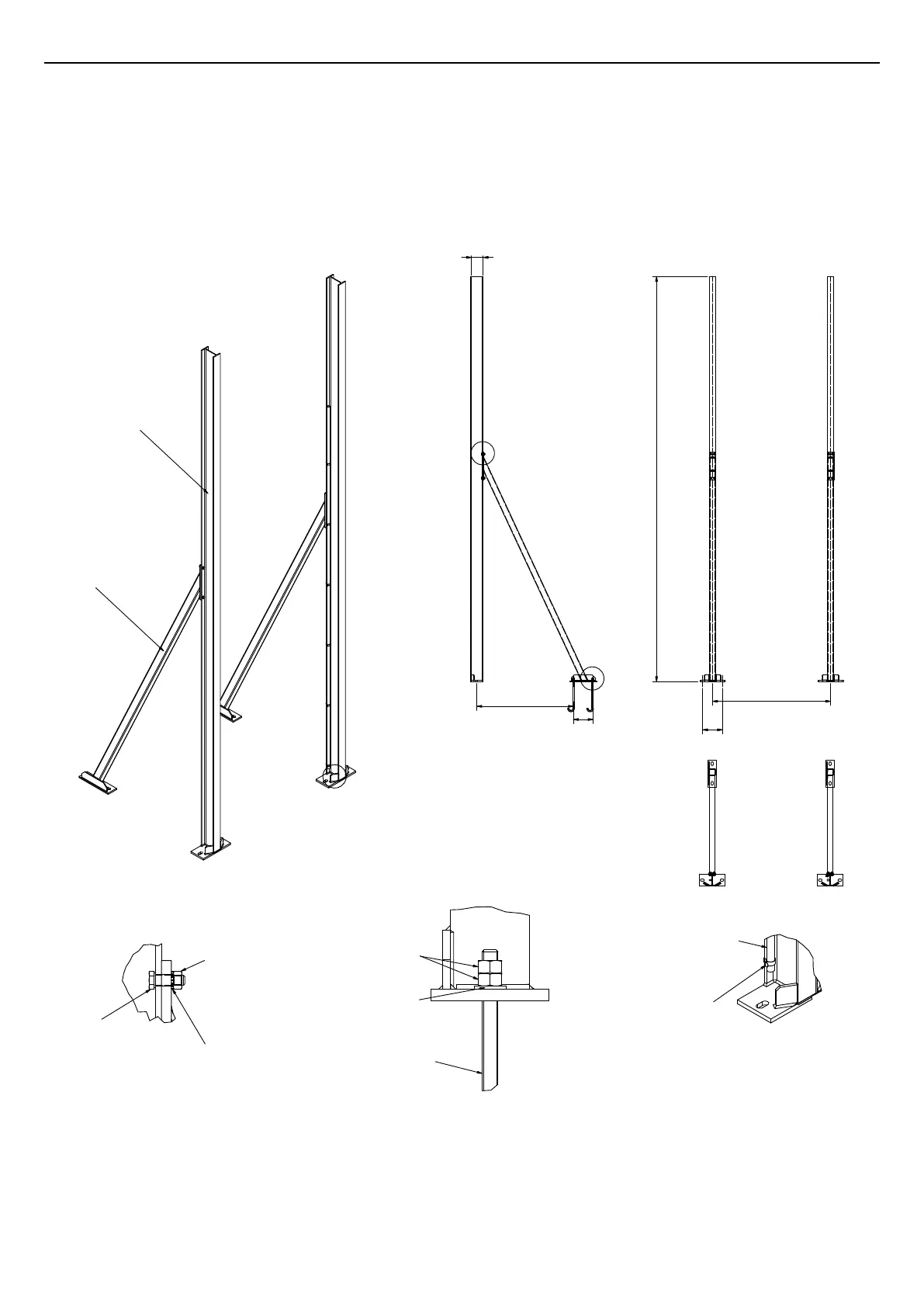

B/ Type B support (ref. 915171)
• Pour 4 blocks of concrete for the 2 posts and the 2 prop beams with the help of the jigs (915192).
• Seal the 8 anchor bolts (915178) in each block (2 anchors per block) and then tighten the nuts (B).
Make sure you carefully check the spacing and height of the anchor bolts.
The volume of the blocks is to be calculated in accordance with the nature of the terrain and the wind exposure of the
board.
• Assemble the upright posts with the props and lock the nuts (A).
Screw TH M10x30
Serrated washer Ø10
Nut HU M10
A
200
1200
4120
Nut HU M16
Bent anchor bolt M16
B
Flat washer M16
C
Rigid insulating tube and clips
to be assembled on site
Rigid insulating PVC tube Ø20
Plate edge clips
Upright post
Prop beam
C
A
B
984
200
