22
D/ Peripheral advertising panels for BT 2045 ALPHA (ref. 915184)
• Attach 2 advertising panels (D) to each other. Note: it is important to position the advertising panels
correctly, in accordance with their labels. On assembly the labels must be side by side as shown
below (H).
• Place the assembly above the BT 2045 board on the 2 posts of the support with the clamps and the
threaded rods (E).
• Attach the advertising panel reinforcement (F) and the advertising attachment bracket (H).
• Attach an advertising panel on the left side of the board (rear view) below the 2 advertising panels (C).
• Attach an advertising panel on the right side of the board (rear view) below the 2 advertising panels
(C).
• Attach 2 advertising panels (D) to each other. Be careful of the position of the label (H).
• Place the assembly below the BT 2045 board on the 2 posts of the support with the clamps and the
threaded rods (E).
• Attach the 2 bottom advertisements to the side advertising panels (C).
• Attach the advertising panel reinforcement (F) and the advertising attachment bracket (H).
• Attach the BT 2045 bottom advertising bracket (G).

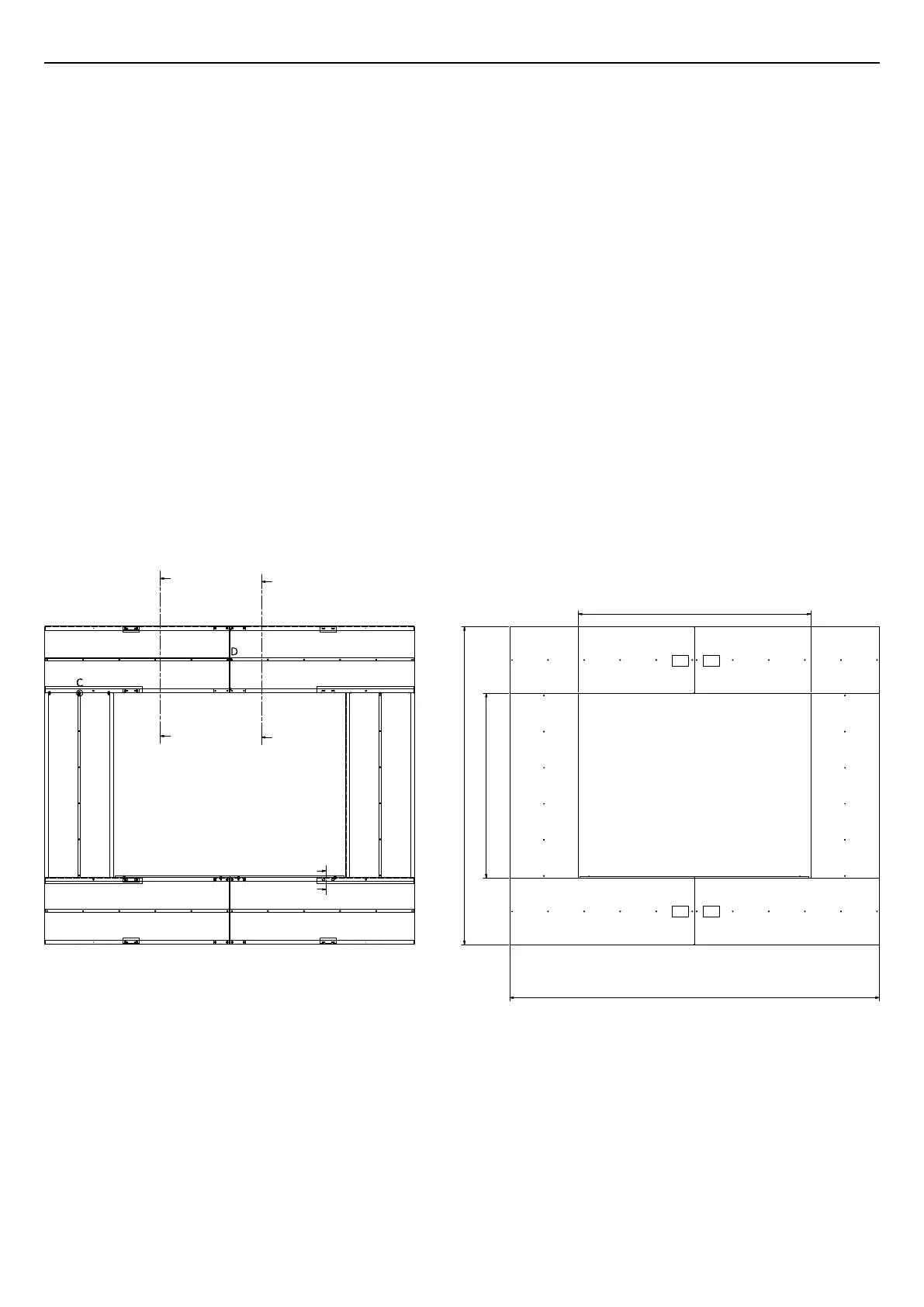

Rear view
A
A
B
B
G
G
Front view
2360
3225
1875
3750
HH
HH
