15
G/ BT 2045 CLUB (ref. 915153)

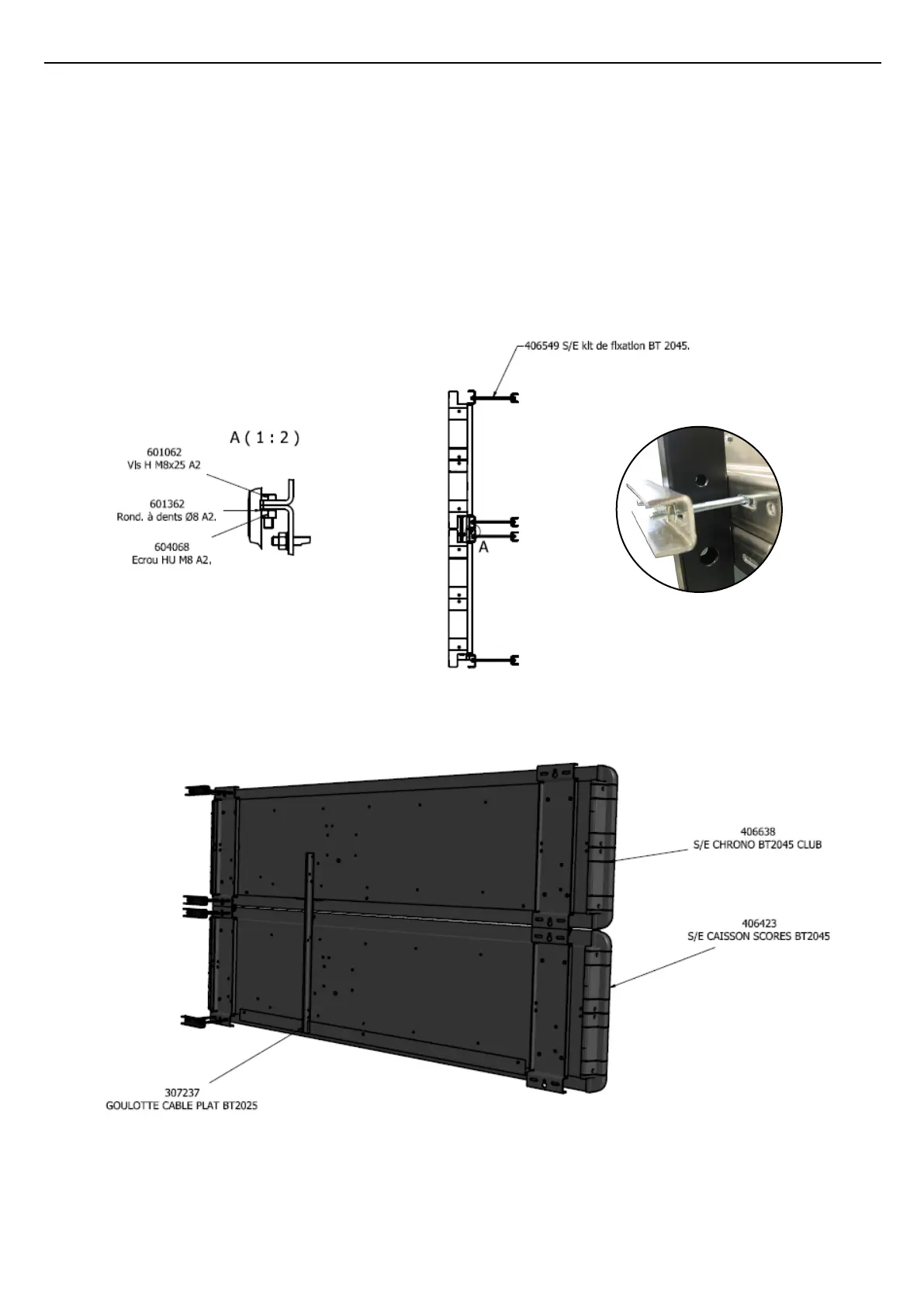

• MOUNTING ON POSTS
• Attach the SCORE panel on the 2 bottom brackets.
• Attach the timer panel on the support with the 4 clamps and the threaded rods.
• Attach the chrono panel (the 2 bottom brackets) above the SCORE panel (the 2 top brackets).
• Connect the wires (see paragraph VII-C).
• Attach the cable cover with the screws on each ALPHA SCORE panel and then attach the cable duct
to hide the at control cable behind the panels.
