13
F/ BT 2045 ALPHA (ref. 915158)

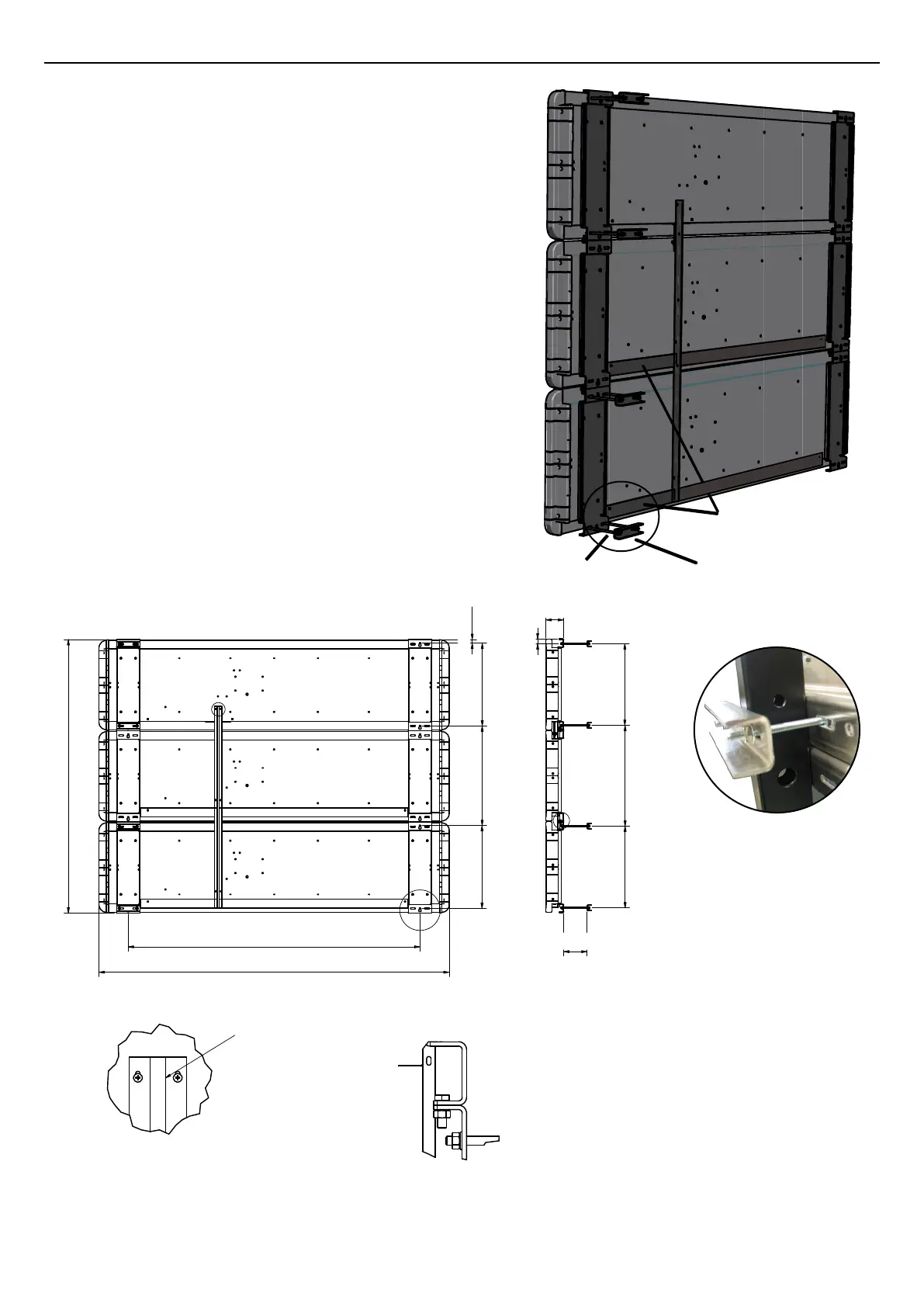

• MOUNTING ON POSTS
• Attach the MASTER panel on the 2 posts with the 4
anges and the threaded rods (D).
• Attach the HOME ALPHA SCORE panel on the 2
bottom brackets (B) above the MASTER panel (the 2
top brackets).
• Attach the timer panel on the support with the 4 clamps
and the threaded rods.
• Attach the TIMER panel (the 2 bottom brackets) (B)
above the HOME ALPHA SCORE panel (the 2 top
brackets).
• Connect the wires (see paragraph VII-C).
• Attach the cable cover with the screws on each ALPHA
SCORE panel and then attach the cable duct to hide the
at control cable behind the panels.
Note: for wall mounting use the pear-shaped holes on each panel (C).
Flange
Threaded rod
Cable cover
D
Flat cable duct
A
B
Attachment of ALPHA panel
on TIMER panel
C
Pear-shaped hole for wall mounting
with screws and plugs Ø8
R4,50
73
121
B
560560 690
160
32,5
MASTER panel
TIMER panel
HOME SCORE panel
A
C
683567 567
2400
1875
25,5
D
