4
III - Attaching the support to the ground
Jigs are supplied upon request with each support system to help in positioning the posts.

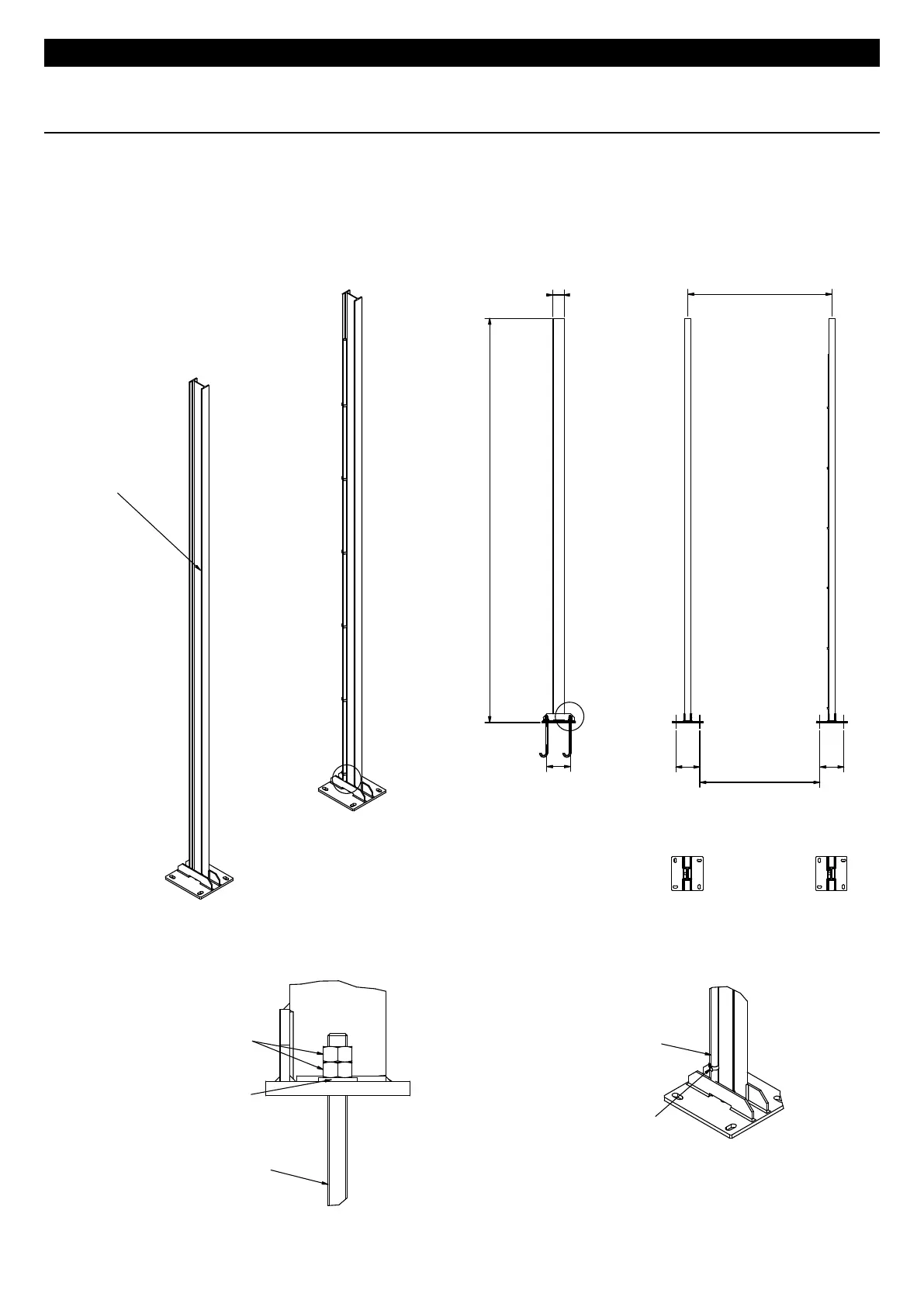

A/ Type A support (ref. 915170)
• Pour two blocks of concrete for the two posts with the help of the jigs (915191).
• Seal the 8 anchor bolts (915178) in each block (4 anchors per block) and then tighten the nuts.
Make sure you carefully check the spacing and height of the anchor bolts.
The volume of the blocks is to be calculated in accordance with the nature of the terrain and the wind exposure of the
board.
Nut HU M16
Bent anchor bolt M16
A
Flat washer M16
B
Rigid insulating tube and clips
to be assembled on site
Rigid insulating PVCtube Ø20
Plate edge clips
1000
200 200
Upright post
B
3365
A
220
