8

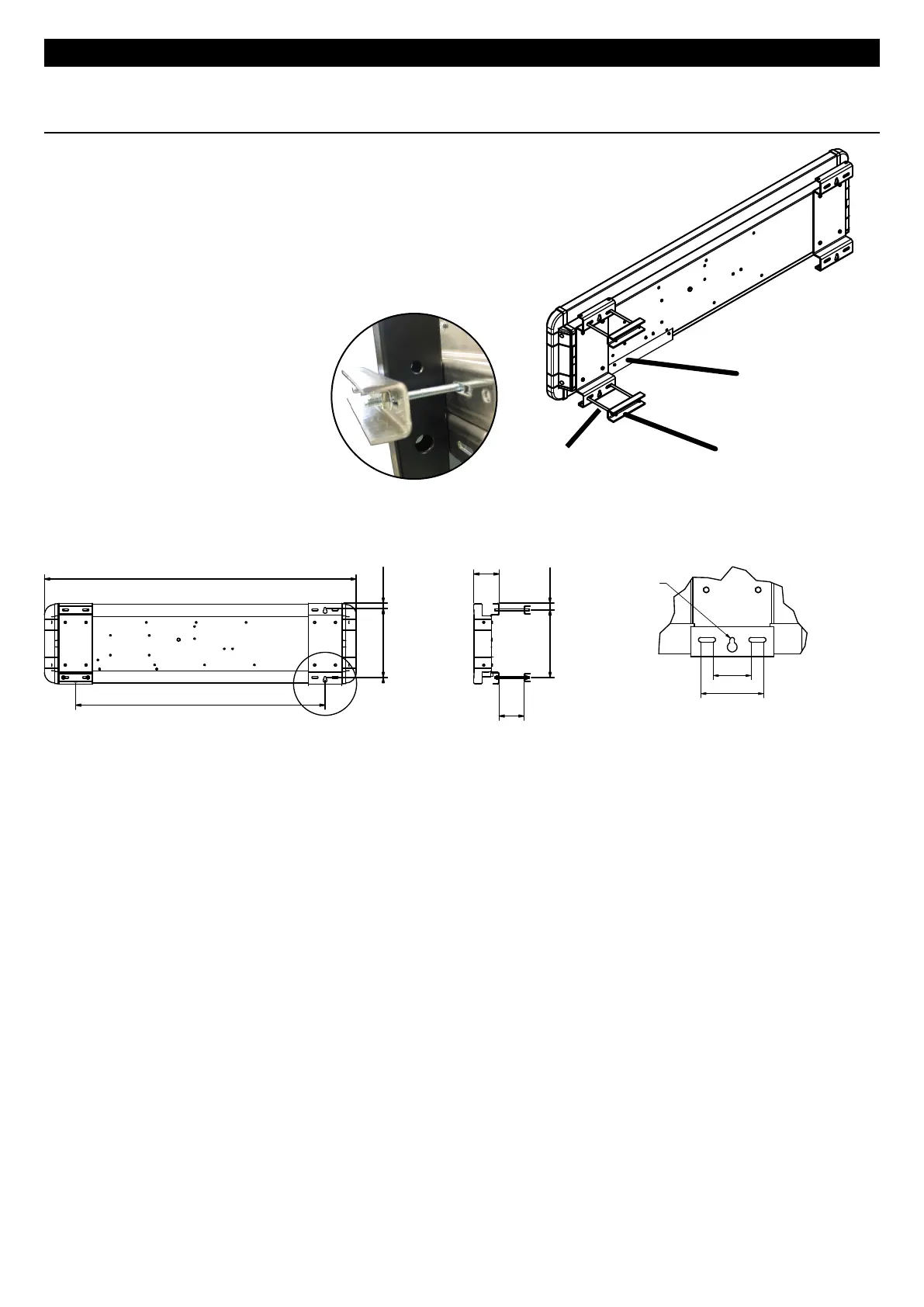

III - Attaching the board on the support
The assembly diers according to the board to be installed.
A/ BT 2025 SCORE (ref. 915140 and 915141)
• Attach the SCORE panel on the 2 posts with the 4
clamps and the threaded rods (B).
• Connect the wires (see paragraph VII - A).
Note: for wall mounting use the pear-shaped holes on each panel (A).
A
Pear-shaped hole for wall mounting
with screws and plugs Ø8
R4,50
76
118
325
32,5
122
120 maxi
25,5
332
1500
A
1200
SCORE panel
B
Flange
Threaded rod
Cable cover
